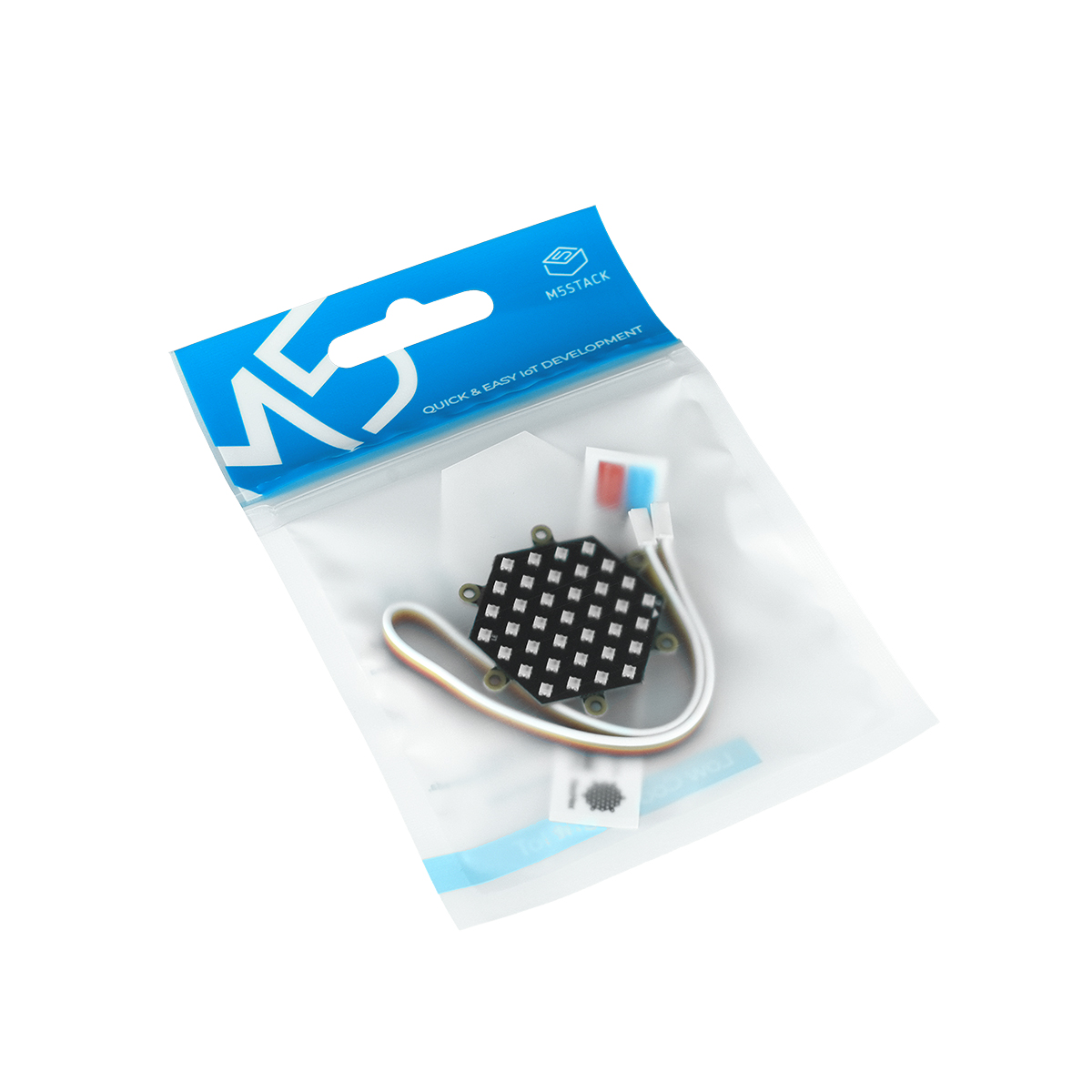

NeoHEX is a hexagonal board with 37 RGB LED flexible beads and will be sure to 'WOW' plenty. Use single BUS control, and support multiple boards connecting. Two sets of different angle input connectors are provided for independent power supply + signal control. External structure with fixing ears for easy installation. With its opal light sheet, the diffusion creates a gentle glow and provides innovative solutions to transform your living spaces into unique pieces of functional art.
|LED Bead Model||WS2812C-2020-V1|
|Number of light beads||37|
|Voltage supply||3.7 ~ 5.3V|
|Logic input level||-0.3V ~ VDD+0.7|
|Output/output interface||HY2.0-4P interface: 2x input (signal, power), 1x output (extension)|
|Refresh Rate||30 frames (1024 cascades)|
|Power consumption||Actual measurement of power consumption (37 lights are fully lit, brightness 100%)：
|Adjustable brightness||Level 256|
|Support Colors||16777216 kinds of colors|
|Fixing hole diameter||2mm|
Different M5 main control in the USB power supply conditions of the light board drive for reference.
|Unit NeoHEX||/||Data Pin||5V||GND|
