RFID2

SKU:U031-B

Description

RFID2 is a radio frequency identification unit. Built-in WS1850S chip, working frequency is 13.56MHz. Supports reading card, writing card, recognition, recording, and encoding RF card Multiple functions such as authorization and authorization. Use magnetic field induction technology to realize non-contact two-way information interaction, read and verify the information of proximity cards. It can be used in access control systems, check-in systems, warehouse goods entry and storage, and community vehicle entry and exit registration needs Application scenarios for information verification.

RFID2 compared to the previous generation RFID UNIT only makes the replacement of read and write IC (RC522->WS1850S), there is no difference in function.

Product Features

  • Operating frequency: 13.56 MHz
  • I2C data rate: Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s
  • Transceiver buffer: 64 bytes
  • Supported protocols: ISO14443A, MIFARE and NTAG
  • Working temperature: -20℃-85℃
  • Data storage:> 10 years
  • Reading distance: <20 mm
  • Development platform: Arduino, UIFlow(Blockly, Python)
  • 2x LEGO compatible holes

Include

  • 1x RFID Unit
  • 1x HY2.0-4P cable

Applications

  • Smart home access control system
  • Vehicle management
  • Smart transportation
  • Smart bookshelf

Specifications

Resources Parameter
Read and Write IC WS1850S
Operating frequency 13.56MHz
Communication protocol I2C: 0x28
Support protocol ISO/IEC 14443 Type A/Type B protocol

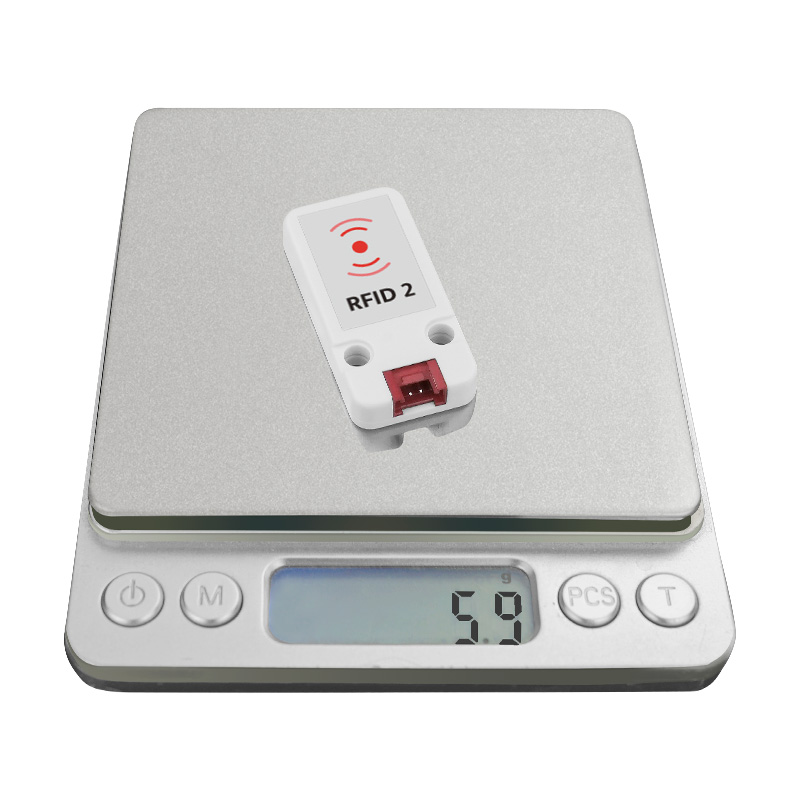

Net weight 6g
Gross weight 21g
Product size 48 * 24 * 8mm

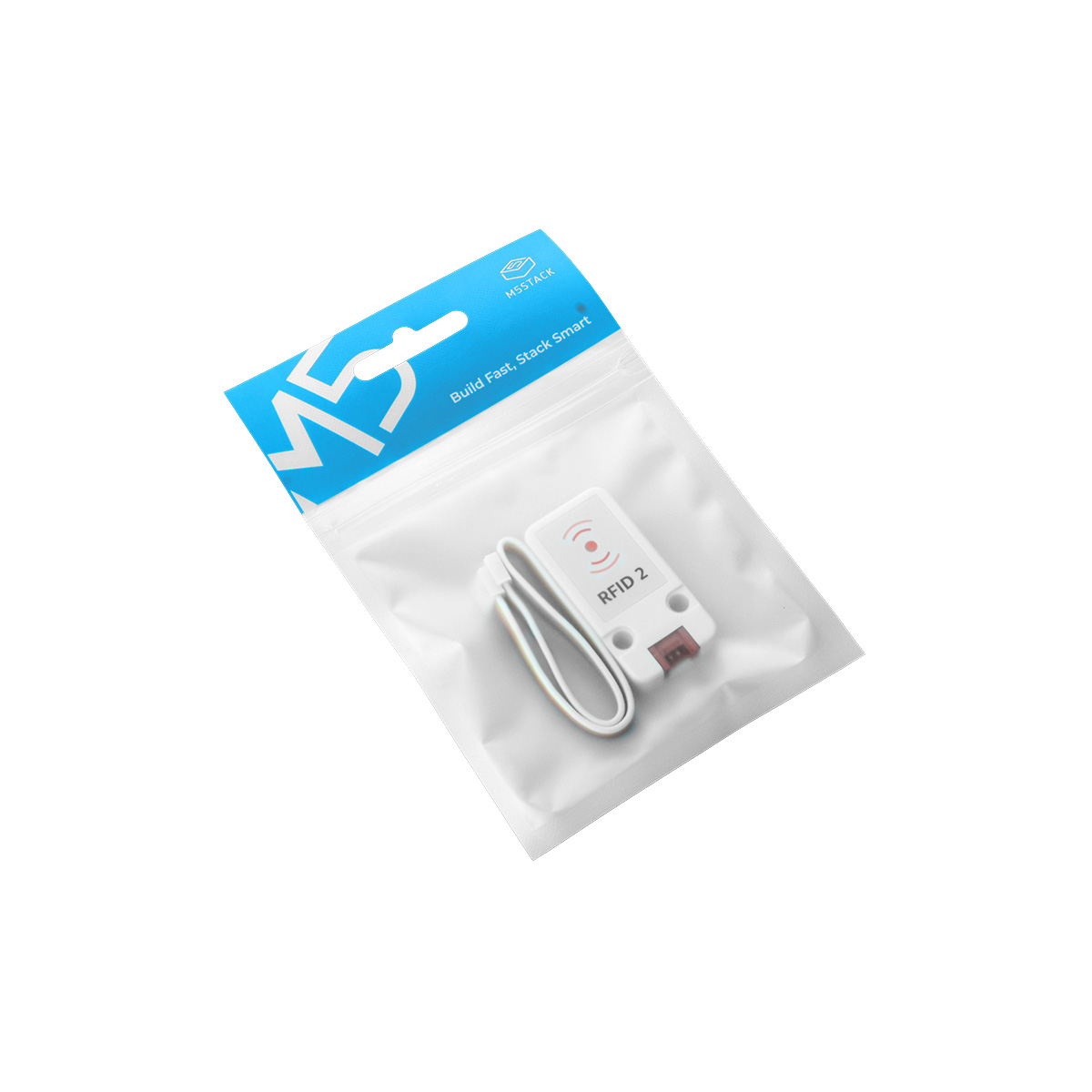

Packing size 67 * 53 * 12mm

EasyLoader

Click to download EasyLoader

1.EasyLoader is a simple and fast program burner. The EasyLoader in each product page provides a product-related case program, which can be burned to the main control through simple steps, and a series of functional verifications can be carried out .

  1. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, and click "Burn" to start burning. (When burning for M5StickC, please Set the baud rate to 750,000 or 115200)
  1. At present, EasyLoader is only applicable to Windows operating system, compatible with M5 system and uses ESP32 as the control core host. You need to install the CP210X driver before burning for M5Core (if you use M5StickC as the controller, you don’t need to install it) [click here to view Driver installation tutorial](/en/related_documents/M5Burner#Install the serial port driver)

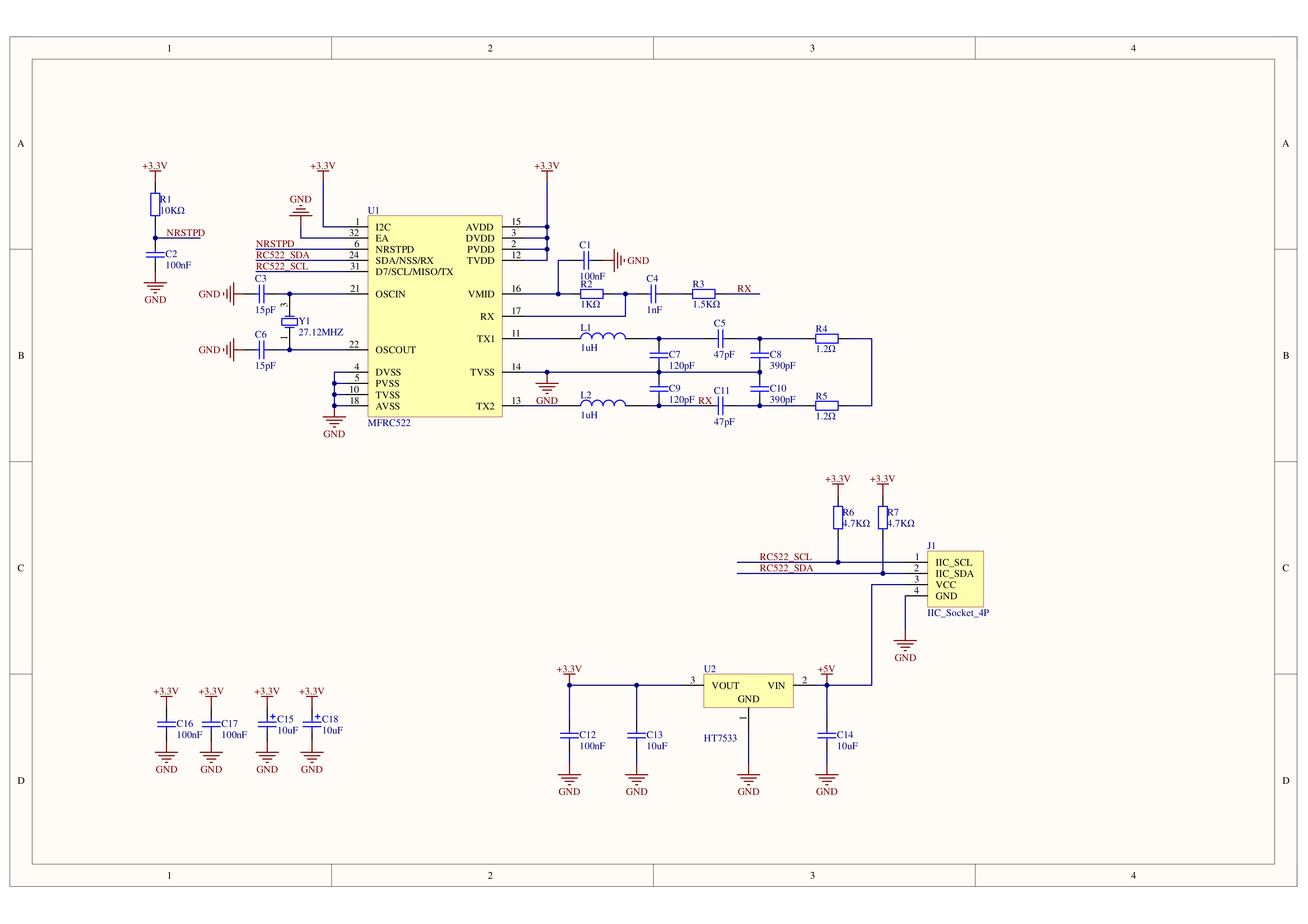

Pin mapping

M5Core(PORT A) GPIO22 GPIO21 5V GND
RFID Unit SCL SDA 5V GND

Learn

Multi function AI punch the clock base on M5Stack Multi function AI punch the clock base on M5Stack
Multi function AI punch the clock base on M5Stack
Realize the "offline cloud platform" interaction function of operation information based on mqtt information transmission technology
SEAM [Safe-Entry Access Machine] SEAM [Safe-Entry Access Machine]
SEAM [Safe-Entry Access Machine]
An automatic system to perform the tasks of Safe Entry. It consist an adjustable Thermometer, RFID / QR Code Check in and Counting.

Example

Arduino

Please click here to download the Arduino example

After burning the routine RFID.ino, when the device is running. Use an IC card or mobile phone NFC to place it on the RFID Unit. The ID information will be printed out on the M5Core screen.

UIFlow

Function Description

  • read string from addr Read data from address

  • write to addr Write data to address

  • card near RFID card close to return 1

  • card uid Return the UID of the RFID card

Usage example

Please click here to download UIFlow

Use UIFlow to download the case program to M5Core and place the proximity card on the RFID Unit. The M5Core screen will display and print its corresponding ID information.

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q11: The control RGB LED pin of FACE II BOTTOM conflicts with the I2S DOUT pin of CORE2

FACE II BOTTOM NOT CORE2 COMPATIBLE
