Unit RFID / RFID2 Arduino Tutorial

1.Preparation

Environment setup: Refer to Arduino IDE Getting Started Guide to complete the IDE installation. Then install the corresponding board package and required driver libraries according to the development board you are using.
Required libraries:
Required hardware products:
- Basic v2.7
- Unit RFID2 or Unit RFID

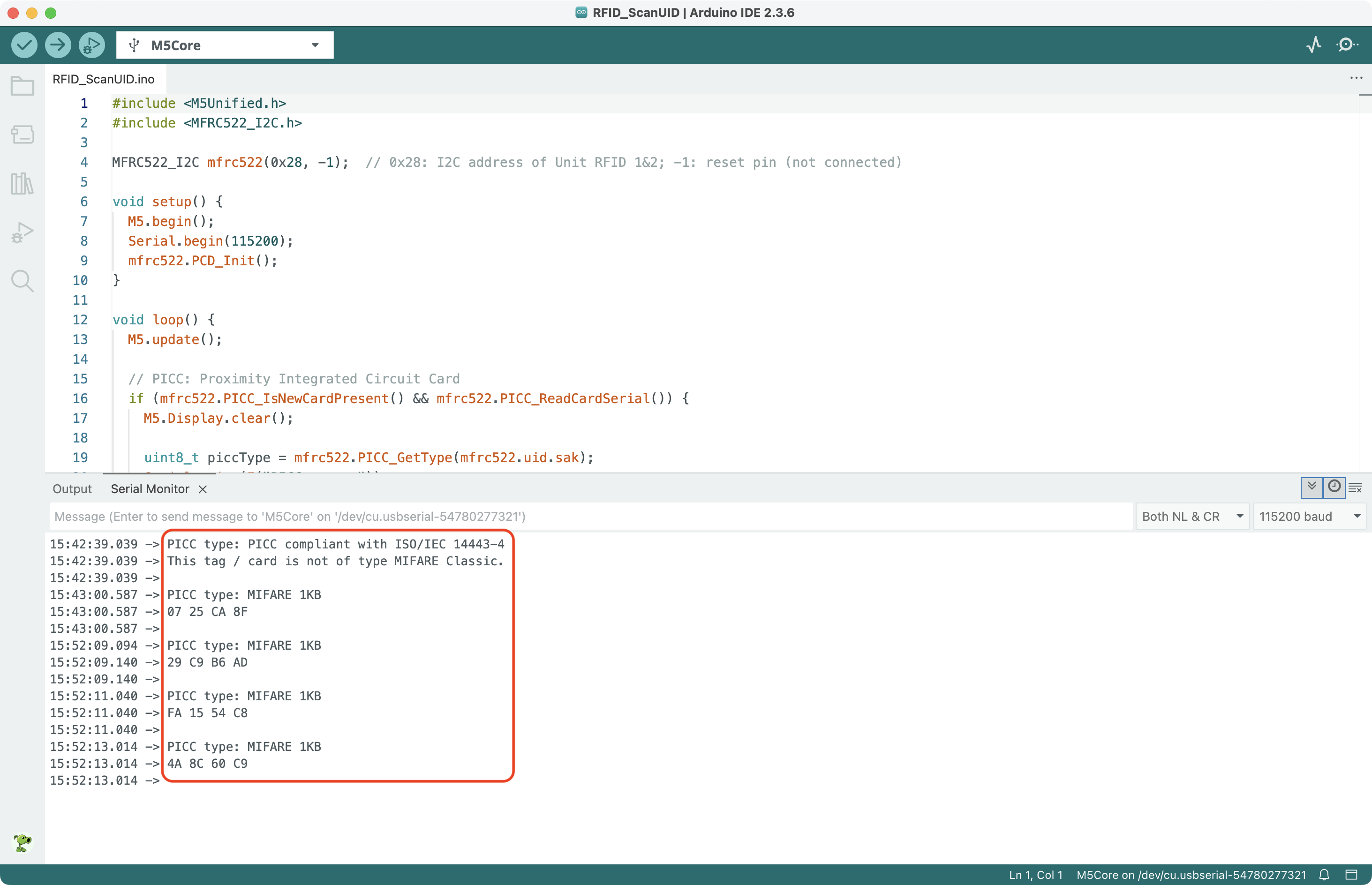

2.UID Reading Example

Compilation Requirements

M5Stack board manager version >= 3.2.2
M5Unified library version >= 0.2.8
M5GFX library version >= 0.2.11
MFRC522_I2C library version >= 1.0

cpp
#include <M5Unified.h>
#include <MFRC522_I2C.h>

MFRC522_I2C mfrc522(0x28, -1);  // 0x28: I2C address of Unit RFID / RFID2; -1: reset pin (not connected)

void setup() {
  M5.begin();
  Serial.begin(115200);
  mfrc522.PCD_Init();
}

void loop() {
  M5.update();

  // PICC: Proximity Integrated Circuit Card
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
    M5.Display.clear();

    uint8_t piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
    Serial.print(F("PICC type: "));
    Serial.println(mfrc522.PICC_GetTypeName(piccType));

    // Check if the tag / card is of type MIFARE Classic
    if (piccType != MFRC522_I2C::PICC_TYPE_MIFARE_MINI
        && piccType != MFRC522_I2C::PICC_TYPE_MIFARE_1K
        && piccType != MFRC522_I2C::PICC_TYPE_MIFARE_4K) {
      Serial.println(F("This tag / card is not of type MIFARE Classic.\n"));
      delay(500);
      return;
    }

    // Output the stored UID data
    for (byte i = 0; i < mfrc522.uid.size; i++) {
      Serial.printf("%02X ", mfrc522.uid.uidByte[i]);
    }
    Serial.println("\n");
    delay(500);
  }
}

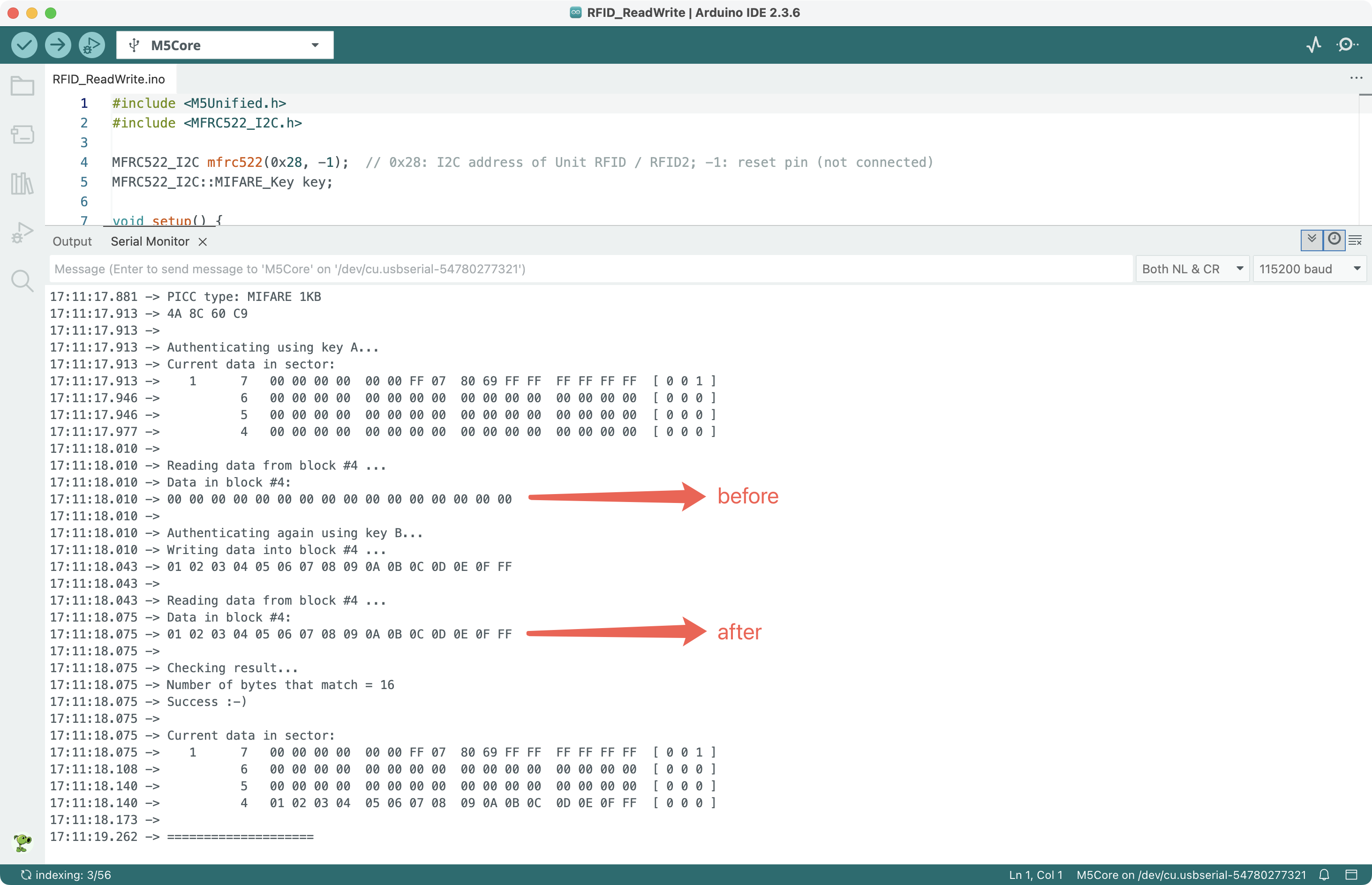

3.Card Read/Write Example

Compilation Requirements

M5Stack board manager version >= 3.2.2
M5Unified library version >= 0.2.8
M5GFX library version >= 0.2.11
MFRC522_I2C library version >= 1.0

cpp
#include <M5Unified.h>
#include <MFRC522_I2C.h>

MFRC522_I2C mfrc522(0x28, -1);  // 0x28: I2C address of Unit RFID / RFID2; -1: reset pin (not connected)
MFRC522_I2C::MIFARE_Key key;

void setup() {
  M5.begin();
  Serial.begin(115200);
  mfrc522.PCD_Init();

  // Prepare the key (used both as key A and as key B) with FFFFFFFFFFFFh,
  // which is the default at chip delivery from the factory.
  for (byte i = 0; i < 6; i++) {
    key.keyByte[i] = 0xFF;
  }
}

// Helper routine to dump a byte array as hex values to Serial.
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.printf("%02X ", buffer[i]);
  }
}

void loop() {
  M5.update();

  // PICC: Proximity Integrated Circuit Card
  if (mfrc522.PICC_IsNewCardPresent() && mfrc522.PICC_ReadCardSerial()) {
    M5.Display.clear();

    uint8_t piccType = mfrc522.PICC_GetType(mfrc522.uid.sak);
    Serial.print(F("PICC type: "));
    Serial.println(mfrc522.PICC_GetTypeName(piccType));

    // Check if the tag / card is of type MIFARE Classic
    if (piccType != MFRC522_I2C::PICC_TYPE_MIFARE_MINI
        && piccType != MFRC522_I2C::PICC_TYPE_MIFARE_1K
        && piccType != MFRC522_I2C::PICC_TYPE_MIFARE_4K) {
      Serial.println(F("This tag / card is not of type MIFARE Classic.\n"));
      delay(500);
      return;
    }

    // Output the stored UID data
    String uid = "";
    for (byte i = 0; i < mfrc522.uid.size; i++) {
      Serial.printf("%02X ", mfrc522.uid.uidByte[i]);
      uid += String(mfrc522.uid.uidByte[i], HEX);
    }
    Serial.println("\n");

    // mfrc522.PICC_DumpToSerial(&(mfrc522.uid));
    // Serial.println("\n");

    // In this example, we use the second sector (sector #1) including blocks #4, #5, #6, #7
    byte sector = 1;
    byte blockAddr = 4;
    byte trailerBlock = 7;
    byte dataBlock[] = {
      0x01, 0x02, 0x03, 0x04,  //  1,  2,  3,   4,
      0x05, 0x06, 0x07, 0x08,  //  5,  6,  7,   8,
      0x09, 0x0a, 0x0b, 0x0c,  //  9, 10, 11,  12,
      0x0d, 0x0e, 0x0f, 0xff   // 13, 14, 15, 255
    };
    MFRC522_I2C::StatusCode status;
    byte buffer[18];
    byte size = sizeof(buffer);

    // Authenticate using key A
    Serial.println(F("Authenticating using key A..."));
    status = (MFRC522_I2C::StatusCode)mfrc522.PCD_Authenticate(MFRC522_I2C::PICC_CMD_MF_AUTH_KEY_A, trailerBlock, &key, &(mfrc522.uid));
    if (status != MFRC522_I2C::STATUS_OK) {
      Serial.print(F("PCD_Authenticate() failed: "));
      Serial.println(mfrc522.GetStatusCodeName(status));
      return;
    }

    // Show the whole sector as it currently is
    Serial.println(F("Current data in sector: "));
    mfrc522.PICC_DumpMifareClassicSectorToSerial(&(mfrc522.uid), &key, sector);
    Serial.println("");

    // Read data from the block
    Serial.print(F("Reading data from block #"));
    Serial.print(blockAddr);
    Serial.println(F(" ..."));
    status = (MFRC522_I2C::StatusCode)mfrc522.MIFARE_Read(blockAddr, buffer, &size);
    if (status != MFRC522_I2C::STATUS_OK) {
      Serial.print(F("MIFARE_Read() failed: "));
      Serial.println(mfrc522.GetStatusCodeName(status));
    }
    Serial.print(F("Data in block #"));
    Serial.print(blockAddr);
    Serial.println(F(": "));
    dump_byte_array(buffer, 16);
    Serial.println("\n");

    // Authenticate using key B
    Serial.println(F("Authenticating again using key B..."));
    status = (MFRC522_I2C::StatusCode)mfrc522.PCD_Authenticate(MFRC522_I2C::PICC_CMD_MF_AUTH_KEY_B, trailerBlock, &key, &(mfrc522.uid));
    if (status != MFRC522_I2C::STATUS_OK) {
      Serial.print(F("PCD_Authenticate() failed: "));
      Serial.println(mfrc522.GetStatusCodeName(status));
      return;
    }

    // Write data to the block
    Serial.print(F("Writing data into block #"));
    Serial.print(blockAddr);
    Serial.println(F(" ..."));
    dump_byte_array(dataBlock, 16);
    Serial.println();
    status = (MFRC522_I2C::StatusCode)mfrc522.MIFARE_Write(blockAddr, dataBlock, 16);
    if (status != MFRC522_I2C::STATUS_OK) {
      Serial.print(F("MIFARE_Write() failed: "));
      Serial.println(mfrc522.GetStatusCodeName(status));
    }
    Serial.println("");

    // Read data from the block again, now it should be what we have written
    Serial.print(F("Reading data from block #"));
    Serial.print(blockAddr);
    Serial.println(F(" ..."));
    status = (MFRC522_I2C::StatusCode)mfrc522.MIFARE_Read(blockAddr, buffer, &size);
    if (status != MFRC522_I2C::STATUS_OK) {
      Serial.print(F("MIFARE_Read() failed: "));
      Serial.println(mfrc522.GetStatusCodeName(status));
    }
    Serial.print(F("Data in block #"));
    Serial.print(blockAddr);
    Serial.println(F(": "));
    dump_byte_array(buffer, 16);
    Serial.println("\n");

    // Check if the data in block is what we have written, by counting the number of bytes that are equal
    Serial.println(F("Checking result..."));
    byte count = 0;
    for (byte i = 0; i < 16; i++) {
      // Compare buffer (what we've read) with dataBlock (what we've written)
      if (buffer[i] == dataBlock[i]) {
        count++;
      }
    }
    Serial.print(F("Number of bytes that match = "));
    Serial.println(count);
    if (count == 16) {
      Serial.println(F("Success :-)"));
    } else {
      Serial.println(F("Failure, no match :-("));
      Serial.println(F("  perhaps the write didn't work properly..."));
    }
    Serial.println();

    // Dump the sector data
    Serial.println(F("Current data in sector: "));
    mfrc522.PICC_DumpMifareClassicSectorToSerial(&(mfrc522.uid), &key, sector);
    Serial.println("");

    // Halt PICC
    mfrc522.PICC_HaltA();
    // Stop encryption on PCD
    mfrc522.PCD_StopCrypto1();

    Serial.println("====================");
  }
}

This program reads the data from Block 4 in Sector 1 after completing Key A authentication, and then modifies the data of Block 4 in Sector 1 after completing Key B authentication. During this process, the tag / card must remain close to Unit RFID2. The program output is as follows:

4.Init API

Below are usage notes for the common APIs. A typical flow for reading / writing a MIFARE card is:

Initialize RFID
Detect the presence of a new card and obtain the card UID (Unique Identifier)
Select the card by UID to enter the active state
Unlock the target Block using Key A or Key B
Read / Write data
Set the card to the sleep state

Operation return status codes

cpp
enum StatusCode {
    STATUS_OK             = 1,  // Success
    STATUS_ERROR          = 2,  // Error in communication
    STATUS_COLLISION      = 3,  // Collision detected
    STATUS_TIMEOUT        = 4,  // Timeout in communication
    STATUS_NO_ROOM        = 5,  // The buffer is not big enough
    STATUS_INTERNAL_ERROR = 6,  // Internal error in the code. Should not happen ;-)
    STATUS_INVALID        = 7,  // Invalid argument
    STATUS_CRC_WRONG      = 8,  // The CRC_A does not match
    STATUS_MIFARE_NACK    = 9   // The MIFARE PICC responded with NAK
};

Instantiation

Function Prototype:

MFRC522_I2C(byte chipAddress, byte resetPowerDownPin);

Description:

Create an RFID instance

Input parameters:

byte chipAddress
- I2C address of the module (0x28)
byte resetPowerDownPin
- Reset pin of the module connected to the main controller. Since it is not connected, set to -1

Return value:

An object of the MFRC522_I2C class

PCD_Init

Function prototype:

void PCD_Init();

Function Description:

Initialize the reader/writer

Input Parameters:

null

Return Value:

null

PICC_IsNewCardPresent

Function Prototype:

bool PICC_IsNewCardPresent();

Description:

Scan to check whether there is a card that has not been detected yet and is in the IDLE state. Cards in the HALT state will be ignored.

Input Parameters:

null

Return Value:

bool
- true: A new card was detected
- false: No new card was detected

PICC_ReadCardSerial

Function Prototype:

bool PICC_ReadCardSerial();

Description:

Read the card UID. After a successful read, the UID can be accessed from the class member Uid uid;. Before performing the read operation, you must call PICC_IsNewCardPresent(), PICC_RequestA(), or PICC_WakeupA() to ensure a card is detected.

cpp
for (byte i = 0; i < mfrc522.uid.size; i++) {
  Serial.printf("%02X ", mfrc522.uid.uidByte[i]);
}

Input Parameters:

null

Return Value:

bool
- true: Read successful
- false: Read failed

PICC_RequestA

Function Prototype:

uint8_t PICC_RequestA(uint8_t *bufferATQA, uint8_t *bufferSize);

Description:

Scan and detect Type A standard cards within reading range.

Input Parameters:

uint8_t *bufferATQA
- Buffer to store the ATQA (Answer To Request) response.
uint8_t *bufferSize
- Length of the buffer (>2 byte).

Return Value:

uint8_t
- StatusCode

PICC_WakeupA

Function Prototype:

uint8_t PICC_WakeupA(uint8_t *bufferATQA, uint8_t *bufferSize);

Description:

Wake up Type A standard cards within range.

Input Parameters:

uint8_t *bufferATQA
- Buffer to store the ATQA (Answer To Request) response.
uint8_t *bufferSize
- Length of the buffer (>2 byte).

Return Value:

uint8_t
- StatusCode

PICC_Select

Function Prototype:

uint8_t PICC_Select(Uid *uid, uint8_t validBits = 0);

Description:

Select a card by UID and set it to the active state.

Input Parameters:

Uid *uid
- Pointer to the UID structure obtained by scanning the card.
uint8_t validBits
- Number of valid bits in the last uint8_t; 0 means all 8 bits are valid.

Return Value:

uint8_t
- StatusCode

PICC_HaltA

Function Prototype:

uint8_t PICC_HaltA();

Description:

Put the currently selected card into the sleep state.

Input Parameters:

null

Return Value:

uint8_t
- StatusCode

5.MIFARE API

PCD_Authenticate

Function Prototype:

uint8_t PCD_Authenticate(uint8_t command, uint8_t blockAddr, MIFARE_Key *key, Uid *uid);

Description:

Perform MIFARE authentication. Before calling this function, the card must be selected to enter the active state. After communication with the authenticated PICC is completed, you must call PCD_StopCrypto1(); otherwise, new communication cannot be started.

Input Parameters:

uint8_t command
- PICC_CMD_MF_AUTH_KEY_A
- PICC_CMD_MF_AUTH_KEY_B
uint8_t blockAddr
- Block address
MIFARE_Key *key
- By default, both Key A and Key B are set to FFFFFFFFFFFF
Uid *uid

Return Value:

uint8_t
- StatusCode

PCD_StopCrypto1

Function Prototype:

void PCD_StopCrypto1();

Description:

Exit the authentication state of the PCD. After communication with the authenticated PICC is completed, you must call PCD_StopCrypto1(); otherwise, new communication cannot be started.

Input Parameters:

null

Return Value:

null

MIFARE_Read

Function Prototype:

uint8_t MIFARE_Read(uint8_t blockAddr, uint8_t *buffer, uint8_t *bufferSize);

Description:

Read data from the specified blockAddr.

Input Parameters:

uint8_t blockAddr
- Block address in the actual card sector.
uint8_t *buffer
- Pointer to the buffer for receiving data.
uint8_t *bufferSize
- Length of the buffer for receiving data (>= 18 byte).

Return Value:

uint8_t
- StatusCode

MIFARE_Write

Function Prototype:

uint8_t MIFARE_Write(uint8_t blockAddr, uint8_t *buffer, uint8_t bufferSize);

Description:

Write data to the specified blockAddr.

Input Parameters:

uint8_t blockAddr
- Block address in the actual card sector.
uint8_t *buffer
- Pointer to the buffer containing the data to be written.
uint8_t *bufferSize
- Length of the buffer for writing data (16 byte).

Return Value:

uint8_t
- StatusCode

6.Reference Links

For more related APIs, please refer to the MFRC522_I2C library
ISO/IEC 14443 - Wikipedia
MFRC522 - NXP Docs (Standard performance MIFARE and NTAG frontend)
MFRC523 - NXP Docs (Standard performance ISO/IEC 14443 A/B frontend)
MIFARE Classic EV1 1K - NXP Docs
MIFARE Classic EV1 4K - NXP Docs
AN1305 - NXP Docs (MIFARE Classic as NFC Type MIFARE Classic Tag)
AN10833 - NXP Docs (MIFARE type identification procedure)
AN10834 - NXP Docs (MIFARE ISO/IEC 14443 PICC selection)

Next 1. Arduino Setup - 1. Arduino IDE Install

1. Arduino Setup

2. Devices & Examples

Tab5

Basic/Gray

M5GO

Fire

Core2/Core2 For AWS

CoreS3

Tough

Atom-Lite / Atom-Matrix

AtomS3 / AtomS3-Lite

Dial

Air Quality

DinMeter

Capsule

Cardputer / -Adv

Paper

PaperS3

CoreInk

Station Bat/485

StickC

StickC-Plus

StickC-Plus2

StamPLC

TimerCamera

Unit CamS3-5MP

3. M5Unified

M5Unified Setup

M5Unified API

4. M5GFX

M5GFX API

5. Extensions

Unit

Module

Atomic

Atom DTU

Hat

Base

Cap

IoT

6. Applications

AWS IoT Core

Unit RFID / RFID2 Arduino Tutorial

1.Preparation

2.UID Reading Example

3.Card Read/Write Example

4.Init API

Instantiation

PCD_Init

PICC_IsNewCardPresent

PICC_ReadCardSerial

PICC_RequestA

PICC_WakeupA

PICC_Select

PICC_HaltA

5.MIFARE API

PCD_Authenticate

PCD_StopCrypto1

MIFARE_Read

MIFARE_Write

6.Reference Links

On This Page
