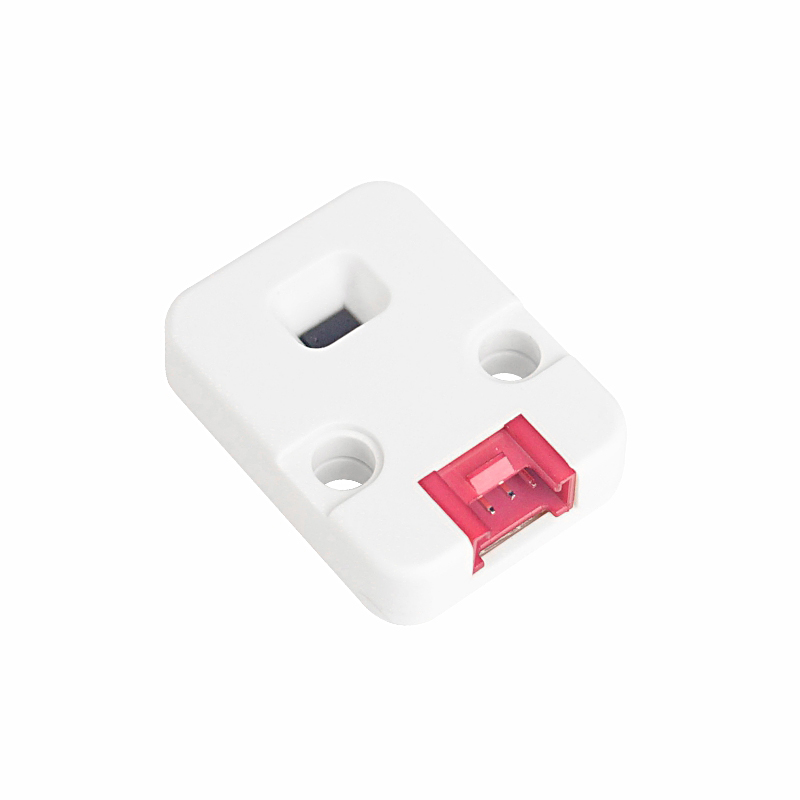

ToF

SKU:U010

Description

ToF that employs time-of-flight techniques to resolve distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.

This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

This unit communicates with M5Core via I2C(0x29).

  • In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.

Product Features

  • High precision
  • Measure absolute distances up to 2m
  • Measurement accuracy ±3%
  • The wavelength of laser: 940nm
  • Program Platform: Arduino, UIFlow(Blockly, Python)
  • Two Lego-compatible holes

Include

  • 1x ToF Unit
  • 1x Grove Cable

Applications

  • 1D gesture recognition
  • Laser Ranging
  • 3D structured light imaging(3D sensing)
  • Camera assist (ultra fast autofocus and depth of field)

Specification

Resources Parameter
Measuring distance 0.3-2m
Measurement accuracy ±3%

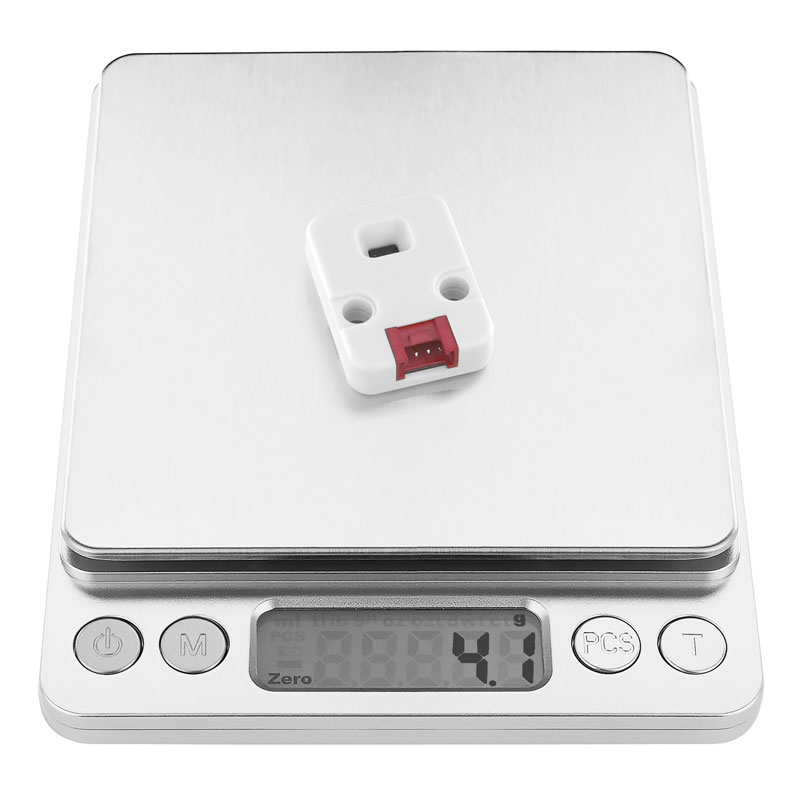

Net weight 4g
Gross weight 17g
Product Size 32*24*8mm
Package Size 67*53*12mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
The screen displays the current ranging data.

Schematic

ToF Schematic

PinMap

M5Core(GROVE A)GPIO22GPIO215VGND
ToF UnitSCLSDA5VGND

Learn

Control sit/stand Desk height with a Paper E-Ink Display
Control IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
Control sit/stand Desk height with a touch screen
Control IKEA Bekant Desk sit/stand height with M5Stack Core2 using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
M5Stack Based PID Control Learning Platform
The PID Control Learning Platform is based on an M5Stack Fire & BaseX with TOF and Accel Units, and some Lego NXT parts.
Q-Bot
We aim to build a robot that is effective in sanitizing surfaces without putting cleaners in harm's way.
3 in 1 Sanitiser Dispenser
We have devised with an innovation that dispenses hand sanitiser, measures the temperature of user, shows the count of people in vicinity.
Hand Hygienics
Hand Hygienics aims to reduce spread of Covid-19 through contact.
SEAM [Safe-Entry Access Machine]
An automatic system to perform the tasks of Safe Entry. It consist an adjustable Thermometer, RFID / QR Code Check in and Counting.

Example

Arduino

UIFlow

Feature Introduction

Measuring distance up to 2 meters

  • Get distance Return distance mm

Usage

Last updated: 2020-12-14
