M5Stick
SKU: K016
Description
M5Stick is a compact IoT development board. It integrates the ESP32 chip, featuring Wi-Fi capabilities and an IMU motion sensor, making it a reliable hardware platform for both programming education and project development.
What can it do? This small development tool can inspire endless creative possibilities. M5Stick can help quickly prototype IoT products, simplifying the entire development process. Even beginners in programming can use it to build interesting applications and apply them in real-life scenarios.
M5Stick is one of the core devices in the M5Stack product series, which is built on a growing ecosystem of hardware and software. It offers numerous compatible expansion modules, rich open-source code, and an active community forum, providing strong support during the development process.
Features
- Based on ESP32 development
- 9-axis motion sensor (only available in the gray version)
- Built-in LED
- Integrated buzzer
- Integrated infrared transmitter
- Customizable button, OLED (1.3-inch), power/reset button x1
- Built-in lithium battery
- Grove interface
- Wearable & mountable
- Development platforms: UIFlow , MicroPython , Arduino
Includes
- 1 x M5Stick
- 1 x USB Type-C (20cm)
Applications
- IoT controller
- STEM education
- DIY projects
- Smart home devices
Specifications
| Main Resources | Parameters |
|---|---|
| ESP32 | 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 4MB Flash |
| Input Voltage | 5V @ 500mA |
| Interfaces | TypeC x 1, GROVE (I2C+I/O+UART) x 1 |
| OLED Screen | 1.3-inch, 64 x 128, SH1107 |
| Buzzer | Active buzzer x 1 |
| Button | Custom button x 1 |
| LED | Blue LED x 1 |
| IR | Infrared transmitter x 1 |
| MEMS | MPU9250 (gray version) |
| Battery | 80 mAh @ 3.7V, internal |
| Antenna | 2.4G 3D antenna |
| Operating Temp | 0 ~ 60°C |
| Net Weight | 14g |
| Gross Weight | 65g |
| Product Size | 48.2 x 25.5 x 13.7mm |
| Package Size | 85 x 55 x 31mm |
| Case Material | Plastic (PC) |
Learn
Power On/Off:
- Power On: Press the reset button, single click
- Power Off: Press the reset button, double click
Button Instructions
The image below shows the position of Button A and mounting holes

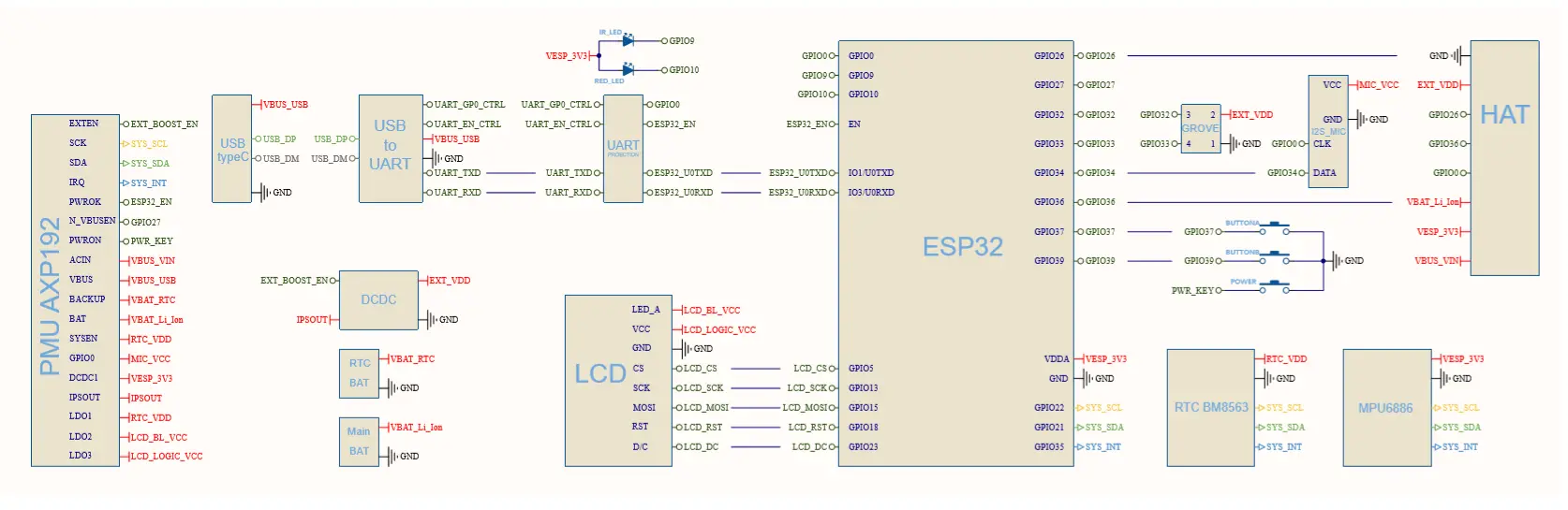

Schematics
EspCore-schematic . Power-schematic . UsbUART-schematic .
PinMap
Blue LED & Button BUTTON & Buzzer BUZZER & Infrared Transmitter IR
| ESP32 Chip | GPIO17 | GPIO19 | GPIO26 | GPIO35 |
|---|---|---|---|---|
| IR Transmitter | Transmitter Pin | |||
| Blue LED | LED Pin | |||
| Buzzer BUZZER | Buzzer Pin | |||
| Button BUTTON | Button Pin |
OLED Screen
| ESP32 Chip | GPIO14 | GPIO27 | GPIO33 | GPIO18 | GPIO23 |
|---|---|---|---|---|---|
| OLED Screen | CS | DC | RST | D0 | D1 |
GROVE Interface
| ESP32 Chip | GPIO13 | GPIO25 | 5V | GND |
|---|---|---|---|---|
| GROVE | SCL | SDA | 5V | GND |
IP5306 Charge/Discharge Voltage Parameters
| Charge | Discharge |
|---|---|
| 0.00 ~ 3.40V -> 0% | 4.20 ~ 4.07V -> 100% |
| 3.40 ~ 3.61V -> 25% | 4.07 ~ 3.81V -> 75% |
| 3.61 ~ 3.88V -> 50% | 3.81 ~ 3.55V -> 50% |
| 3.88 ~ 4.12V -> 75% | 3.55 ~ 3.33V -> 25% |
| 4.12 ~ / -> 100% | 3.33 ~ 0.00V -> 0% |
Gray Version:
| ESP32 Chip | GPIO22 | GPIO21 |
|---|---|---|
| 9-axis IMU MPU9250 | SCL | SDA |
Gray Version:
- Some accessories: WATCH BELT, WALL, and BRICK
Datasheets
Softwares
Arduino
UIFlow
Easyloader
EasyLoader is a simple and fast program burner that includes a product-related example program. By following simple steps to burn it into the main controller, you can perform a series of functional verifications.
Video
- M5Stick Factory Example
Screen, LED, IR, Buzzer, and Button Test. Click Button A to display "helloworld" on the screen.
