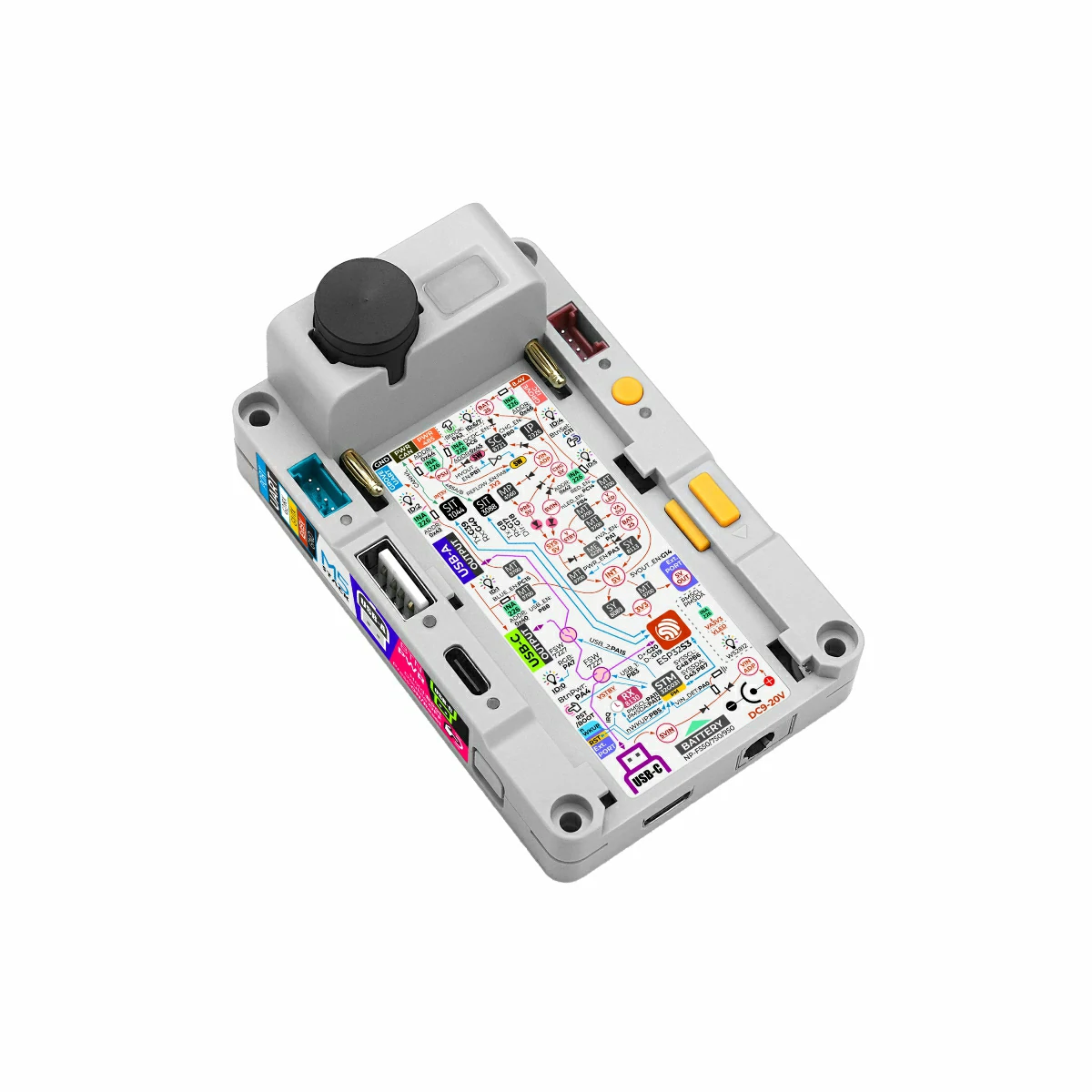

PowerHub
SKU:C148/K148
Description
PowerHub is a programmable controller integrating multi-channel power management. It adopts the ESP32-S3-WROOM-1U-N16R8 main control module equipped with a dual-core Xtensa LX7 processor (up to 240MHz), supporting 2.4 GHz Wi-Fi, with 16MB Flash and 8MB PSRAM onboard. A built-in STM32G031G8U6 coprocessor, combined with multiple INA226 voltage/current detection ICs and electronic switch design, enables precise management of power states for multiple expansion interfaces, achieving accurate power consumption control and providing low-power wake-up functionality for the whole device. The USB Type-C port can be used for program download and USB OTG functions. Inside, a USB interface switch allows the bottom USB port to be switched to the front USB Type-A or USB Type-C interface for convenient expansion of USB peripherals. The device features an efficient power management system, supporting multiple power supply modes (DC power + 2S battery power + PWR485/PWR CAN input power). It is equipped with 2x HY2.0-4P Grove ports, RS485, and CAN communication interfaces, facilitating connections to various sensors and industrial control devices. Suitable for industrial automation control, smart home, and other scenarios, it provides developers with stable and reliable IoT solutions.
Tutorial

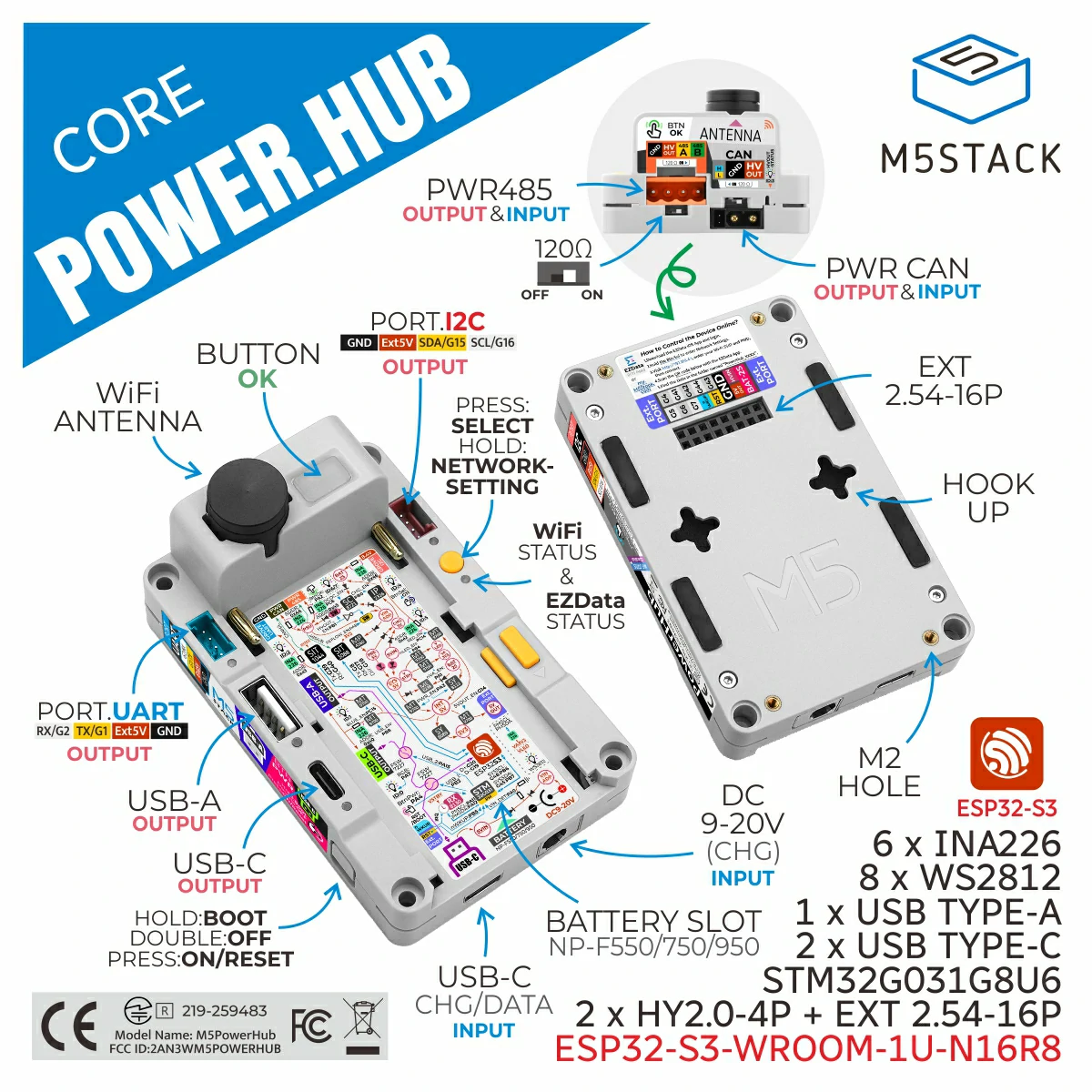

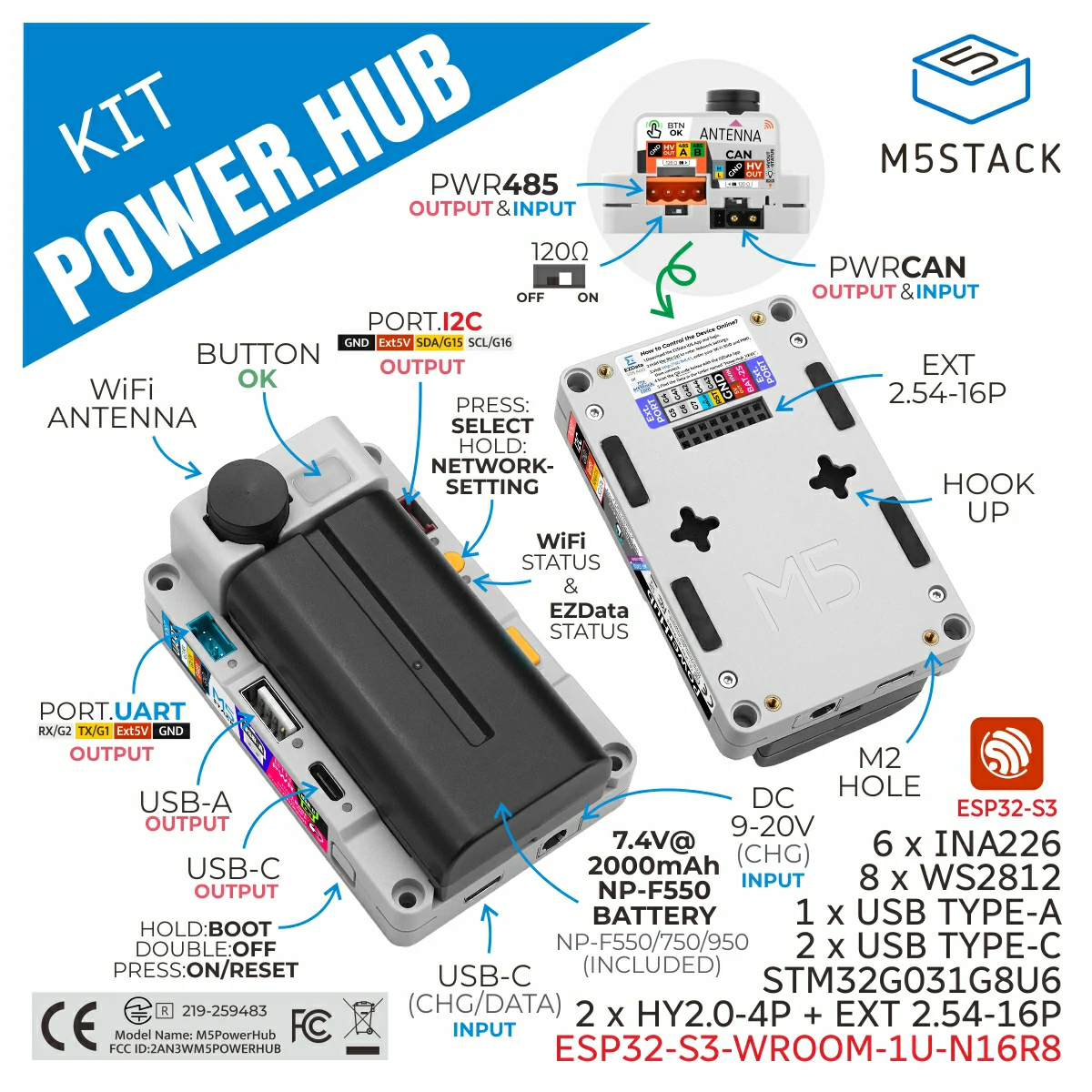

Features
ESP32-S3-WROOM-1U-N16R8 main control core
Supports low-power timed wake-up

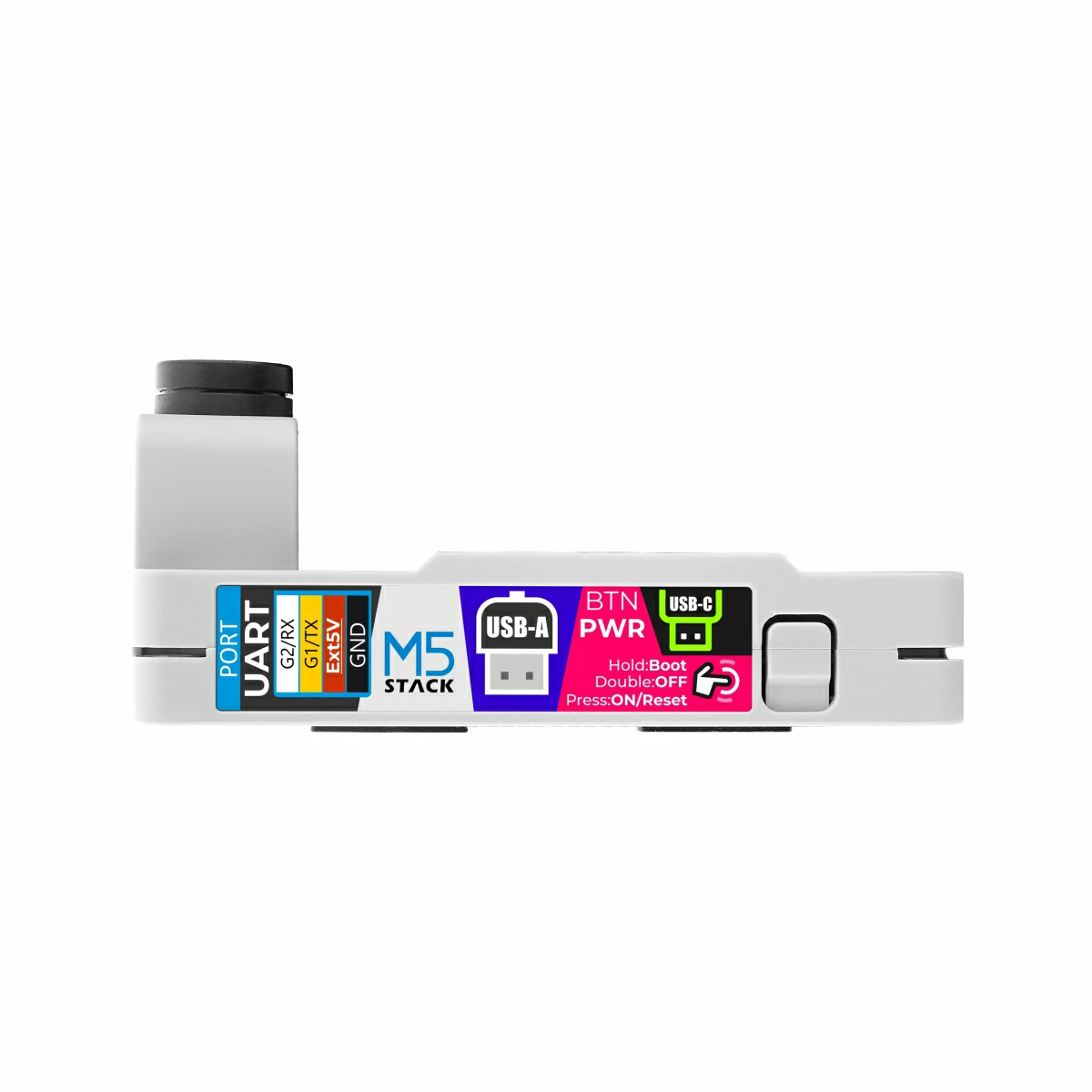

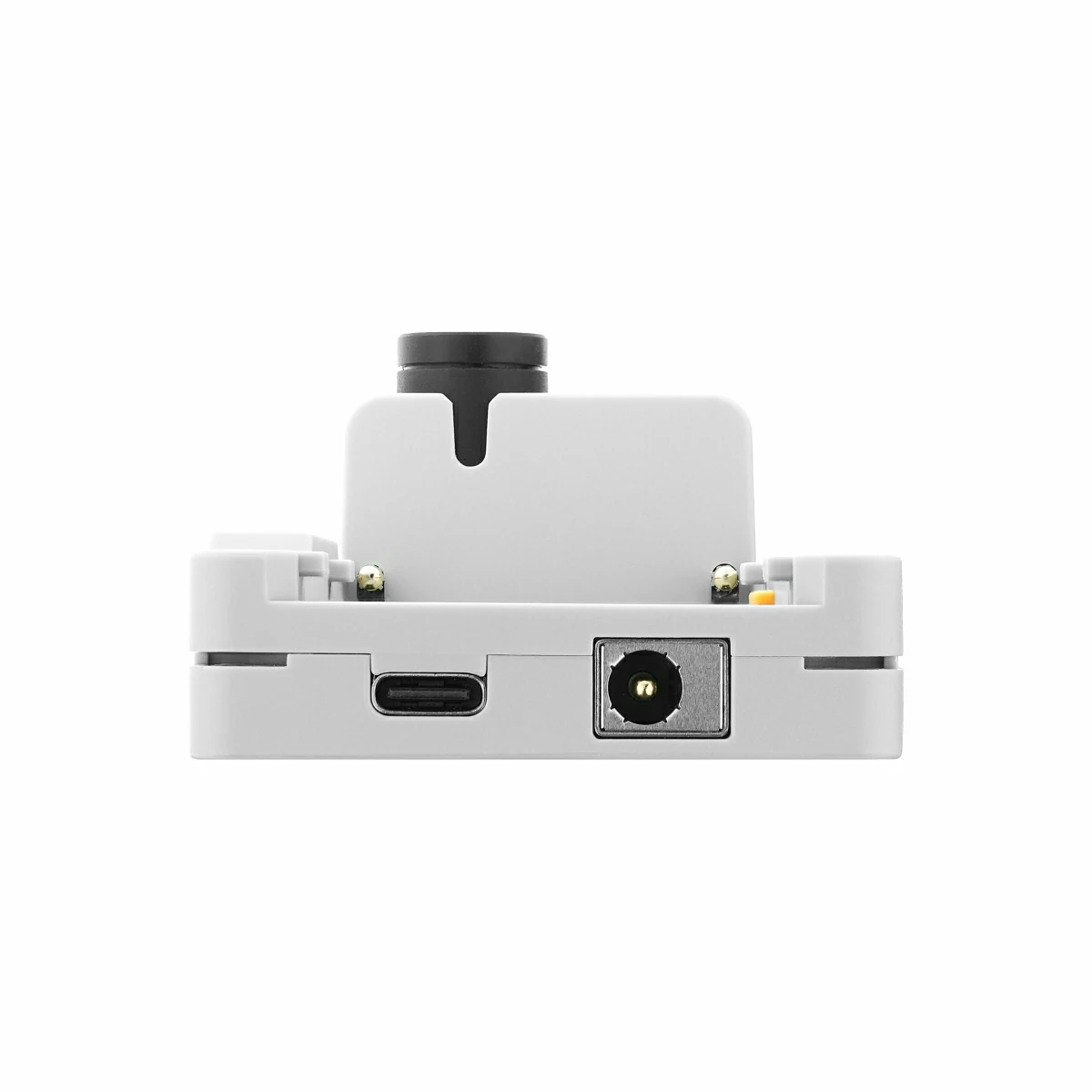

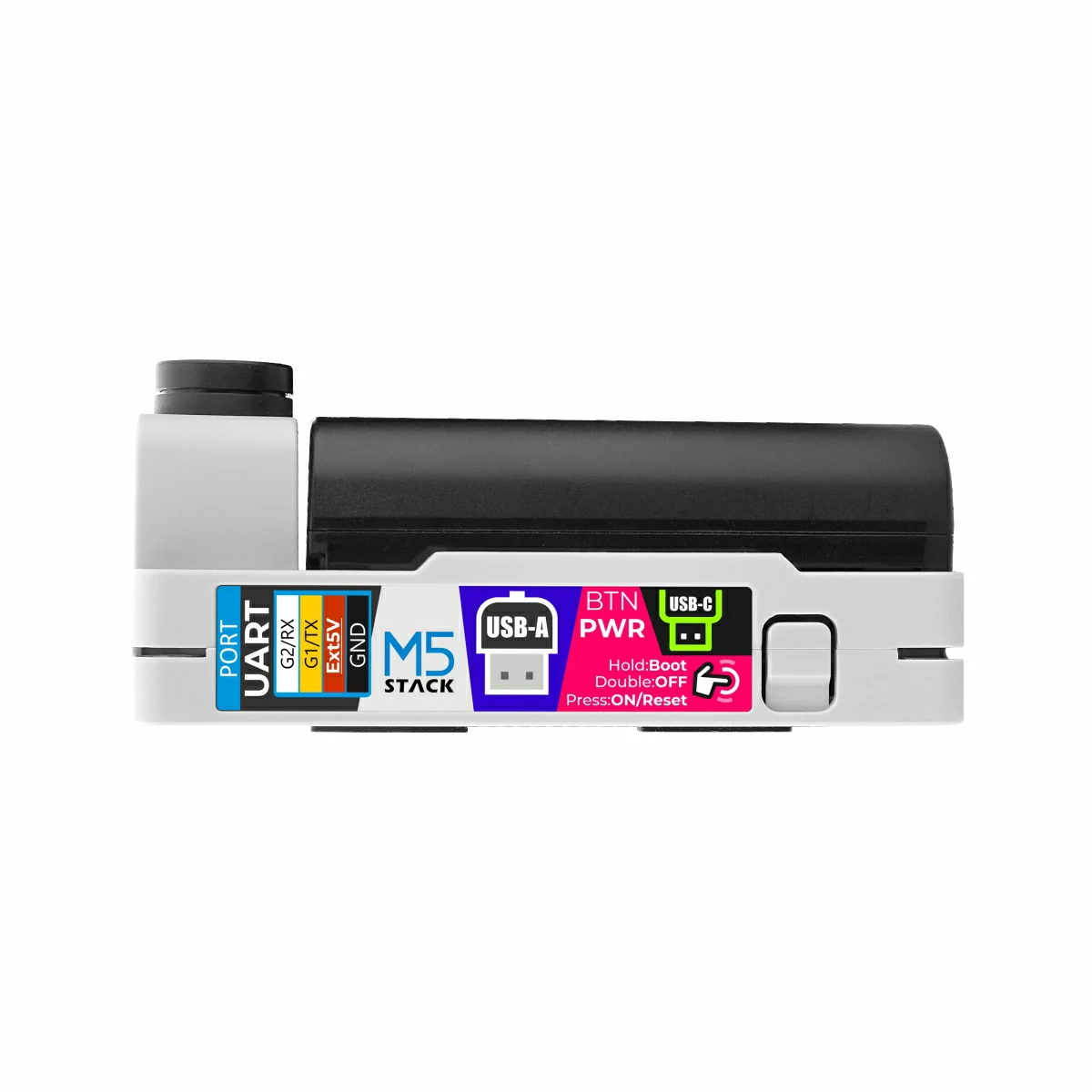

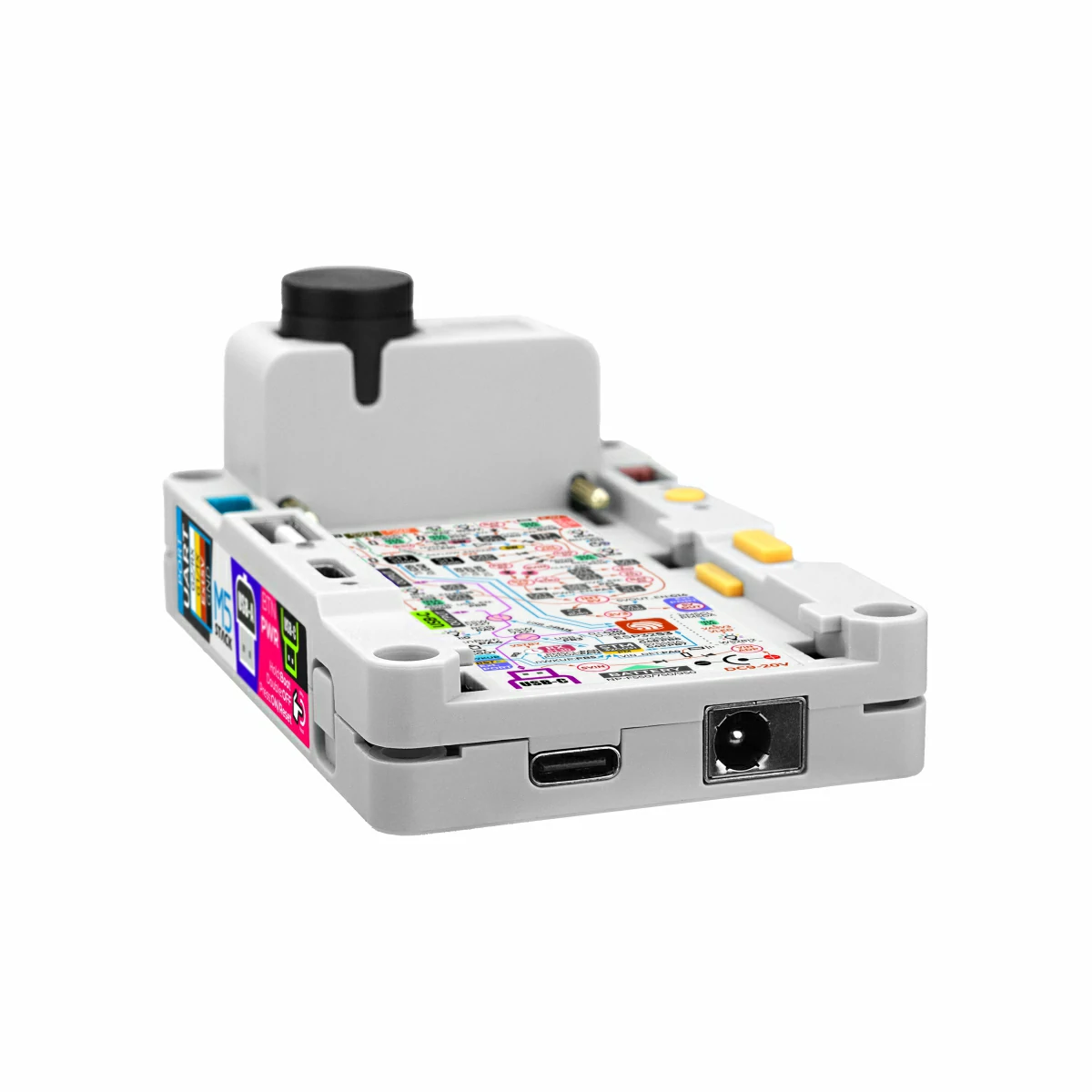

USB Type-A / USB Type-C expansion interfaces

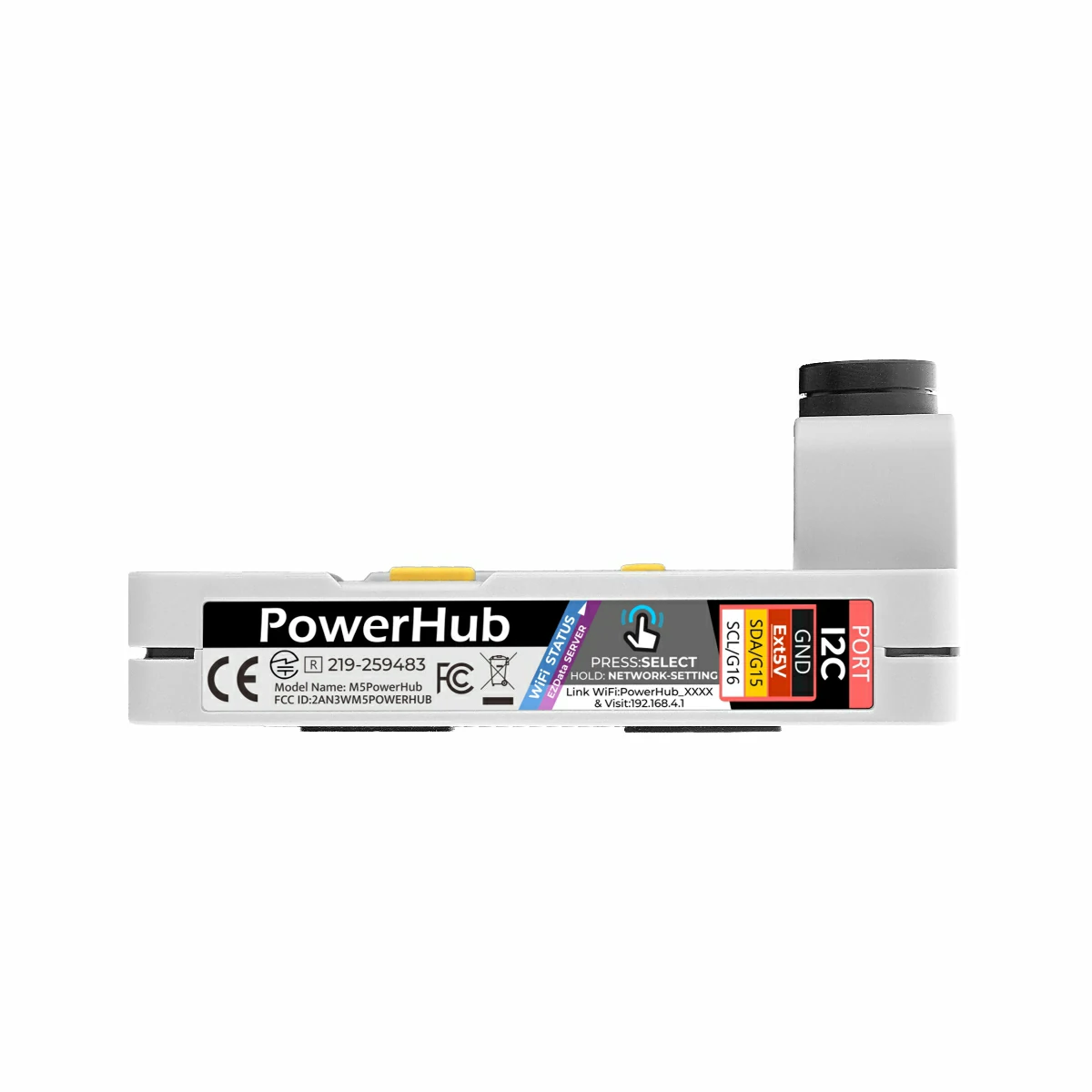

2 x HY2.0-4P expansion ports
2.54-16P expansion bus interface

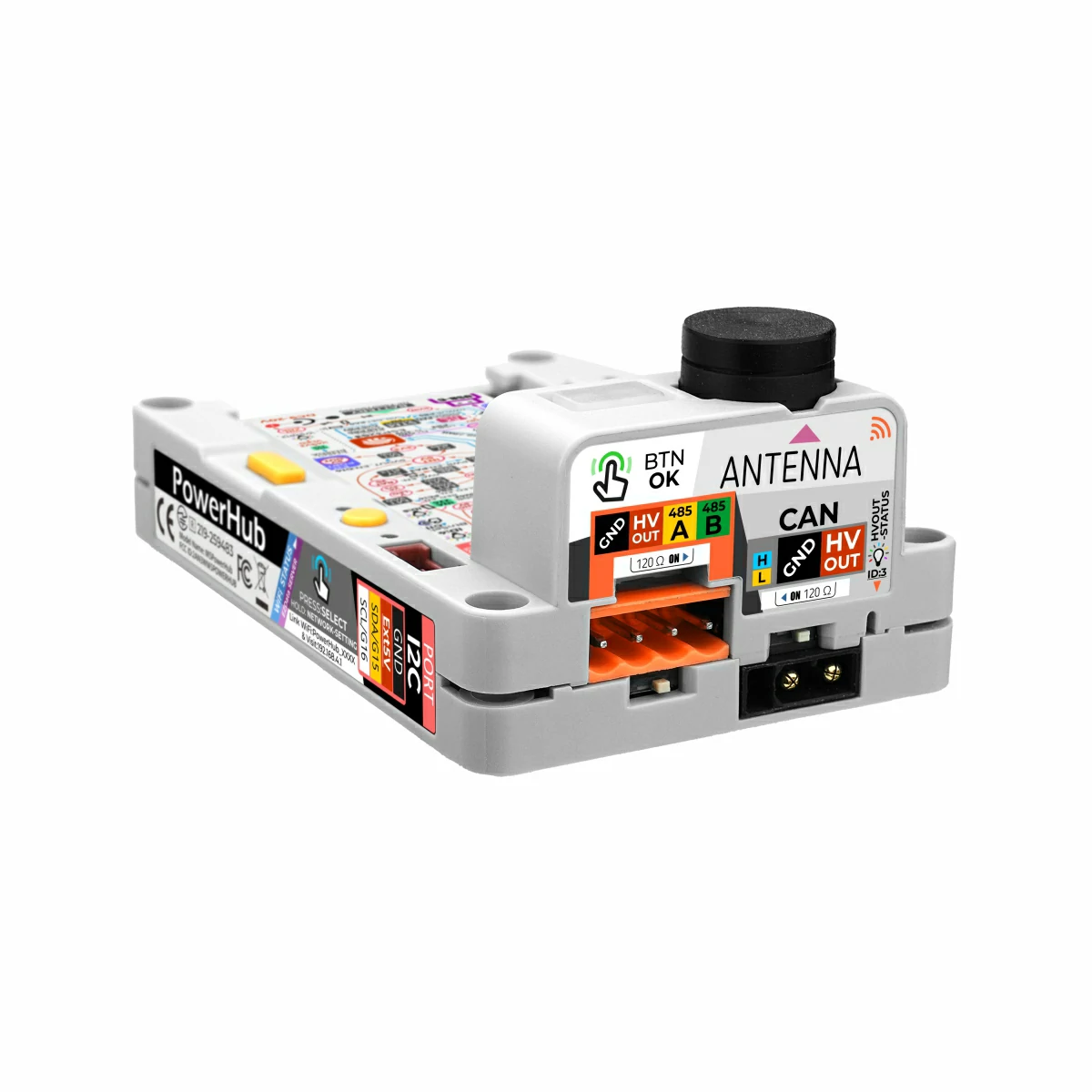

RS485 communication interface (with built-in 120Ω terminal resistor switch)
CAN bus communication interface (with built-in 120Ω terminal resistor switch)
2.4 GHz SMA mini antenna

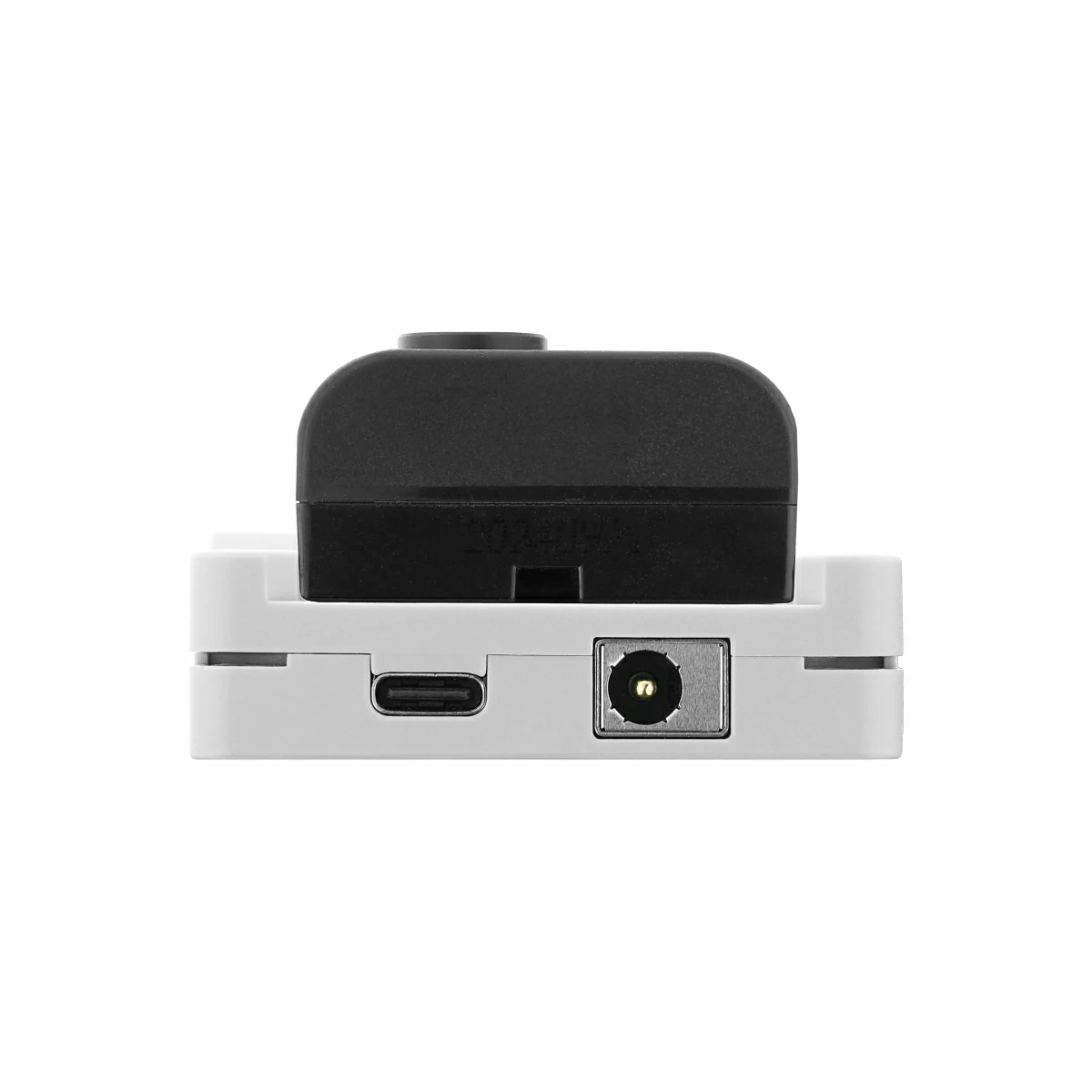

Multiple power supply modes:
- PWR485/PWR CAN input power
- 2S battery power supply
- DC 7 ~ 20V power supply
Human-machine interaction:
- Multi-channel status indicator lights
- 3 x physical buttons

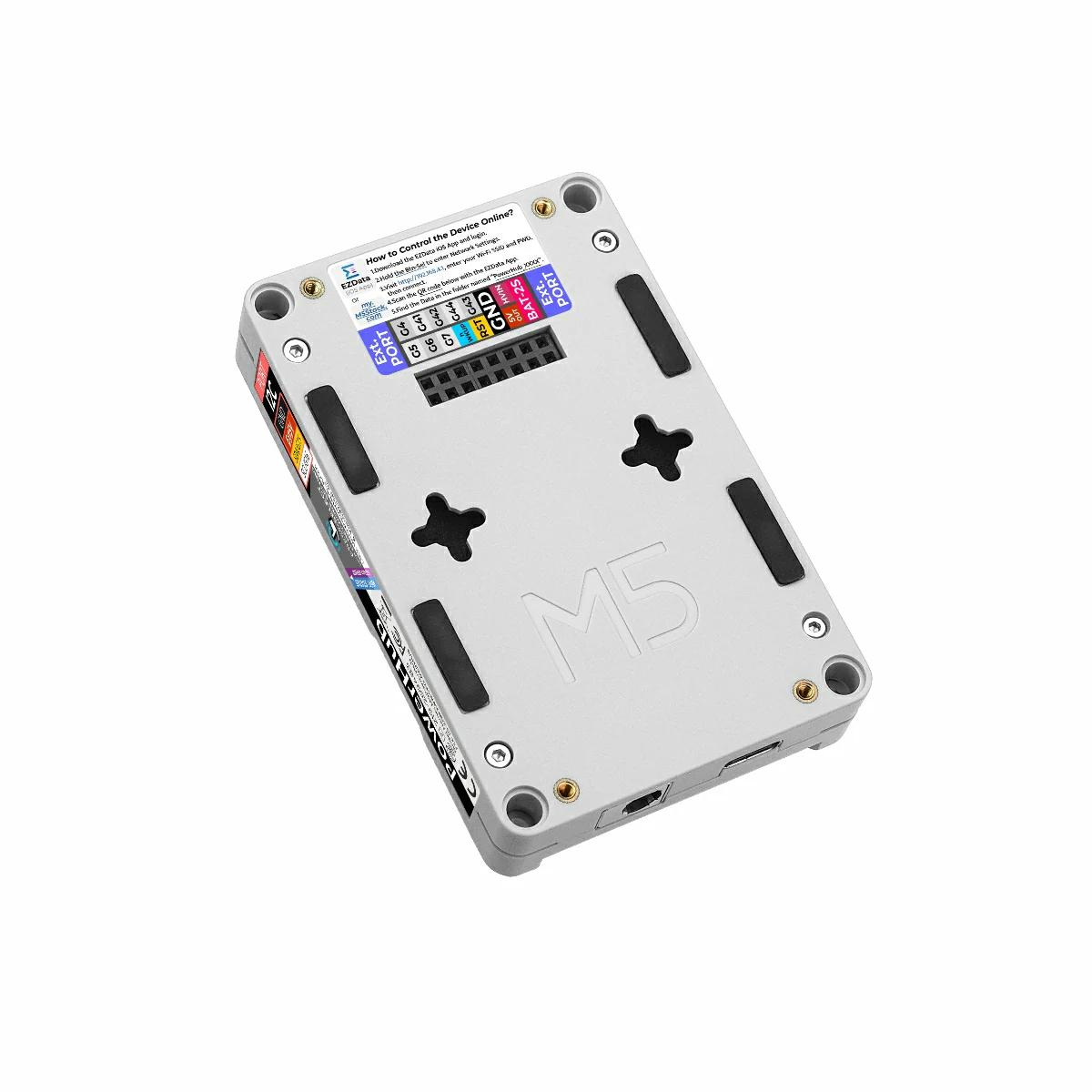

Multiple mounting methods:
- Magnetic design for mounting on metal surfaces
- Rear cross mounting holes for wall installation
- Lego mounting holes
- M2 screw holes
Includes
PowerHub
- 1 x PowerHub

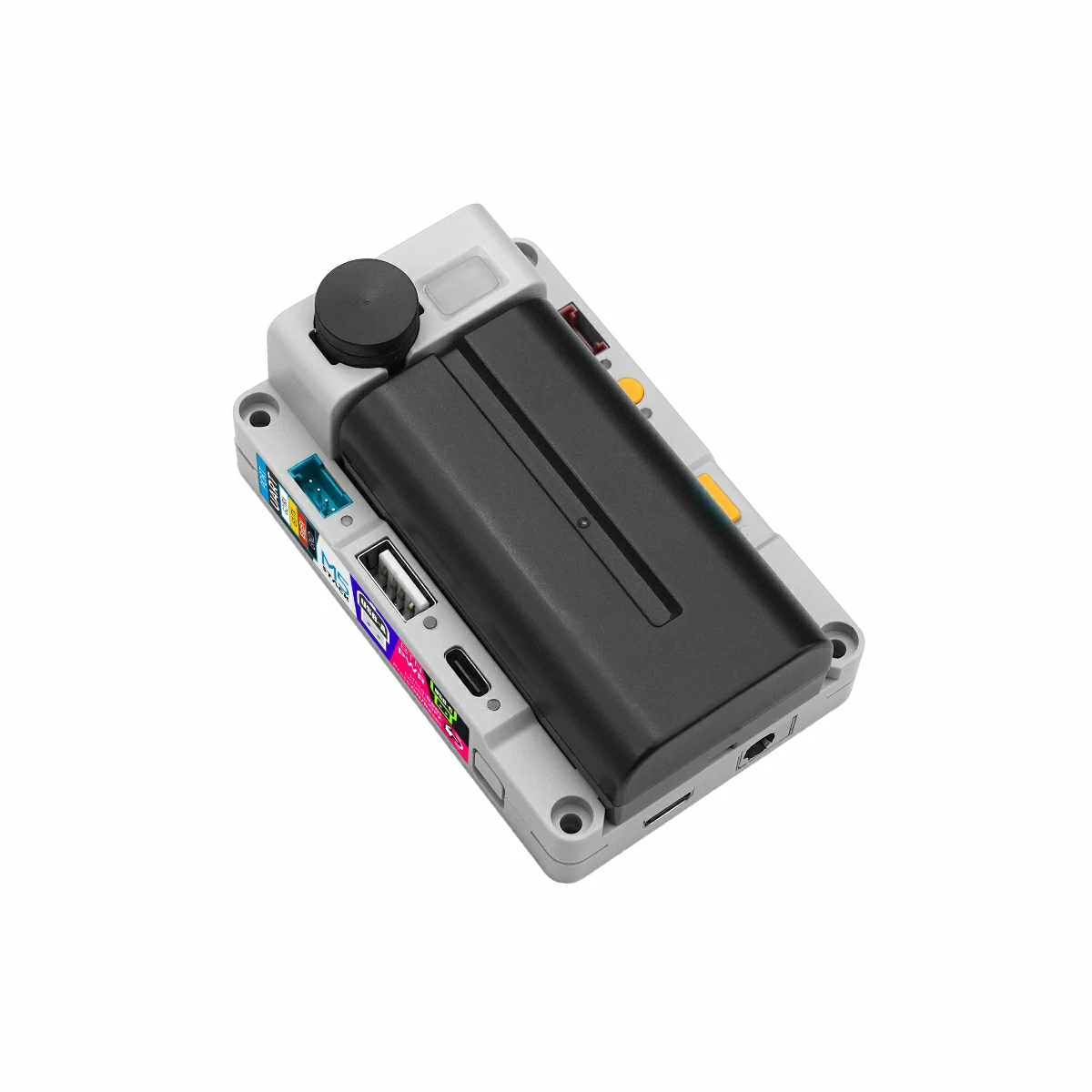

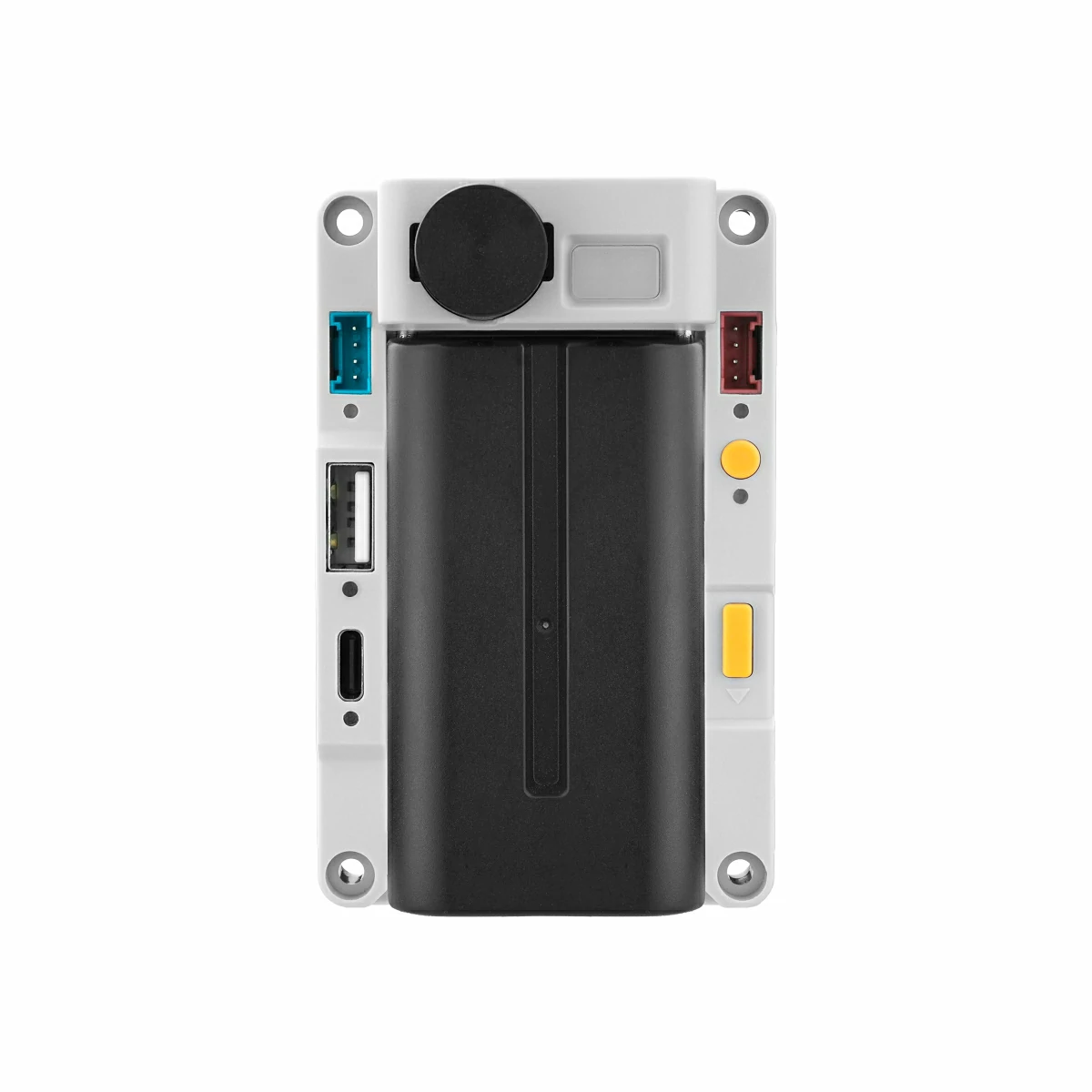

PowerHub Kit
- 1 x PowerHub
- 1 x NP‑F550 2000mAh removable battery
Applications
- Industrial automation
- Smart home
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-WROOM-1U-N16R8@Dual-core Xtensa LX7 processor, up to 240MHz |
| MCU | STM32G031G8U6 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Expansion Ports | 2 x HY2.0-4P + EXT 2.54-16P |
| RS485 Port | Spec: VH3.96-4P, with 120Ω terminal resistor switch Reverse power input voltage: DC 9 ~ 20V |
| CAN Port | Spec: XT30 (2+2), with 120Ω terminal resistor switch Reverse power input voltage: DC 9 ~ 20V |
| USB Ports | 1 x USB Type-A, 2 x USB Type-C |
| RGB LED | 8 x WS2812 |
| Antenna Spec | Size 15 x 14mm, SMA (female thread, female core) connector, 2.4 GHz band, 2dB gain, VSWR ≤1.8 |
| Compatible Battery | NP-F550/750/950, 2S lithium battery @ 7.4V |
| DC Power Input | Voltage: DC 9 ~ 20V, spec: 5.5 x 2.1mm, polarity: inner positive, outer negative |
| Operating Temp. | 0 ~ 40°C |
| Product Size | 88.0 x 56.0 x 38.5mm |
| Product Weight | PowerHub: 71.0g PowerHub Kit (with battery): 174.8g |
| Package Size | 110.0 x 73.0 x 42.0mm |
| Gross Weight | PowerHub: 105.5g PowerHub Kit (with battery): 208.2g |
Learn
During the initial charging phase, since the battery is still in protection mode, the charging chip trickle-charges with a small current. This state lasts several minutes, depending on the battery voltage level. Once the voltage rises above 6V, the chip automatically switches to normal charging mode.
Schematics

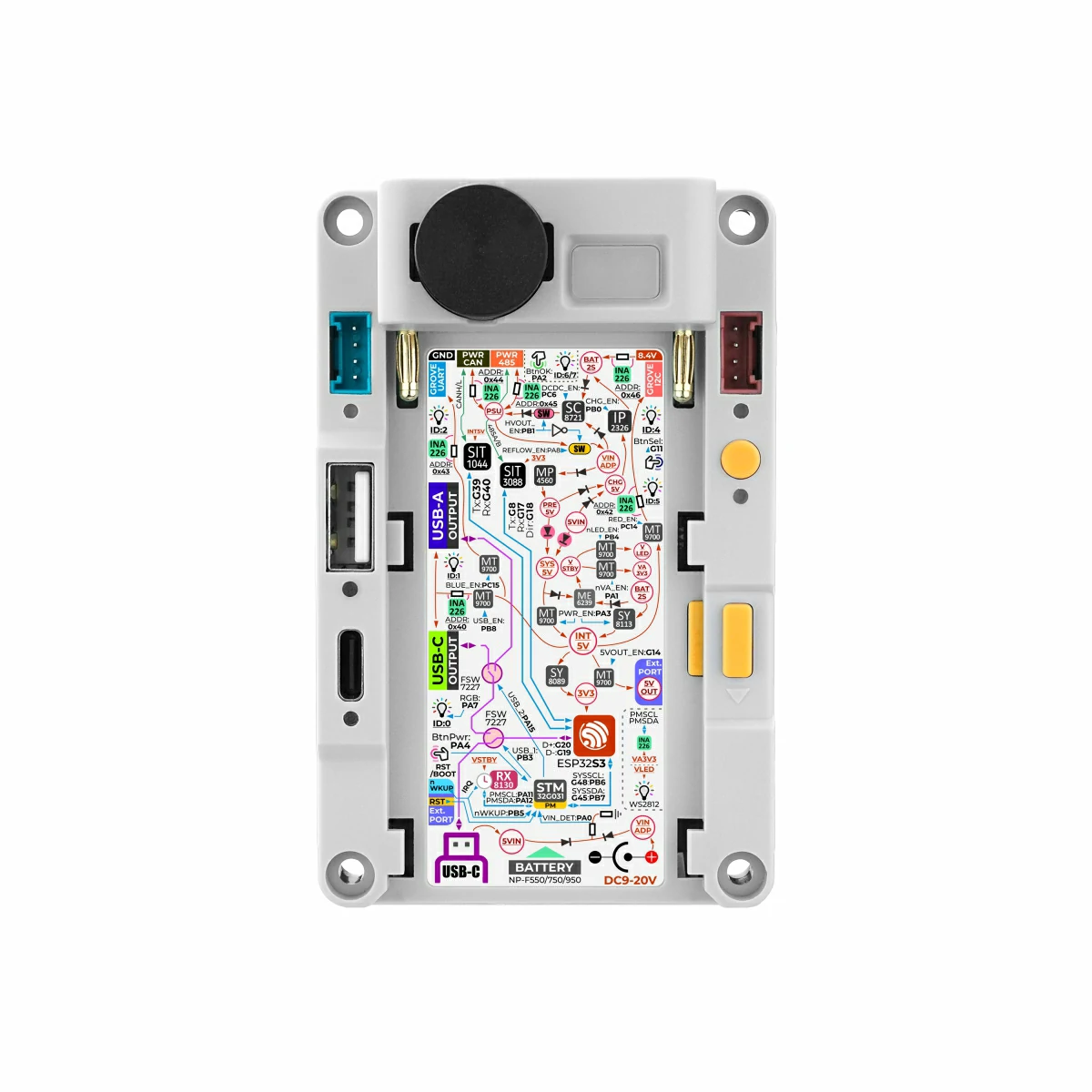

PinMap

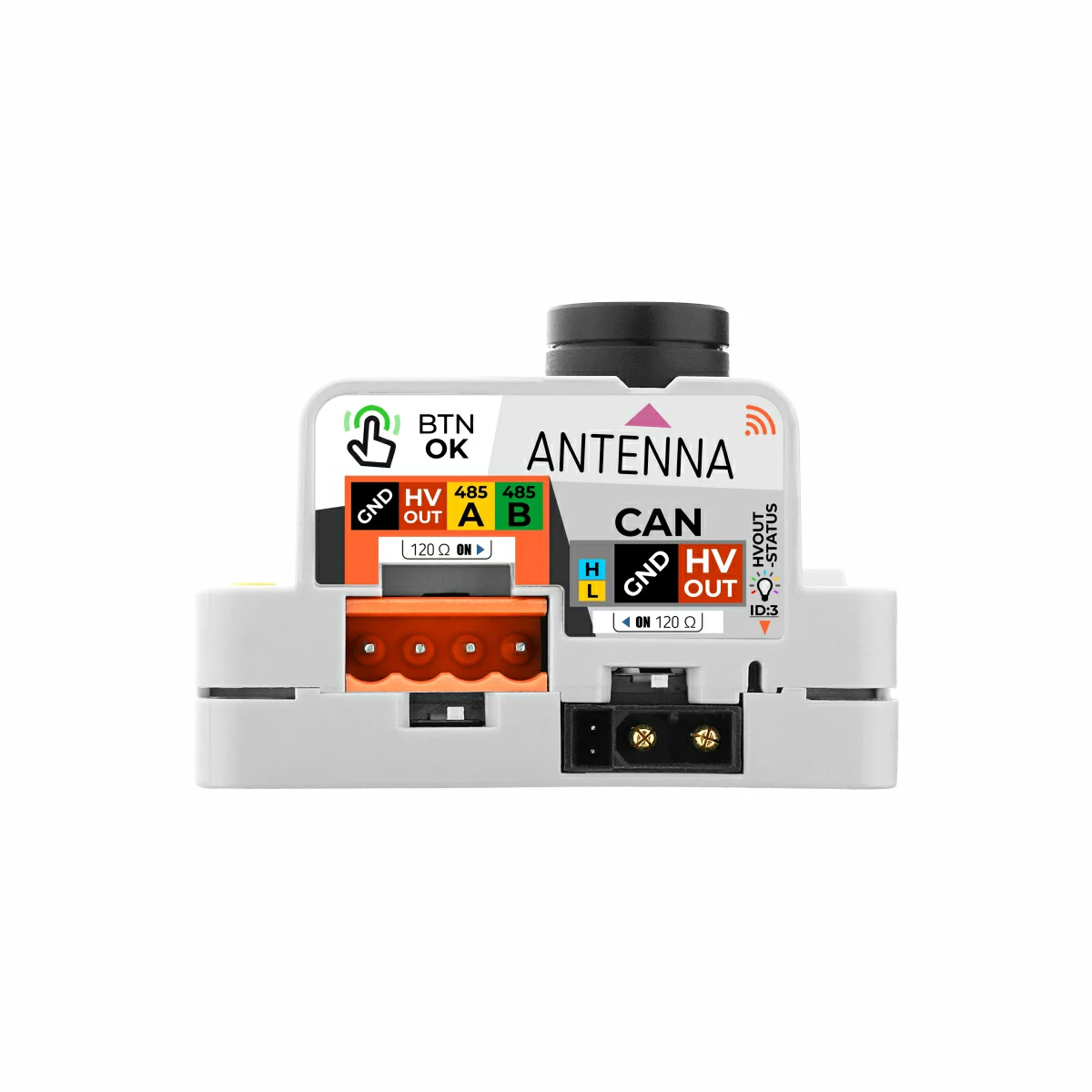

RS485 & CAN
| ESP32-S3 | G8 | G18 | G17 | G39 | G40 |
|---|---|---|---|---|---|
| RS485 | MCU_485_TXD | MCU_485_DIR | MCU_485_RXD | ||
| CAN | MCU_CAN_TXD | MCU_CAN_RXD |
| ESP32-S3 | G11 |
|---|---|
| User Button | USR_SW2 (Yellow round button) |
| ESP32-S3 | G19 | G20 |
|---|---|---|
| USB | MCU_USB_DM | MCU_USB_DP |
STM32G031
| ESP32-S3 | G45 | G48 | G0 |
|---|---|---|---|
| STM32G031 | SYS_SDA | SYS_CL | G0_BOOT |
RGB LED & PMU Button
| STM32G031 | PA7 | PB4 | PA4 | PA2 |
|---|---|---|---|---|
| WS2812C | LED_DATA | LED_EN | PMU_SW2 (side button) | PMU_SW1 (top translucent button) |
USB
| STM32G031 | PB3 | PA15 |
|---|---|---|
| USB_SWITCH_L1 | USB_CON_LV1 | |
| USB_SWITCH_L2 | USB_CON_LV2 |
PowerHub’s USB interface adopts a two-level switch design:
- ESP32-S3 is directly connected to the bottom USB Type-C port of the device.
- USB_CON_LV1: Controls ESP32-S3 USB pins connection to the bottom USB Type-C port, or routing to the USB_CON_LV2 switch.
- USB_CON_LV2: Controls routing from USB_CON_LV1 to the front USB Type-C port or USB Type-A port.
Power Manager
| STM32G031 | PA12 | PA11 |
|---|---|---|
| INA226(0x40) - USB | PM_SDA | PM_SCL |
| INA226(0x42) - PORT.A | PM_SDA | PM_SCL |
| INA226(0x43) - PORT.C | PM_SDA | PM_SCL |
| INA226(0x44) - PWRCAN | PM_SDA | PM_SCL |
| INA226(0x45) - PWR485 | PM_SDA | PM_SCL |
| INA226(0x46) - Battery | PM_SDA | PM_SCL |
| SC8721 | PM_SDA | PM_SCL |
| RX8130CE(0x32) | PM_SDA | PM_SCL |
| STM32G031 | PA1 | PA0 | PB8 | PC14 | PC15 | PB1 | PA8 | PC6 |
|---|---|---|---|---|---|---|---|---|
| INA226_PWR | nVA_EN | |||||||
| DC_INPUT_DETECT | VIN_DET | |||||||
| USB_PWR | OEN_USB | |||||||
| PORT.A_PWR | OEN_GRV_R | |||||||
| PORT.C_PWR | OEN_GRV_B | |||||||
| RS485_CAN_PWR | OEN_PWROUT | PDCDC_REFLOW | ||||||
| SC8721_DCDC_PWR | PDCDC_EN |
| ESP32-S3 | G14 |
|---|---|
| EXT 2.54-16P 5V PWR | OEN_5VO |
| STM32G031 | PB0 | PA6 | PB5 |
|---|---|---|---|
| CHARGE | CHG_EN | CHG_STAT | |
| WAKE_UP | nSTBY_WAKE_UP |
HY2.0-4P
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.A | GND | 5V | G15 | G16 |
| PORT.C | GND | 5V | G1 | G2 |
EXT 2.54-16P
| PIN | LEFT | RIGHT | PIN |
|---|---|---|---|
| BAT-2S | 1 | 2 | BAT-2S |
| HVIN | 3 | 4 | 5VOUT |
| GND | 5 | 6 | GND |
| G43 | 7 | 8 | RST |
| G44 | 9 | 10 | nWKUP |
| G42 | 11 | 12 | G7 |
| G41 | 13 | 14 | G6 |
| G4 | 15 | 16 | G5 |

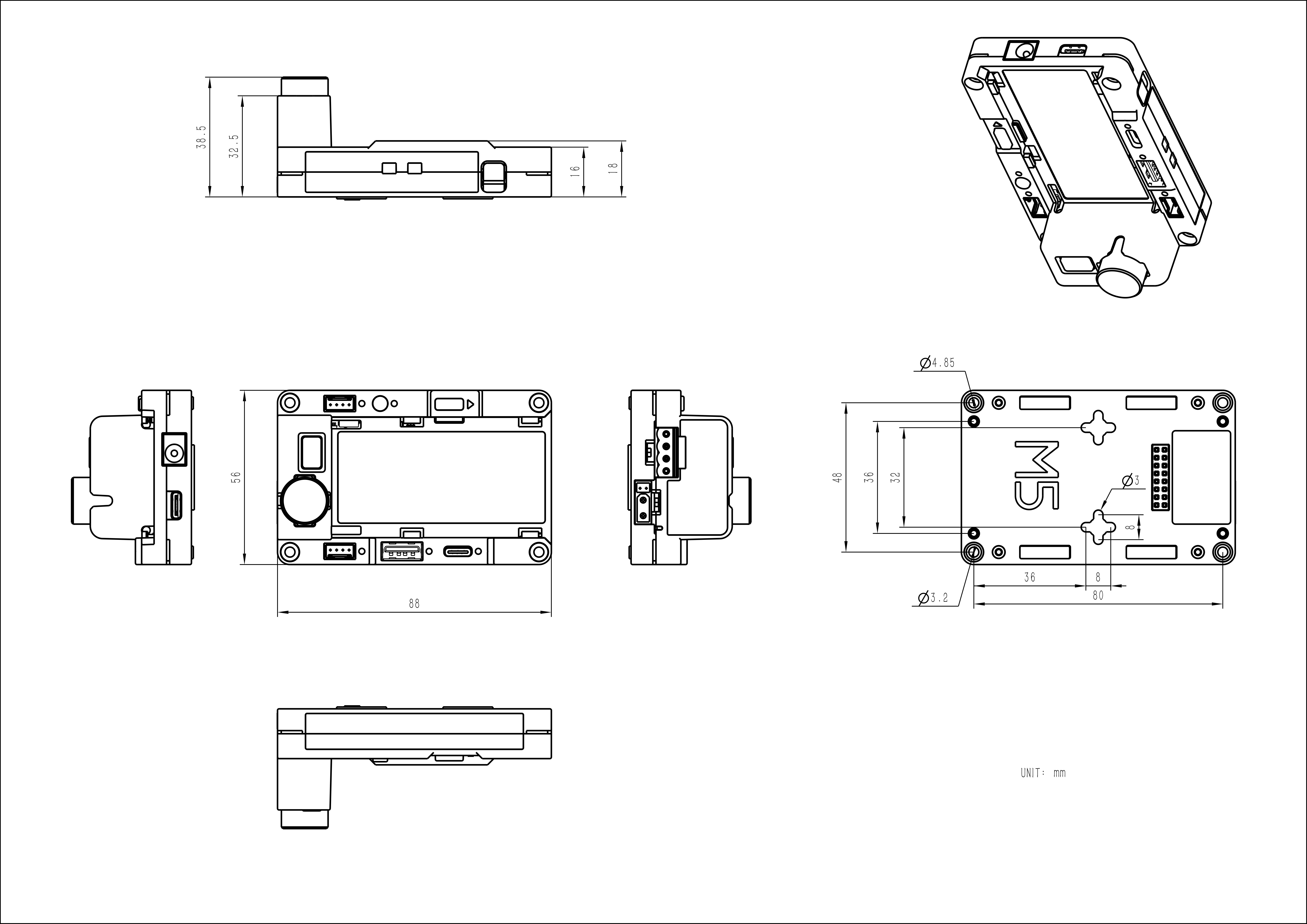

Model Size
Datasheets
Softwares
Protocol
Video
- PowerHub Product Introduction and Case Demonstration
