Air Quality バッテリーレベルデータの取得

Air Quality のバッテリー残量に関する API とサンプルプログラム。

サンプルプログラム

cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
#include <M5Unified.h>
static constexpr int BAT_PIN = 14;
static constexpr float VREF = 3.3f; // ADC 参照電圧
static constexpr int ADC_RESOLUTION = 4095; // 12ビット分解能 (0~4095)
static constexpr float DIVIDER = 2.0f; // 分圧比
void setup() {
// M5Unified の初期化
M5.begin();
analogSetPinAttenuation(BAT_PIN, ADC_11db);
M5.Display.clear(TFT_BLACK);
M5.Display.setTextColor(TFT_WHITE, TFT_BLACK);
M5.Display.setTextSize(3);
}
void loop() {
// ADC を一度読み取る
int raw = analogRead(BAT_PIN);
// 電圧を計算: raw/4095 * 3.3 * 2
float vb = (raw / float(ADC_RESOLUTION)) * VREF * DIVIDER;
// 結果を画面に表示
M5.Display.fillScreen(TFT_BLACK);
M5.Display.setCursor(10, 20);
M5.Display.printf("Battery:\n%.2f V", vb);
// 毎秒更新
delay(5000);
M5.update();
}

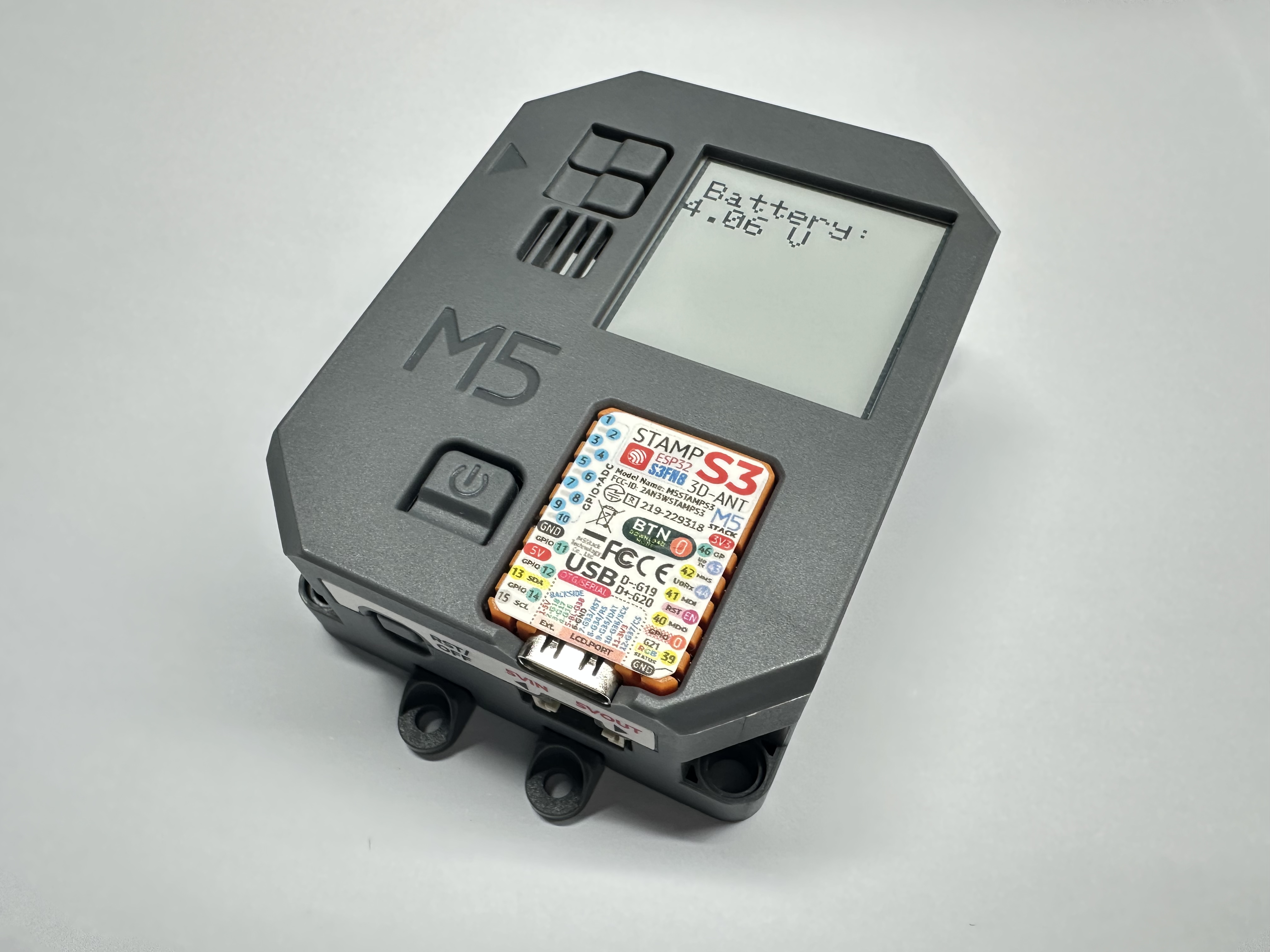

アップロード後、以下のように表示されます:
