DinMeter Encoder Display

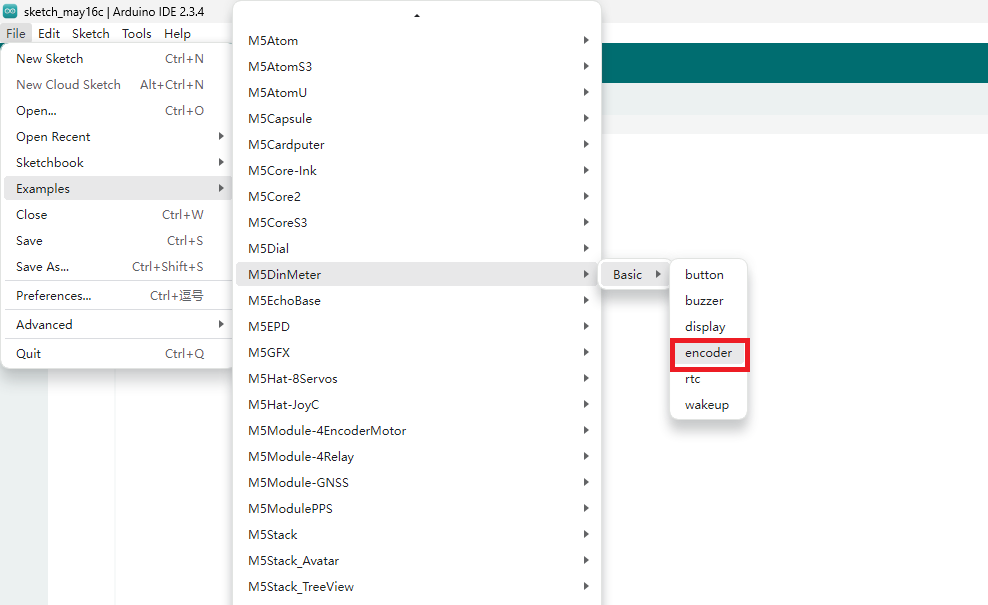

  • Open the example encoder and upload the code

Example

cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
/**
* @file encoder.ino
* @author SeanKwok (shaoxiang@m5stack.com)
* @brief M5DinMeter Encoder Test
* @version 0.1
* @date 2024-03-07
*
*
* @Hardwares: M5DinMeter
* @Platform Version: Arduino M5Stack Board Manager v2.1.1
* @Dependent Library:
* M5GFX: https://github.com/m5stack/M5GFX
* M5Unified: https://github.com/m5stack/M5Unified
*/
#include "M5DinMeter.h"
void setup() {
auto cfg = M5.config();
DinMeter.begin(cfg, true);
DinMeter.Display.setRotation(1);
DinMeter.Display.setTextColor(GREEN);
DinMeter.Display.setTextDatum(middle_center);
DinMeter.Display.setTextFont(&fonts::Orbitron_Light_32);
DinMeter.Display.setTextSize(2);
}
long oldPosition = -999;
void loop() {
DinMeter.update();
long newPosition = DinMeter.Encoder.read();
if (newPosition != oldPosition) {
DinMeter.Speaker.tone(8000, 20);
DinMeter.Display.clear();
oldPosition = newPosition;
Serial.println(newPosition);
DinMeter.Display.drawString(String(newPosition),
DinMeter.Display.width() / 2,
DinMeter.Display.height() / 2);
}
if (DinMeter.BtnA.wasPressed()) {
DinMeter.Encoder.readAndReset();
}
if (DinMeter.BtnA.pressedFor(5000)) {
DinMeter.Encoder.write(100);
}
}

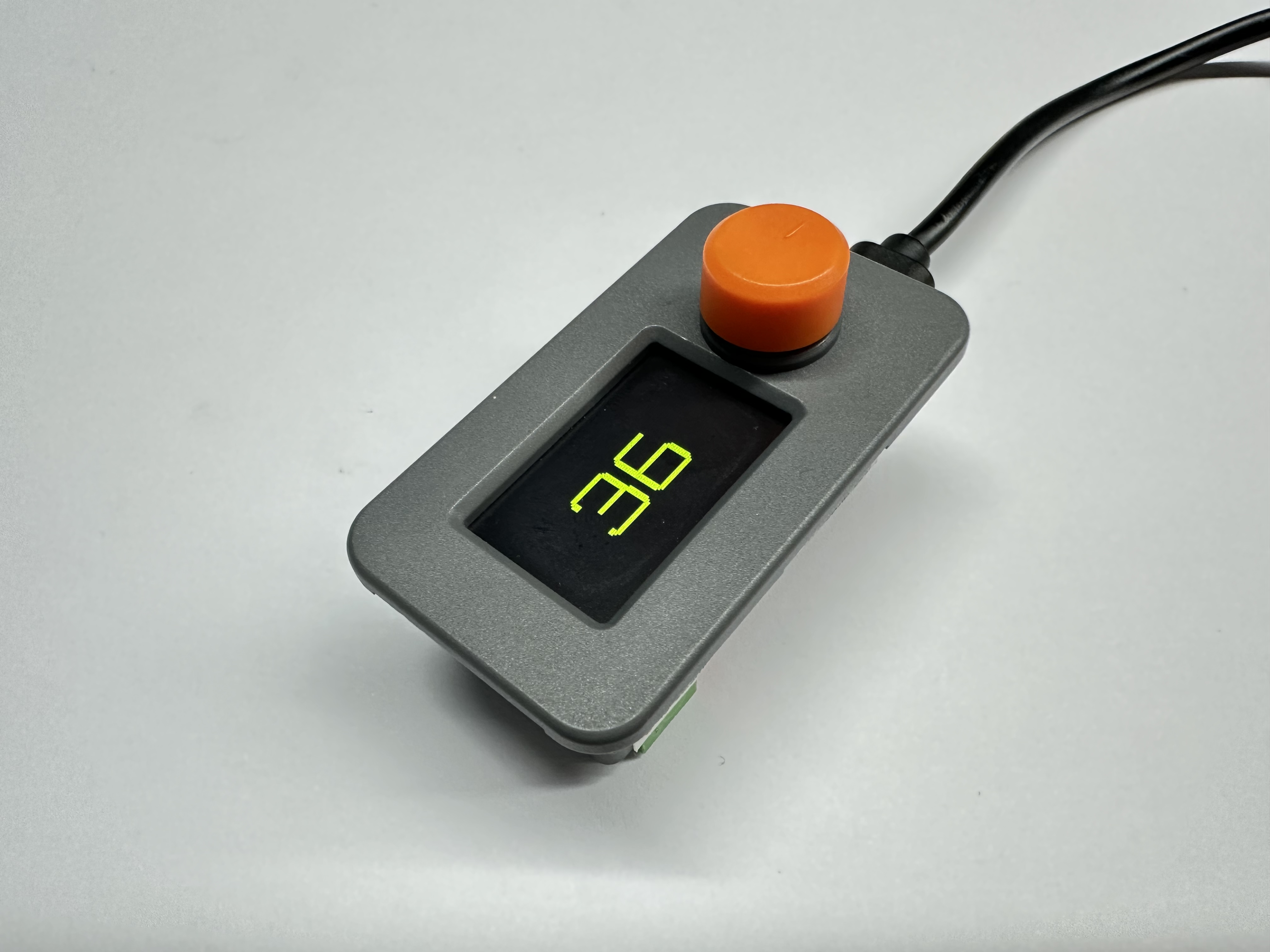

After uploading, you can see the following effect
