CoreS3 Proximity LTR553
The M5CoreS3 comes with a built-in LTR553 proximity sensor. Reference the API & examples below to implement proximity state reading.
begin()
Description:
- Initializes the proximity sensor
Prototype:
bool begin(Ltr5xx_Init_Basic_Para *init_base_para)
bool begin(Ltr5xx_Init_Interrupt_Para *init_interrupt_para)
Parameters:
| Parameter | Type | Description |
|---|---|---|
| init_base_para | Ltr5xx_Init_Basic_Para * | Basic monitoring initialization |
| init_interrupt_para | Ltr5xx_Init_Interrupt_Para * | Interrupt monitoring initialization |
Return Values:
| Return Value | Description |
|---|---|
| true | Initialization successful |
| false | Initialization failed |
setPsMode()
Description:
- Initializes the proximity sensor
Prototype:
bool setPsMode(uint8_t mode)
Parameters:
| Parameter | Type | Description |
|---|---|---|
| mode | uint8_t | 1: Enable proximity sensor monitoring 0: Sensor standby |
Return Values:
| Return Value | Description |
|---|---|
| true | Initialization successful |
| false | Initialization failed |
setAlsMode()
Description:
- Initializes the proximity sensor
Prototype:
bool setAlsMode(uint8_t mode)
Parameters:
| Parameter | Type | Description |
|---|---|---|
| mode | uint8_t | 1: Enable ambient light sensor monitoring 0: Sensor standby |
Return Values:
| Return Value | Description |
|---|---|
| true | Initialization successful |
| false | Initialization failed |
getPsValue()
Description:
- Retrieves the proximity sensor value
Prototype:
uint16_t getPsValue(void)
Parameters:
None
Return Values:
| Return Value | Description |
|---|---|
| uint16_t | Monitored proximity value |
getAlsValue()
Description:
- Retrieves the ambient light sensor value
Prototype:
uint16_t getAlsValue(void)
Parameters:
None
Return Values:
| Return Value | Description |
|---|---|
| uint16_t | Monitored ambient light lux |

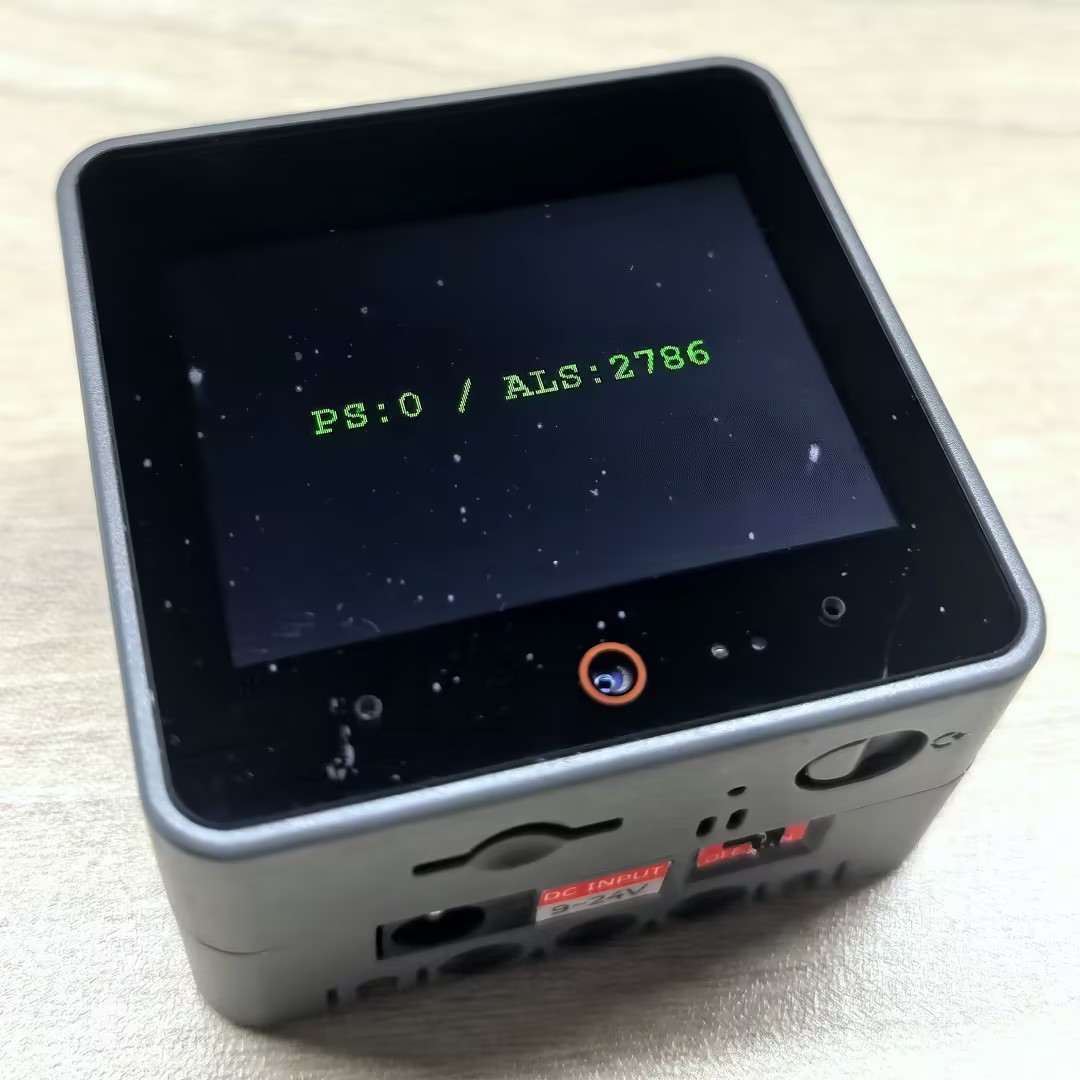

Example Usage:
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57
#include "M5CoreS3.h" Ltr5xx_Init_Basic_Para device_init_base_para = LTR5XX_BASE_PARA_CONFIG_DEFAULT; uint16_t read_ps_value;uint16_t read_als_value; void setup() { auto cfg = M5.config(); CoreS3.begin(cfg); CoreS3.Display.setTextColor(GREEN); CoreS3.Display.setTextDatum(middle_center); CoreS3.Display.setFont(&fonts::Orbitron_Light_24); CoreS3.Display.setTextSize(1); device_init_base_para.ps_led_pulse_freq = LTR5XX_LED_PULSE_FREQ_40KHZ; device_init_base_para.ps_measurement_rate = LTR5XX_PS_MEASUREMENT_RATE_50MS; device_init_base_para.als_gain = LTR5XX_ALS_GAIN_48X; if (!CoreS3.Ltr553.begin(&device_init_base_para)) { CoreS3.Display.drawString("Ltr553 Init Fail", CoreS3.Display.width() / 2, CoreS3.Display.height() / 2); while (1) { delay(10); } } CoreS3.Display.drawString("Ltr553 Init Success", CoreS3.Display.width() / 2, CoreS3.Display.height() / 2); // Activate proximity sensor CoreS3.Ltr553.setPsMode(LTR5XX_PS_ACTIVE_MODE); // Activate ambient light sensor CoreS3.Ltr553.setAlsMode(LTR5XX_ALS_ACTIVE_MODE); // Deactivate proximity sensor // CoreS3.Ltr553.setPsMode(LTR5XX_PS_STAND_BY_MODE); // Deactivate ambient light sensor // CoreS3.Ltr553.setAlsMode(LTR5XX_ALS_STAND_BY_MODE);} void loop() { CoreS3.Display.clear(); read_ps_value = CoreS3.Ltr553.getPsValue(); read_als_value = CoreS3.Ltr553.getAlsValue(); CoreS3.Display.drawString( "PS:" + String(read_ps_value) + " / " + "ALS:" + String(read_als_value), CoreS3.Display.width() / 2, CoreS3.Display.height () / 2); Serial.printf("ps value = %d\r\n", read_ps_value); Serial.printf("als value = %d\r\n", read_als_value); delay(100);}
