AtomS3R: Flash Firmware & Run Code

1. UiFlow2 Firmware Flashing

1. Refer to the UiFlow2 Web IDE Tutorial to learn the basic workflow of UiFlow2 and complete the installation of the M5Burner firmware flashing tool.
2. Download the firmware for AtomS3R in M5Burner, as shown below.

3. Connect the device to the computer with a USB cable. After connecting USB, press and hold the RESET button until the green light appears, then release it to enter download mode.

4. In M5Burner, click the Burn button for the corresponding firmware, select the device port, and click Start.

5. Enter the Wi-Fi configuration required by the device, including Wi-Fi SSID and Wi-Fi Password, as well as any other device configuration that needs to be added or modified, then click Next to start flashing.

Configuration information:

• COM: Select the serial port corresponding to the device
• BaudRate: Baud rate for serial communication
• Server: Server address the device connects to
• WIFI SSID/WIFI Password: Wi-Fi name and password used by the device
• SNTP Server:
  • SNTP0: Alibaba Cloud NTP server (China)
  • SNTP1: Japan NTP server pool
  • SNTP2: Global public NTP server pool
• Timezone: Time zone setting
• Boot Option: Set the device boot mode after firmware flashing is complete
  • run main.py directly: After flashing is complete, run the program in main.py directly without connecting to the network or displaying the UiFlow2 startup screen
  • show startup menu and network setup: The device connects to the network, and devices with a screen will display the UiFlow2 startup screen
  • only net work setup: The device only performs network setup and does not display the UiFlow2 startup screen

6. When Burn successfully, click here to return is displayed, flashing is successful. Reset the device at this point.

7. After firmware flashing is complete, if you need to modify the device configuration, keep the USB connection, restart the device, click Configure, and modify the settings according to the prompts.

2. Device Connection

The device supports connecting to UiFlow2 via Access Code (wireless network) or USB (wired connection to a computer) for program pushing and debugging. Refer to the following steps:

Access Code Wireless Connection

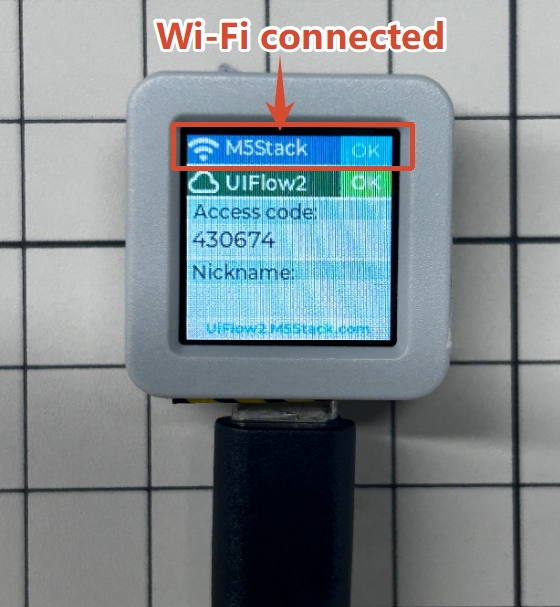

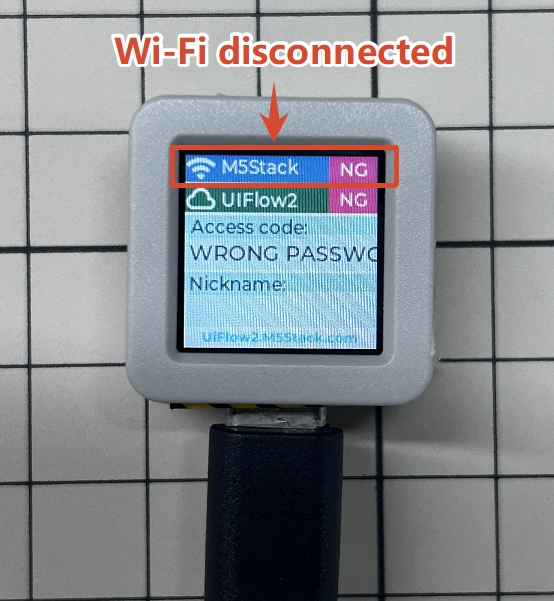

1. Before connecting, make sure the device is connected to the network. When the network connection is successful, the Wi-Fi icon on the device screen will display WiFi. If the device is not connected to the network, the screen will display NG. Check whether the Wi-Fi name and password entered during firmware flashing are correct, then modify them through the Configure option in M5Burner and flash again.

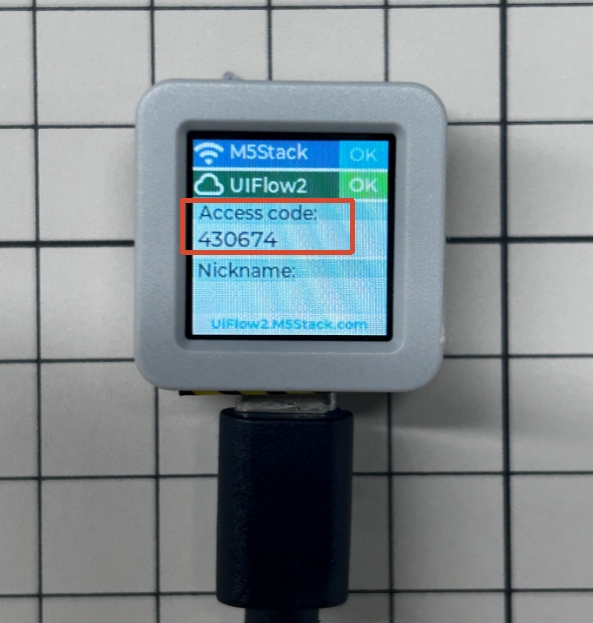

2. Check the current valid Access Code on the device's UiFlow2 startup screen.

3. Visit uiflow2.m5stack.com to open the UiFlow2 Web IDE.
4. Click Select Your Controller on the page (shown on first entry) or the Controller button to enter the Select Device page.

5. Click Connect Device, enter the access code and a custom device name, then click Confirm to connect AtomS3R to UiFlow2.

USB Wired Connection

1. Visit uiflow2.m5stack.com to open the UiFlow2 Web IDE, and connect AtomS3R to the computer with a USB Type-C cable.
2. Click Select Your Controller on the page (shown on first entry) or the Controller button to enter the Select Device page.

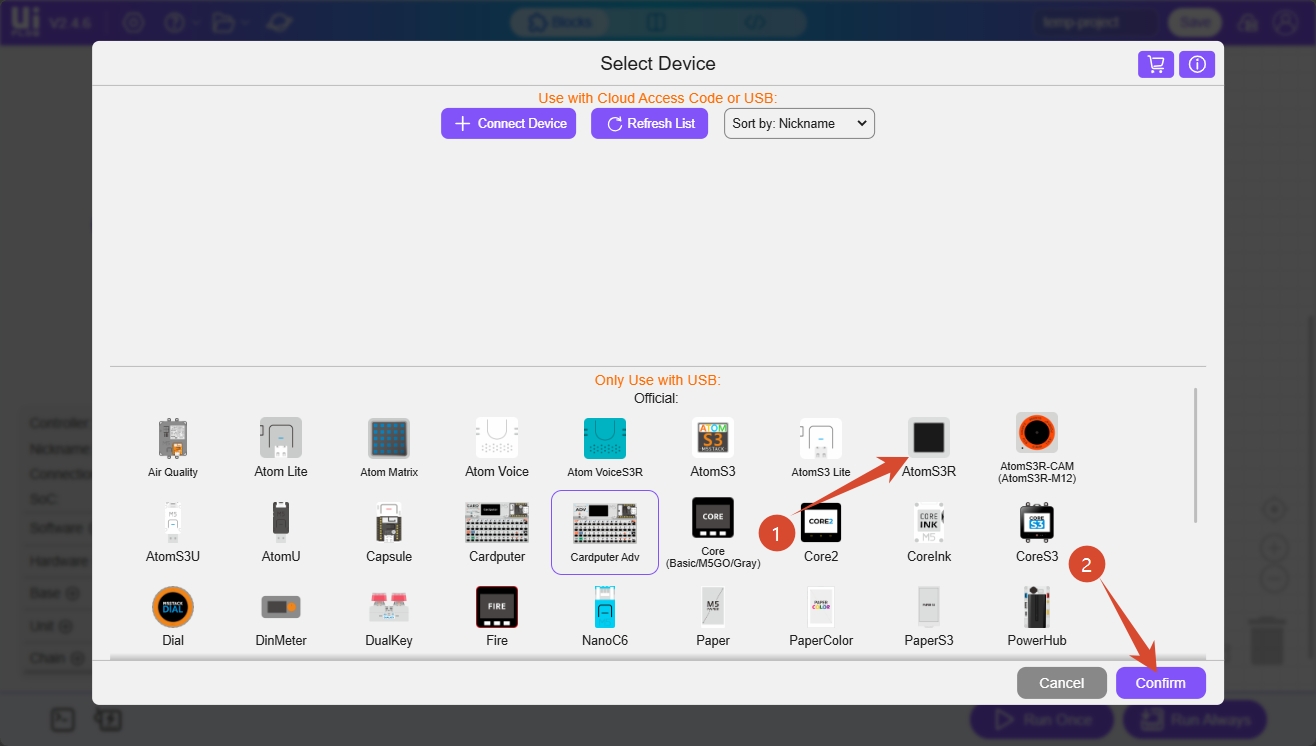

3. Select AtomS3R from the device list, then click Confirm.

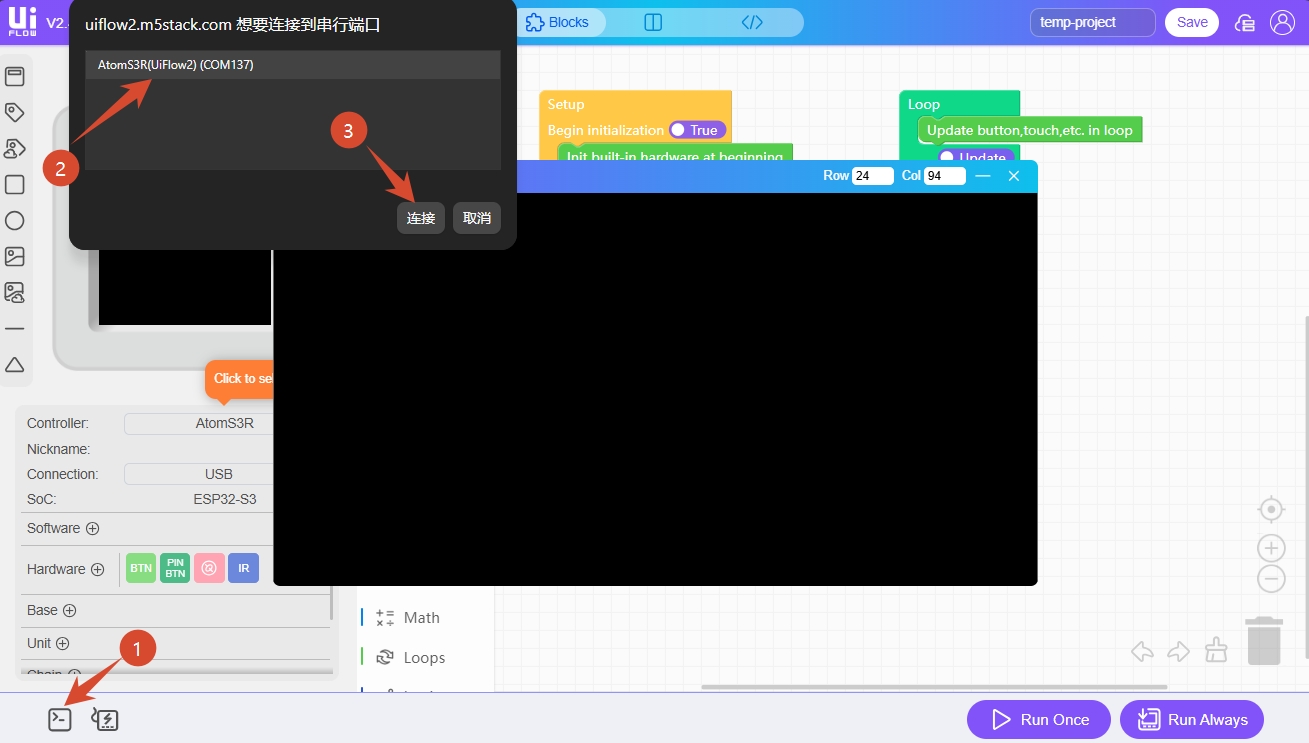

4. Click the WebTerminal button, select the serial port for AtomS3R in the dialog, and click Connect.

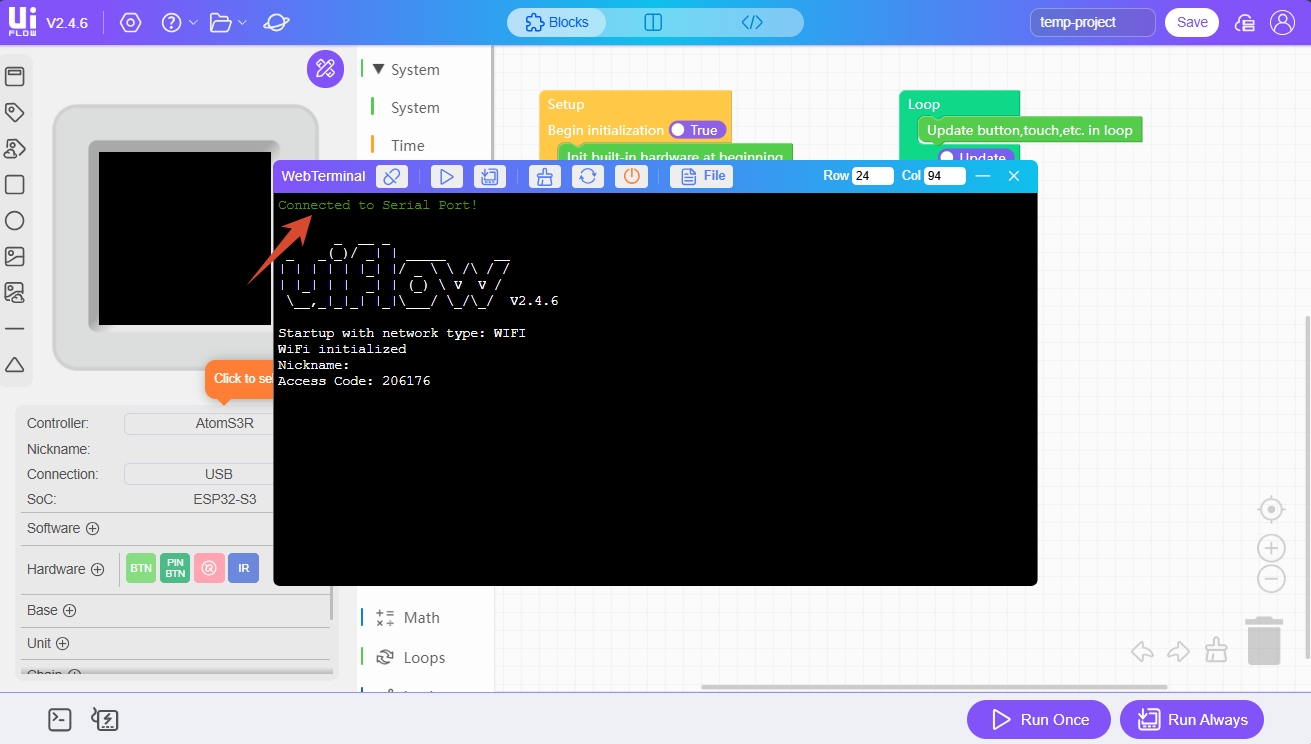

When the WebTerminal screen displays Connected to Serial Port!, the USB connection is successful.

3. Program Run and Download

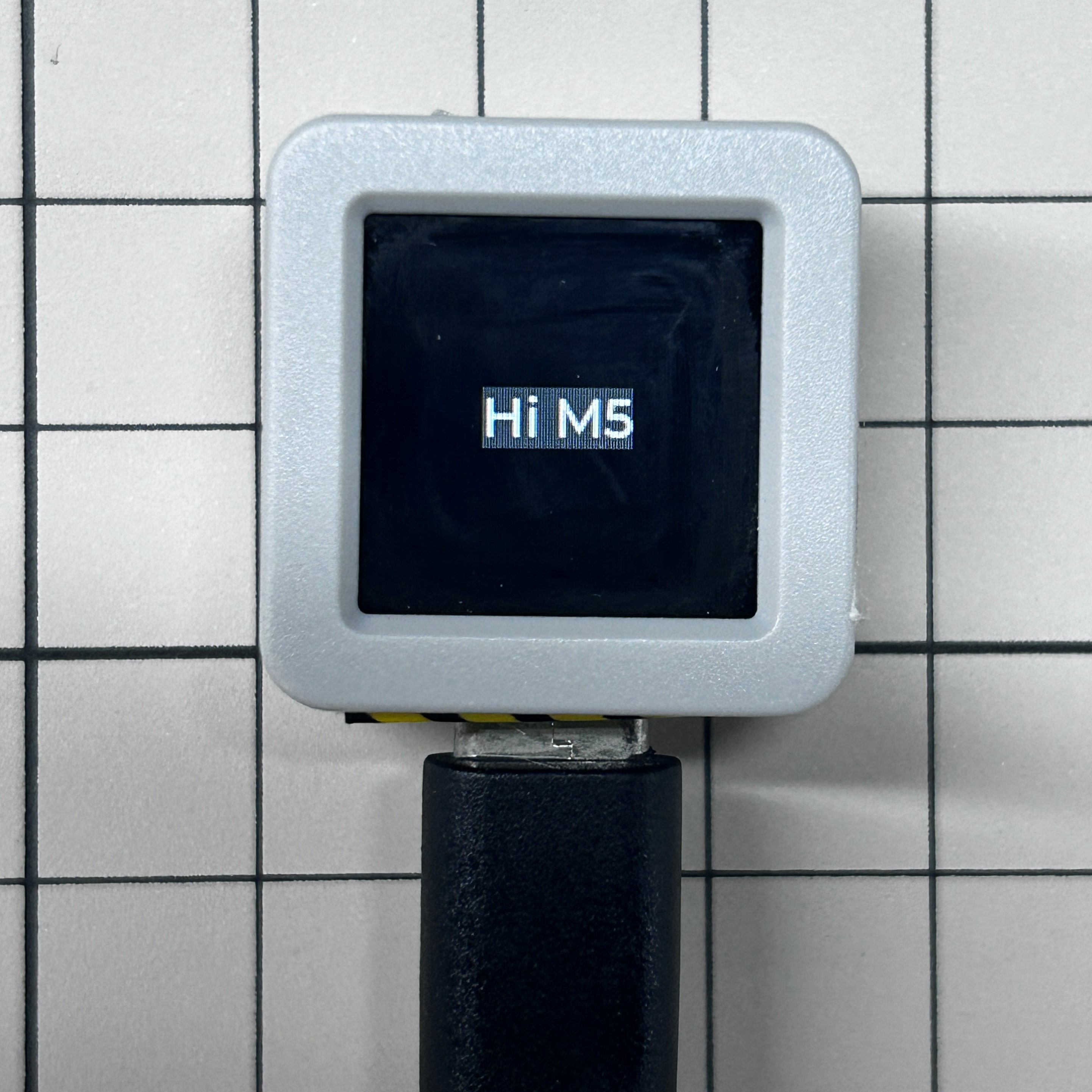

After the device is connected to UiFlow2, you can drag Blockly blocks to edit programs.

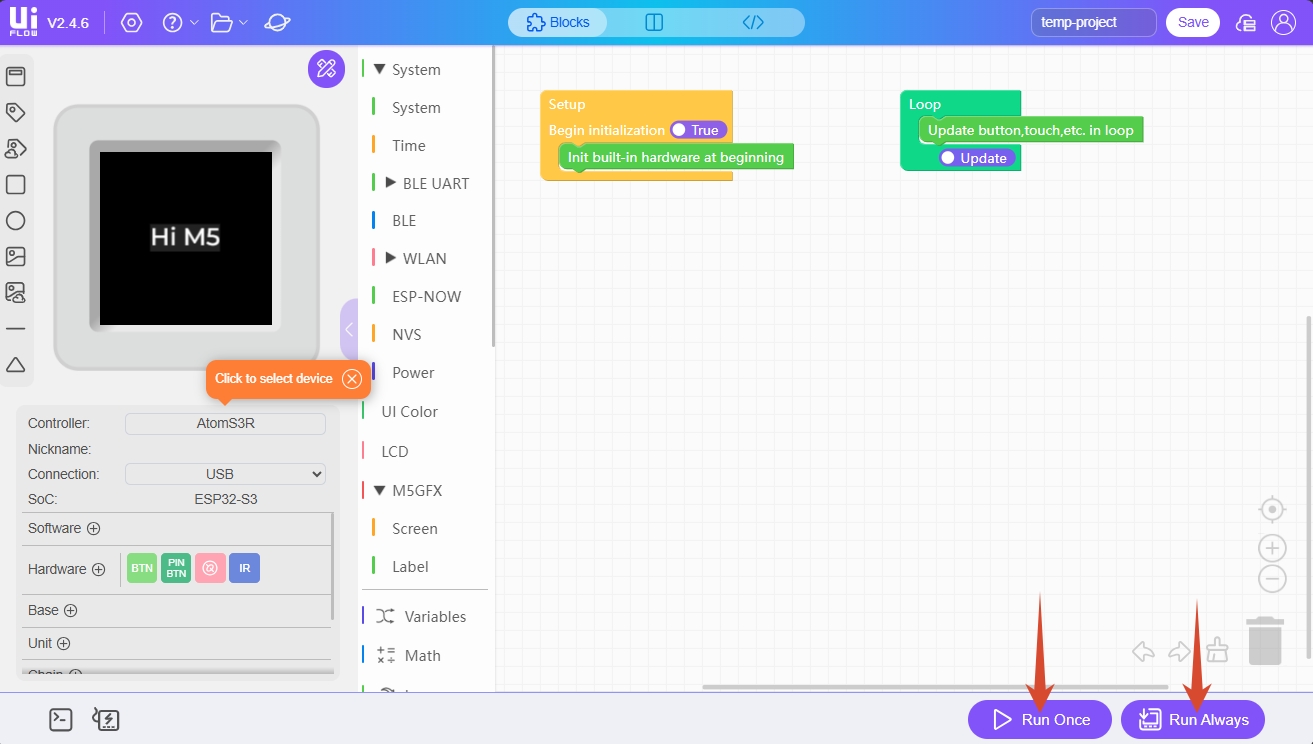

After editing the program, click the Run Once button in the lower-right corner to run the program once for testing. Click Run Always to download the program to the device.

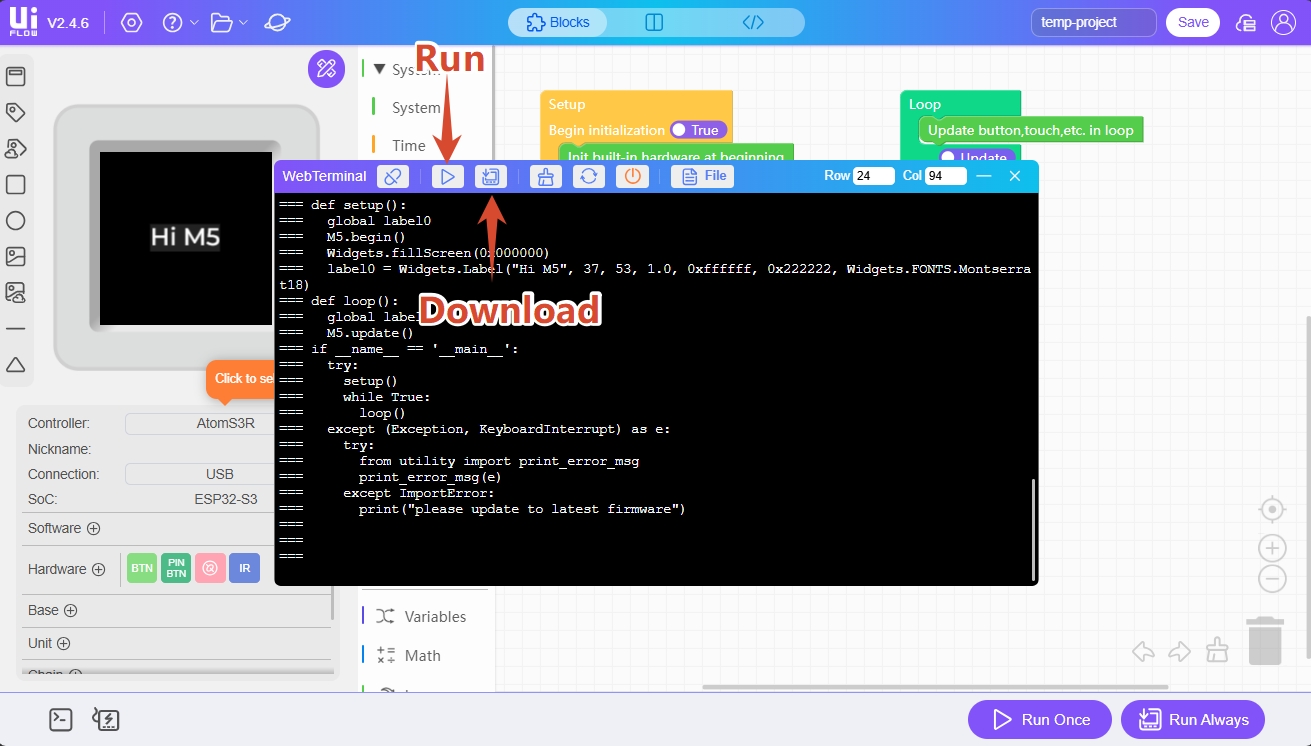

You can also run once or download the program in the WebTerminal window.
