Chain RGB Guide

1.Preparation

Environment setup: Refer to the Arduino IDE Getting Started Guide to complete the IDE installation, and install the corresponding board manager and required driver libraries according to the development board you are using.
Driver libraries used:
- M5Unified
- M5Chain
Hardware products used:
- CoreS3
- Chain RGB

2.Example Program

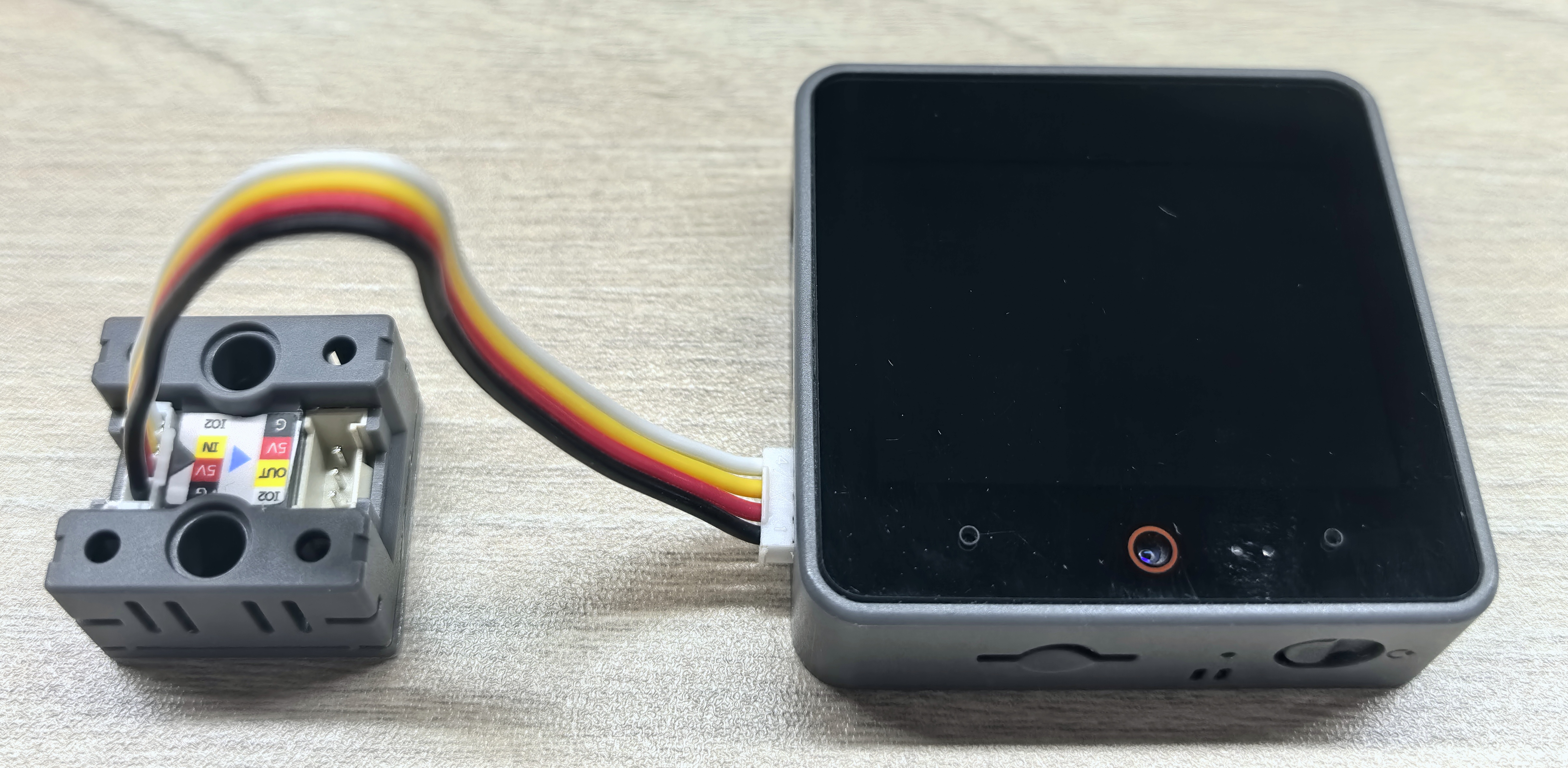

Actual connection is shown below:

Compilation Requirements

M5Stack board manager version >= 3.2.4
M5Chain library version >= 1.0.5

Pixel Mode

Single Pixel Control and Batch Write

cpp
#include "M5Chain.h"
#include "M5Unified.h"

#define TXD_PIN GPIO_NUM_2
#define RXD_PIN GPIO_NUM_1

Chain M5Chain;

chain_status_t chain_status = CHAIN_OK;
uint8_t rgb_id           = 0;
uint8_t operation_status = 0;

const uint16_t colors[] = {
    0xF800,  // Red
    0x07E0,  // Green
    0x001F,  // Blue
    0xFFE0,  // Yellow
    0xF81F,  // Magenta
    0x07FF   // Cyan
};

bool findFirstRGBDevice()
{
    // Enumerate devices and use the first RGB node
    uint16_t device_nums = 0;
    if (M5Chain.getDeviceNum(&device_nums) != CHAIN_OK || device_nums == 0) {
        Serial.println("No Chain devices found");
        return false;
    }

    device_info_t *infos = (device_info_t *)malloc(sizeof(device_info_t) * device_nums);
    if (infos == nullptr) {
        return false;
    }

    device_list_t devices;
    devices.count   = device_nums;
    devices.devices = infos;

    bool found = false;
    if (M5Chain.getDeviceList(&devices)) {
        for (uint8_t i = 0; i < devices.count; i++) {
            if (devices.devices[i].device_type == CHAIN_RGB_TYPE_CODE) {
                rgb_id = devices.devices[i].id;
                found  = true;
                break;
            }
        }
    }

    free(infos);
    if (found) {
        Serial.printf("RGB device found, id=%d\r\n", rgb_id);
    } else {
        Serial.println("No RGB device found");
    }
    return found;
}

bool prepareRGB()
{
    // Initialize pixel mode, rotation, and brightness
    if (!findFirstRGBDevice()) {
        return false;
    }

    if (M5Chain.setRGBMode(rgb_id, RGB_PIXEL_MODE, &operation_status) != CHAIN_OK || operation_status != 1) {
        return false;
    }

    M5Chain.setRGBRotation(rgb_id, RGB_ROTATION_0, &operation_status);
    M5Chain.setRGBBrightness(rgb_id, 50, &operation_status);
    M5Chain.setRGBClear(rgb_id, &operation_status);
    return true;
}

void setup()
{
    M5.begin();
    Serial.begin(115200);
    Serial.println("RGB pixel demo");
    M5Chain.begin(&Serial2, 115200, RXD_PIN, TXD_PIN);

    if (!prepareRGB()) {
        Serial.println("Chain RGB init failed");
        while (1) {
            delay(100);
        }
    } else {
        Serial.println("Chain RGB init success");
    }
}

void loop()
{
    static bool single_phase = true;
    static uint8_t single_x  = 0;
    static uint8_t single_y  = 0;
    static uint8_t block_x   = 0;
    static uint8_t block_y   = 4;
    static uint8_t color_i   = 0;

    if (single_phase) {
        // Walk through the first 4 rows with one RGB pixel
        M5Chain.setRGBClear(rgb_id, &operation_status);
        chain_status = M5Chain.setRGBPixel(rgb_id, single_x, single_y, colors[color_i], &operation_status);
        if (chain_status == CHAIN_OK && operation_status == 1) {
            Serial.printf("Single pixel: x=%d, y=%d, color=0x%04X\r\n", single_x, single_y, colors[color_i]);
        }

        delay(160);

        single_x++;
        color_i = (color_i + 1) % (sizeof(colors) / sizeof(colors[0]));
        if (single_x >= 8) {
            single_x = 0;
            single_y++;
        }

        if (single_y >= 4) {
            single_phase = false;
            block_x      = 0;
            block_y      = 4;
        }
    } else {
        // Walk through the last 4 rows with a 2x2 RGB block
        RGBPixelInfo pixels[] = {
            {block_x, block_y, colors[color_i]},
            {(uint8_t)(block_x + 1), block_y, colors[(color_i + 1) % 6]},
            {block_x, (uint8_t)(block_y + 1), colors[(color_i + 2) % 6]},
            {(uint8_t)(block_x + 1), (uint8_t)(block_y + 1), colors[(color_i + 3) % 6]}};

        M5Chain.setRGBClear(rgb_id, &operation_status);
        chain_status = M5Chain.setRGBPixel(rgb_id, pixels, sizeof(pixels) / sizeof(pixels[0]), &operation_status);
        if (chain_status == CHAIN_OK && operation_status == 1) {
            Serial.printf("RGB block: x=%d, y=%d\r\n", block_x, block_y);
        }

        delay(160);

        block_x++;
        color_i = (color_i + 1) % (sizeof(colors) / sizeof(colors[0]));
        if (block_x >= 7) {
            block_x = 0;
            block_y += 2;
        }

        if (block_y >= 8) {
            single_phase = true;
            single_x     = 0;
            single_y     = 0;
        }
    }
}

The example effect is shown below:

Character Display

cpp
#include "M5Chain.h"
#include "M5Unified.h"

#define TXD_PIN GPIO_NUM_2
#define RXD_PIN GPIO_NUM_1

Chain M5Chain;

uint8_t rgb_id           = 0;
uint8_t operation_status = 0;
const char text[]        = "I'mChainRGB";
const uint16_t colors[]  = {0xFFE0, 0xF800, 0x07E0, 0x001F, 0xFD20, 0x07FF, 0xF81F};

bool findFirstRGBDevice()
{
    // Enumerate devices and use the first RGB node
    uint16_t device_nums = 0;
    if (M5Chain.getDeviceNum(&device_nums) != CHAIN_OK || device_nums == 0) {
        Serial.println("No Chain devices found");
        return false;
    }

    device_info_t *infos = (device_info_t *)malloc(sizeof(device_info_t) * device_nums);
    if (infos == nullptr) {
        return false;
    }

    device_list_t devices;
    devices.count   = device_nums;
    devices.devices = infos;

    bool found = false;
    if (M5Chain.getDeviceList(&devices)) {
        for (uint8_t i = 0; i < devices.count; i++) {
            if (devices.devices[i].device_type == CHAIN_RGB_TYPE_CODE) {
                rgb_id = devices.devices[i].id;
                found  = true;
                break;
            }
        }
    }

    free(infos);
    if (found) {
        Serial.printf("RGB device found, id=%d\r\n", rgb_id);
    } else {
        Serial.println("No RGB device found");
    }
    return found;
}

bool prepareRGB()
{
    // Initialize pixel mode, rotation, and brightness
    if (!findFirstRGBDevice()) {
        return false;
    }

    if (M5Chain.setRGBMode(rgb_id, RGB_PIXEL_MODE, &operation_status) != CHAIN_OK || operation_status != 1) {
        return false;
    }

    M5Chain.setRGBRotation(rgb_id, RGB_ROTATION_0, &operation_status);
    M5Chain.setRGBBrightness(rgb_id, 50, &operation_status);
    M5Chain.setRGBClear(rgb_id, &operation_status);
    return true;
}

void setup()
{
    M5.begin();
    Serial.begin(115200);
    Serial.println("RGB character demo");
    M5Chain.begin(&Serial2, 115200, RXD_PIN, TXD_PIN);

    if (!prepareRGB()) {
        Serial.println("Chain RGB init failed");
        while (1) {
            delay(100);
        }
    } else {
        Serial.println("Chain RGB init success");
    }
}

void loop()
{
    static uint8_t index = 0;
    char c               = text[index];
    uint16_t color       = colors[index % (sizeof(colors) / sizeof(colors[0]))];

    // Show characters one by one with changing colors
    M5Chain.setRGBClear(rgb_id, &operation_status);
    M5Chain.setRGBPrintChar(rgb_id, c, 1, 1, color, &operation_status);
    Serial.printf("Character shown: %c, color=0x%04X\r\n", c, color);

    delay(400);

    index++;
    if (index >= sizeof(text) - 1) {
        index = 0;
    }
}

The example effect is shown below:

Custom Pattern Display and Rotation

Description

The rotation here means setting the display orientation before drawing. After the orientation is set, all subsequent drawing operations are displayed relative to that orientation. It does not directly rotate content that has already been drawn.

cpp
#include "M5Chain.h"
#include "M5Unified.h"

#define TXD_PIN GPIO_NUM_2
#define RXD_PIN GPIO_NUM_1

Chain M5Chain;

uint8_t rgb_id           = 0;
uint8_t operation_status = 0;

// 8x8 green arrow pattern
uint16_t arrow[64] = {
    0x0000, 0x0000, 0x0000, 0x07E0, 0x07E0, 0x0000, 0x0000, 0x0000,  //    ■■
    0x0000, 0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000, 0x0000,  //   ■■■■
    0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000,  //  ■■■■■■
    0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x07E0,  // ■■■■■■■■
    0x0000, 0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000, 0x0000,  //   ■■■■
    0x0000, 0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000, 0x0000,  //   ■■■■
    0x0000, 0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000, 0x0000,  //   ■■■■
    0x0000, 0x0000, 0x07E0, 0x07E0, 0x07E0, 0x07E0, 0x0000, 0x0000   //   ■■■■
};

bool findFirstRGBDevice()
{
    // Enumerate devices and use the first RGB node
    uint16_t device_nums = 0;
    if (M5Chain.getDeviceNum(&device_nums) != CHAIN_OK || device_nums == 0) {
        Serial.println("No Chain devices found");
        return false;
    }

    device_info_t *infos = (device_info_t *)malloc(sizeof(device_info_t) * device_nums);
    if (infos == nullptr) {
        return false;
    }

    device_list_t devices;
    devices.count   = device_nums;
    devices.devices = infos;

    bool found = false;
    if (M5Chain.getDeviceList(&devices)) {
        for (uint8_t i = 0; i < devices.count; i++) {
            if (devices.devices[i].device_type == CHAIN_RGB_TYPE_CODE) {
                rgb_id = devices.devices[i].id;
                found  = true;
                break;
            }
        }
    }

    free(infos);
    if (found) {
        Serial.printf("RGB device found, id=%d\r\n", rgb_id);
    } else {
        Serial.println("No RGB device found");
    }
    return found;
}

bool prepareRGB()
{
    // Initialize pixel mode and brightness
    if (!findFirstRGBDevice()) {
        return false;
    }

    if (M5Chain.setRGBMode(rgb_id, RGB_PIXEL_MODE, &operation_status) != CHAIN_OK || operation_status != 1) {
        return false;
    }

    M5Chain.setRGBBrightness(rgb_id, 50, &operation_status);
    M5Chain.setRGBClear(rgb_id, &operation_status);
    return true;
}

void setup()
{
    M5.begin();
    Serial.begin(115200);
    Serial.println("RGB custom pattern rotation demo");
    M5Chain.begin(&Serial2, 115200, RXD_PIN, TXD_PIN);

    if (!prepareRGB()) {
        Serial.println("Chain RGB init failed");
        while (1) {
            delay(100);
        }
    } else {
        Serial.println("Chain RGB init success");
    }
}

void loop()
{
    // Rotate through 0/90/180/270 degree display states
    for (uint8_t rotation = RGB_ROTATION_0; rotation <= RGB_ROTATION_270; rotation++) {
        M5Chain.setRGBRotation(rgb_id, (rgb_rotation_t)rotation, &operation_status);
        M5Chain.setRGBBufferRefresh(rgb_id, arrow, &operation_status);
        Serial.printf("Rotation set to: %d°\r\n", rotation * 90);
        delay(800);
    }
}

The example effect is shown below:

Dynamic Color Waterfall

cpp
#include "M5Chain.h"
#include "M5Unified.h"

#define TXD_PIN GPIO_NUM_2
#define RXD_PIN GPIO_NUM_1

Chain M5Chain;

uint8_t rgb_id           = 0;
uint8_t operation_status = 0;
uint16_t frame[64]       = {0};
uint8_t color_offset     = 0;

uint16_t color565(uint8_t r, uint8_t g, uint8_t b)
{
    return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3);
}

uint16_t wheel(uint8_t pos)
{
    if (pos < 85) {
        return color565(255 - pos * 3, pos * 3, 0);
    }
    if (pos < 170) {
        pos -= 85;
        return color565(0, 255 - pos * 3, pos * 3);
    }

    pos -= 170;
    return color565(pos * 3, 0, 255 - pos * 3);
}

bool findFirstRGBDevice()
{
    // Enumerate devices and use the first RGB node
    uint16_t device_nums = 0;
    if (M5Chain.getDeviceNum(&device_nums) != CHAIN_OK || device_nums == 0) {
        Serial.println("No Chain devices found");
        return false;
    }

    device_info_t *infos = (device_info_t *)malloc(sizeof(device_info_t) * device_nums);
    if (infos == nullptr) {
        return false;
    }

    device_list_t devices;
    devices.count   = device_nums;
    devices.devices = infos;

    bool found = false;
    if (M5Chain.getDeviceList(&devices)) {
        for (uint8_t i = 0; i < devices.count; i++) {
            if (devices.devices[i].device_type == CHAIN_RGB_TYPE_CODE) {
                rgb_id = devices.devices[i].id;
                found  = true;
                break;
            }
        }
    }

    free(infos);
    if (found) {
        Serial.printf("RGB device found, id=%d\r\n", rgb_id);
    } else {
        Serial.println("No RGB device found");
    }
    return found;
}

bool prepareRGB()
{
    // Initialize pixel mode, rotation, and brightness
    if (!findFirstRGBDevice()) {
        return false;
    }

    if (M5Chain.setRGBMode(rgb_id, RGB_PIXEL_MODE, &operation_status) != CHAIN_OK || operation_status != 1) {
        return false;
    }

    M5Chain.setRGBRotation(rgb_id, RGB_ROTATION_0, &operation_status);
    M5Chain.setRGBBrightness(rgb_id, 50, &operation_status);
    M5Chain.setRGBClear(rgb_id, &operation_status);
    return true;
}

void setup()
{
    M5.begin();
    Serial.begin(115200);
    Serial.println("RGB color waterfall demo");
    M5Chain.begin(&Serial2, 115200, RXD_PIN, TXD_PIN);

    if (!prepareRGB()) {
        Serial.println("Chain RGB init failed");
        while (1) {
            delay(100);
        }
    } else {
        Serial.println("Chain RGB init success");
    }
}

void loop()
{
    // Move old rows down by one row
    for (int y = 7; y > 0; y--) {
        for (int x = 0; x < 8; x++) {
            frame[y * 8 + x] = frame[(y - 1) * 8 + x];
        }
    }

    // Generate a new color row at the top
    for (int x = 0; x < 8; x++) {
        frame[x] = wheel(color_offset + x * 16);
    }

    M5Chain.setRGBBufferRefresh(rgb_id, frame, &operation_status);
    Serial.printf("Waterfall frame offset: %d\r\n", color_offset);

    color_offset += 4;
    delay(80);
}

The example effect is shown below:

String Scroll Mode

cpp
#include "M5Chain.h"
#include "M5Unified.h"

#define TXD_PIN GPIO_NUM_2
#define RXD_PIN GPIO_NUM_1

Chain M5Chain;

chain_status_t chain_status = CHAIN_OK;
uint8_t rgb_id           = 0;
uint8_t operation_status = 0;
const char text[]        = "Hi I'm Chain RGB! ";

bool findFirstRGBDevice()
{
    // Enumerate devices and use the first RGB node
    uint16_t device_nums = 0;
    if (M5Chain.getDeviceNum(&device_nums) != CHAIN_OK || device_nums == 0) {
        Serial.println("No Chain devices found");
        return false;
    }

    device_info_t *infos = (device_info_t *)malloc(sizeof(device_info_t) * device_nums);
    if (infos == nullptr) {
        return false;
    }

    device_list_t devices;
    devices.count   = device_nums;
    devices.devices = infos;

    bool found = false;
    if (M5Chain.getDeviceList(&devices)) {
        for (uint8_t i = 0; i < devices.count; i++) {
            if (devices.devices[i].device_type == CHAIN_RGB_TYPE_CODE) {
                rgb_id = devices.devices[i].id;
                found  = true;
                break;
            }
        }
    }

    free(infos);
    if (found) {
        Serial.printf("RGB device found, id=%d\r\n", rgb_id);
    } else {
        Serial.println("No RGB device found");
    }
    return found;
}

bool prepareRGB()
{
    // Switch to string scroll mode and set basic parameters
    if (!findFirstRGBDevice()) {
        return false;
    }

    if (M5Chain.setRGBMode(rgb_id, RGB_STRING_SCROLL_MODE, &operation_status) != CHAIN_OK ||
        operation_status != 1) {
        return false;
    }

    M5Chain.setRGBRotation(rgb_id, RGB_ROTATION_0, &operation_status);
    M5Chain.setRGBBrightness(rgb_id, 30, &operation_status);
    return true;
}

void setup()
{
    M5.begin();
    Serial.begin(115200);
    Serial.println("RGB string scroll demo");
    M5Chain.begin(&Serial2, 115200, RXD_PIN, TXD_PIN);

    if (!prepareRGB()) {
        Serial.println("Chain RGB init failed");
        while (1) {
            delay(100);
        }
    } else {
        Serial.println("Chain RGB init success");
    }

    chain_status = M5Chain.setRGBStringScroll(rgb_id, text, RGB_SCROLL_LEFT, RGB_SCROLL_MODE_LOOP, 100,
                                              RGB_SCROLL_COLOR_GRADIENT, &operation_status);
    if(chain_status == CHAIN_OK && operation_status == 1) {
        Serial.printf("String scroll started: %s\r\n", text);
    }
}

void loop()
{
    delay(1000);
}

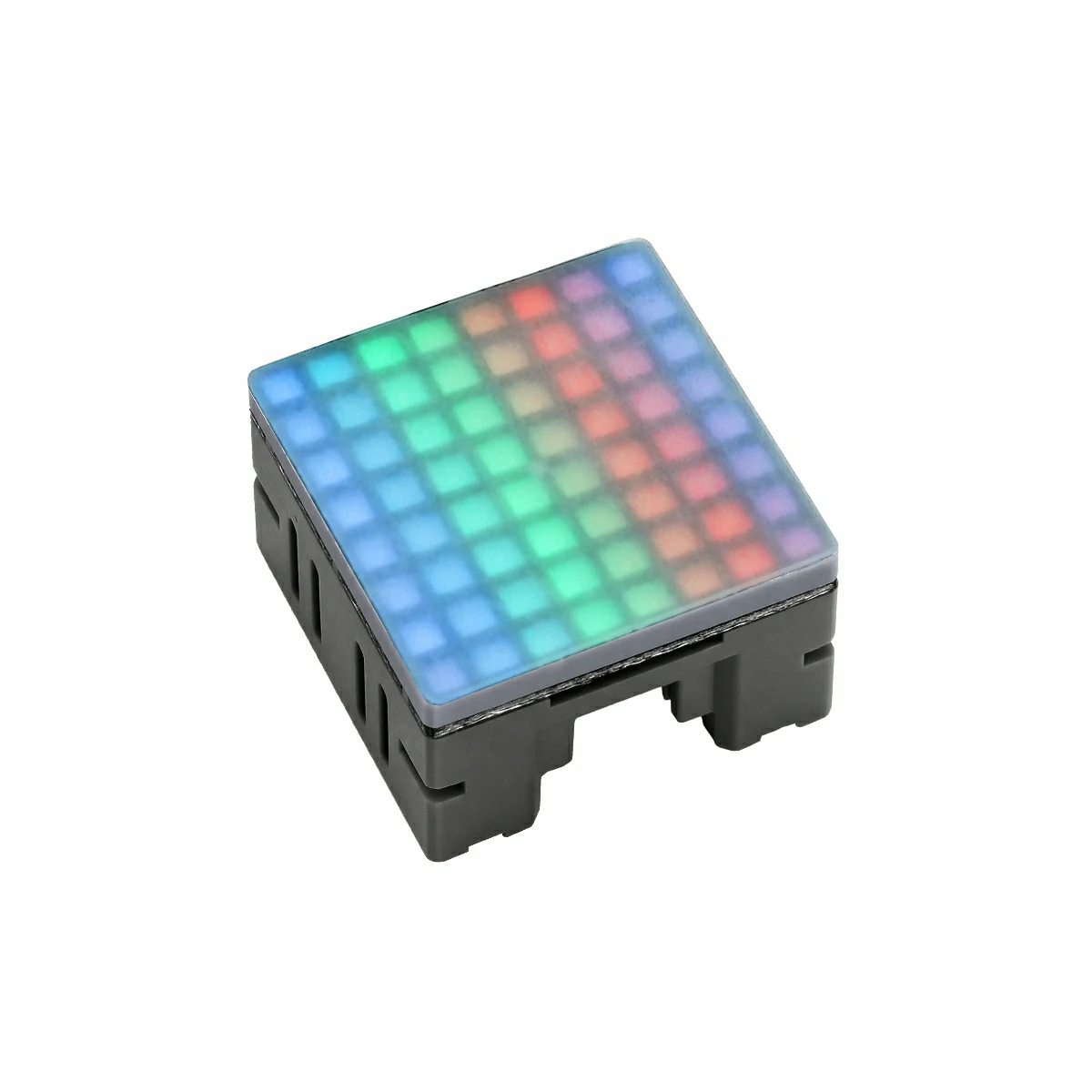

The example effect is shown below:

Next 1. Arduino Setup - 1. Arduino IDE Install

1. Arduino Setup

2. Devices & Examples

Tab5

Arduino Nesso N1

Atom VoiceS3R

Atom-Lite / Atom-Matrix

AtomS3 / AtomS3-Lite

AtomS3U

AtomS3R

Basic/Gray

Capsule

Cardputer / -Adv

Chain DualKey

Core2/Core2 For AWS

CoreInk

CoreS3

StackChan
