Unit ENV-Pro Arduino Tutorial

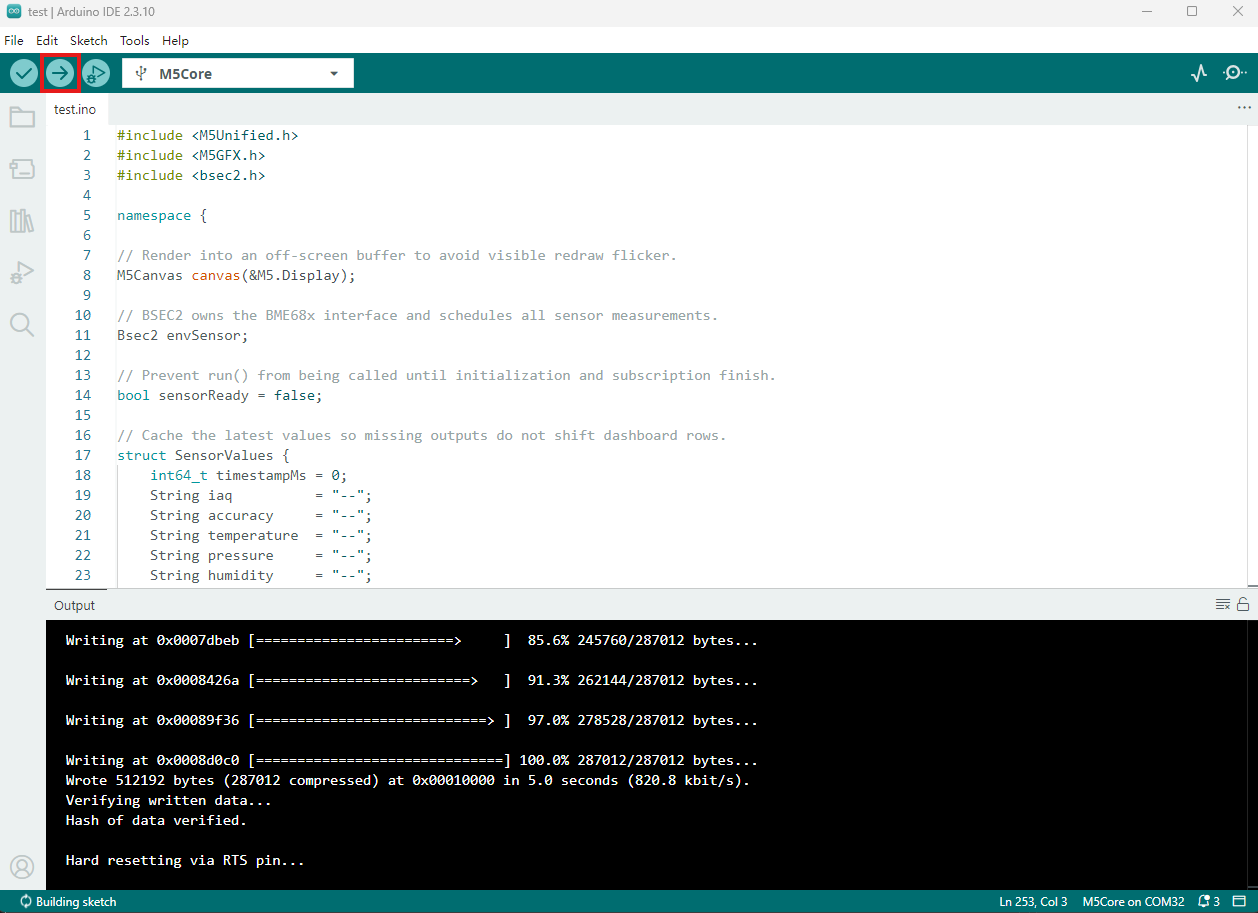

#include <M5Unified.h>
#include <M5GFX.h>
#include <bsec2.h>

namespace {

// Render into an off-screen buffer to avoid visible redraw flicker.
M5Canvas canvas(&M5.Display);

// BSEC2 owns the BME68x interface and schedules all sensor measurements.
Bsec2 envSensor;

// Prevent run() from being called until initialization and subscription finish.
bool sensorReady = false;

// Cache the latest values so missing outputs do not shift dashboard rows.
struct SensorValues {
    int64_t timestampMs = 0;
    String iaq          = "--";
    String accuracy     = "--";
    String temperature  = "--";
    String pressure     = "--";
    String humidity     = "--";
    String gas          = "--";
    String stabilized   = "--";
    String runIn        = "--";
};

SensorValues values;

// Shared colors and row geometry for the 320 x 240 dashboard.
constexpr uint16_t kBackground = TFT_BLACK;
constexpr uint16_t kHeader     = TFT_DARKCYAN;
constexpr uint16_t kLabel      = TFT_LIGHTGREY;
constexpr uint16_t kValue      = TFT_WHITE;
constexpr int32_t kMargin      = 10;
constexpr int32_t kFirstRowY   = 51;
constexpr int32_t kRowHeight   = 21;

// Draw startup, waiting, warning, and error messages as a full page.
void showStatusPage(const char* heading, const String& message,
                    uint16_t accent = kHeader) {
    canvas.fillSprite(kBackground);
    canvas.fillRect(0, 0, canvas.width(), 34, accent);

    canvas.setFont(&fonts::FreeMonoBold9pt7b);
    canvas.setTextDatum(textdatum_t::middle_left);
    canvas.setTextColor(TFT_WHITE, accent);
    canvas.drawString(heading, kMargin, 17);

    canvas.setTextDatum(textdatum_t::top_left);
    canvas.setTextColor(kValue, kBackground);
    canvas.setCursor(kMargin, 52);
    canvas.setTextWrap(true);
    canvas.println(message);
    canvas.pushSprite(0, 0);
}

// Draw one fixed label/value row with the value aligned to the right edge.
void drawRow(int32_t row, const char* label, const String& value,
             uint16_t valueColor = kValue) {
    const int32_t y = kFirstRowY + row * kRowHeight;

    canvas.setTextDatum(textdatum_t::top_left);
    canvas.setTextColor(kLabel, kBackground);
    canvas.drawString(label, kMargin, y);

    canvas.setTextDatum(textdatum_t::top_right);
    canvas.setTextColor(valueColor, kBackground);
    canvas.drawString(value, canvas.width() - kMargin, y);
}

// Compose a complete frame from the most recent cached sensor values.

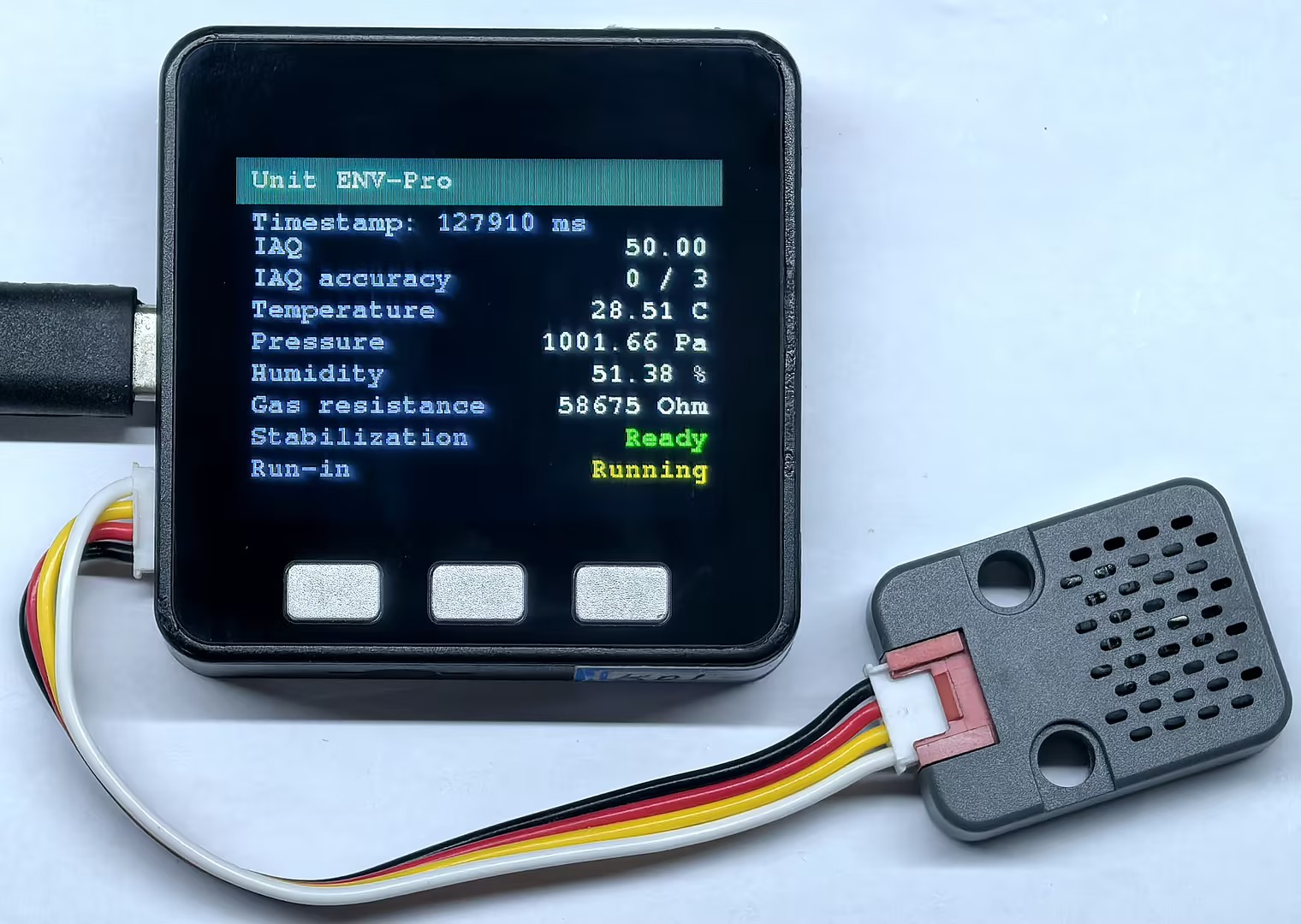

void drawDashboard() {
    canvas.fillSprite(kBackground);
    canvas.setTextWrap(false);

    canvas.fillRect(0, 0, canvas.width(), 31, kHeader);
    canvas.setFont(&fonts::FreeMonoBold9pt7b);
    canvas.setTextDatum(textdatum_t::middle_left);
    canvas.setTextColor(TFT_WHITE, kHeader);
    canvas.drawString("Unit ENV-Pro", kMargin, 15);

    // BSEC timestamps are delivered in nanoseconds and shown here in milliseconds.
    canvas.setTextDatum(textdatum_t::top_left);
    canvas.setTextColor(TFT_SILVER, kBackground);
    canvas.setCursor(kMargin, 35);
    canvas.printf("Timestamp: %lld ms",
                  static_cast<long long>(values.timestampMs));

    canvas.setFont(&fonts::FreeMonoBold9pt7b);
    drawRow(0, "IAQ", values.iaq);
    drawRow(1, "IAQ accuracy", values.accuracy);
    drawRow(2, "Temperature", values.temperature);
    drawRow(3, "Pressure", values.pressure);
    drawRow(4, "Humidity", values.humidity);
    drawRow(5, "Gas resistance", values.gas);
    drawRow(6, "Stabilization", values.stabilized,
            values.stabilized == "Ready" ? TFT_GREEN : TFT_YELLOW);
    drawRow(7, "Run-in", values.runIn,
            values.runIn == "Complete" ? TFT_GREEN : TFT_YELLOW);

    // Push the finished frame once to keep updates flicker-free.
    canvas.pushSprite(0, 0);
}

// BSEC uses negative codes for errors and positive codes for warnings.
bool hasFatalStatus(const Bsec2& bsec) {
    return bsec.status < BSEC_OK || bsec.sensor.status < BME68X_OK;
}

// Merge BSEC and BME68x status codes into one readable screen message.
void checkBsecStatus(const Bsec2& bsec) {
    String message;
    uint16_t accent = TFT_ORANGE;

    if (bsec.status < BSEC_OK) {
        message += "BSEC error: " + String(bsec.status) + "\n";
        accent = TFT_RED;
    } else if (bsec.status > BSEC_OK) {
        message += "BSEC warning: " + String(bsec.status) + "\n";
    }

    if (bsec.sensor.status < BME68X_OK) {
        message += "BME68X error: " + String(bsec.sensor.status) + "\n";
        accent = TFT_RED;
    } else if (bsec.sensor.status > BME68X_OK) {
        message += "BME68X warning: " + String(bsec.sensor.status) + "\n";
    }

    if (message.isEmpty()) {
        message = "The sensor operation did not complete.";
        accent = TFT_RED;
    }

    showStatusPage(accent == TFT_RED ? "Sensor error" : "Sensor warning",
                   message, accent);
}

// Convert each BSEC output into display-ready text and refresh the dashboard.
void newDataCallback(const bme68xData data, const bsecOutputs outputs,
                     Bsec2 bsec) {
    (void)data;
    (void)bsec;

    if (outputs.nOutputs == 0) {
        return;
    }

    values.timestampMs = outputs.output[0].time_stamp / INT64_C(1000000);

    // Each callback may contain only a subset of the subscribed outputs.
    for (uint8_t i = 0; i < outputs.nOutputs; ++i) {
        const bsecData& output = outputs.output[i];

        switch (output.sensor_id) {
            case BSEC_OUTPUT_IAQ:
                values.iaq = String(output.signal, 2);
                values.accuracy = String(output.accuracy) + " / 3";
                break;
            case BSEC_OUTPUT_RAW_TEMPERATURE:
                values.temperature = String(output.signal, 2) + " C";
                break;
            case BSEC_OUTPUT_RAW_PRESSURE:
                values.pressure = String(output.signal, 2) + " Pa";
                break;
            case BSEC_OUTPUT_RAW_HUMIDITY:
                values.humidity = String(output.signal, 2) + " %";
                break;
            case BSEC_OUTPUT_RAW_GAS:
                values.gas = String(output.signal, 0) + " Ohm";
                break;
            case BSEC_OUTPUT_STABILIZATION_STATUS:
                values.stabilized = output.signal > 0.0f ? "Ready" : "Warming up";
                break;
            case BSEC_OUTPUT_RUN_IN_STATUS:
                values.runIn = output.signal > 0.0f ? "Complete" : "Running";
                break;
            default:
                break;
        }
    }

    drawDashboard();
}

}  // namespace

void setup() {
    // M5Unified must initialize the display before the canvas is allocated.
    auto config = M5.config();
    M5.begin(config);

    // An 8-bit sprite keeps full-screen double buffering within ESP32 RAM.
    canvas.setColorDepth(8);
    if (canvas.createSprite(M5.Display.width(), M5.Display.height()) == nullptr) {
        // Use the physical display only when the off-screen buffer cannot be created.
        M5.Display.fillScreen(TFT_BLACK);
        M5.Display.setTextColor(TFT_RED, TFT_BLACK);
        M5.Display.setCursor(10, 10);
        M5.Display.println("M5Canvas allocation failed");
        return;
    }

    // Start the external I2C bus and connect to the BME68x at address 0x77.
    showStatusPage("Unit ENV-Pro", "Initializing sensor...");
    Wire.begin(21, 22);

    if (!envSensor.begin(BME68X_I2C_ADDR_HIGH, Wire)) {
        checkBsecStatus(envSensor);
        if (hasFatalStatus(envSensor)) {
            return;
        }
    }

    // Request the values needed by the on-screen dashboard.
    bsecSensor sensorList[] = {
        BSEC_OUTPUT_IAQ,
        BSEC_OUTPUT_RAW_TEMPERATURE,
        BSEC_OUTPUT_RAW_PRESSURE,
        BSEC_OUTPUT_RAW_HUMIDITY,
        BSEC_OUTPUT_RAW_GAS,
        BSEC_OUTPUT_STABILIZATION_STATUS,
        BSEC_OUTPUT_RUN_IN_STATUS,
    };

    // The wrapper returns false for warnings too; only negative status is fatal.
    if (!envSensor.updateSubscription(sensorList, ARRAY_LEN(sensorList),
                                      BSEC_SAMPLE_RATE_LP)) {
        checkBsecStatus(envSensor);
        if (hasFatalStatus(envSensor)) {
            return;
        }
    }

    // BSEC invokes the callback whenever a processed output set is ready.
    envSensor.attachCallback(newDataCallback);
    sensorReady = true;
    showStatusPage("Unit ENV-Pro", "Waiting for sensor data...");
}

void loop() {
    // Keep M5Unified services responsive even though buttons are not used here.
    M5.update();

    // Frequent non-blocking calls let BSEC keep its requested sample timing.
    if (sensorReady && !envSensor.run()) {
        checkBsecStatus(envSensor);
        if (hasFatalStatus(envSensor)) {
            sensorReady = false;
        }
    }
}
