Unit C6L RGB LED

APIs and example programs related to the Unit C6L RGB LED.

Example Program

Compilation Requirements

  • M5Stack Board Manager version >= 3.2.3
  • Board option = M5UnitC6L
  • M5Unified library version >= 0.2.10
  • Adafruit NeoPixel library version >= 1.15.1
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56
#define LED_PIN  2
#define NUM_LEDS 1

#include <M5Unified.h>
#include <Adafruit_NeoPixel.h>

Adafruit_NeoPixel led(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  M5.begin();

  led.begin();
  led.show();
}

void loop() {
  // Red
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(255, 0, 0)); }
  led.show();
  delay(500);

  // Green
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(0, 255, 0)); }
  led.show();
  delay(500);

  // Blue
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(0, 0, 255)); }
  led.show();
  delay(500);

  // Yellow
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(255, 255, 0)); }
  led.show();
  delay(500);

  // Magenta
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(255, 0, 255)); }
  led.show();
  delay(500);

  // Cyan
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(0, 255, 255)); }
  led.show();
  delay(500);

  // White (all on)
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(255, 255, 255)); }
  led.show();
  delay(500);

  // Black (all off)
  for (char i = 0; i <= NUM_LEDS; i++) { led.setPixelColor(i, led.Color(0, 0, 0)); }
  led.show();
  delay(500);
}

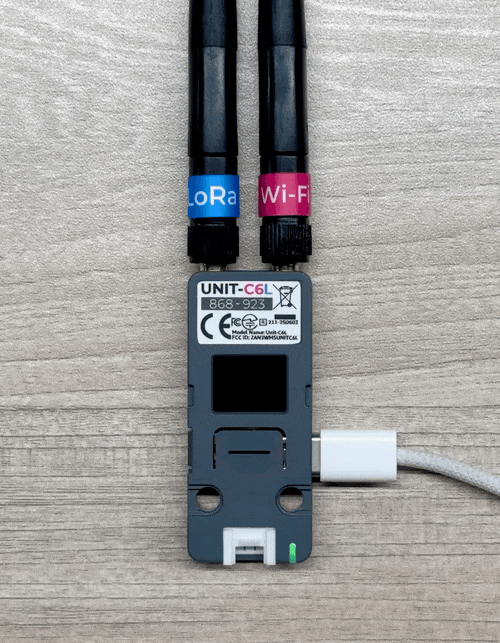

Execution Result:

API

The Unit C6L RGB LED uses the Adafruit NeoPixel library. For more details on the available APIs, please refer to the following documents:
