Arduino Nesso N1 IR NEC

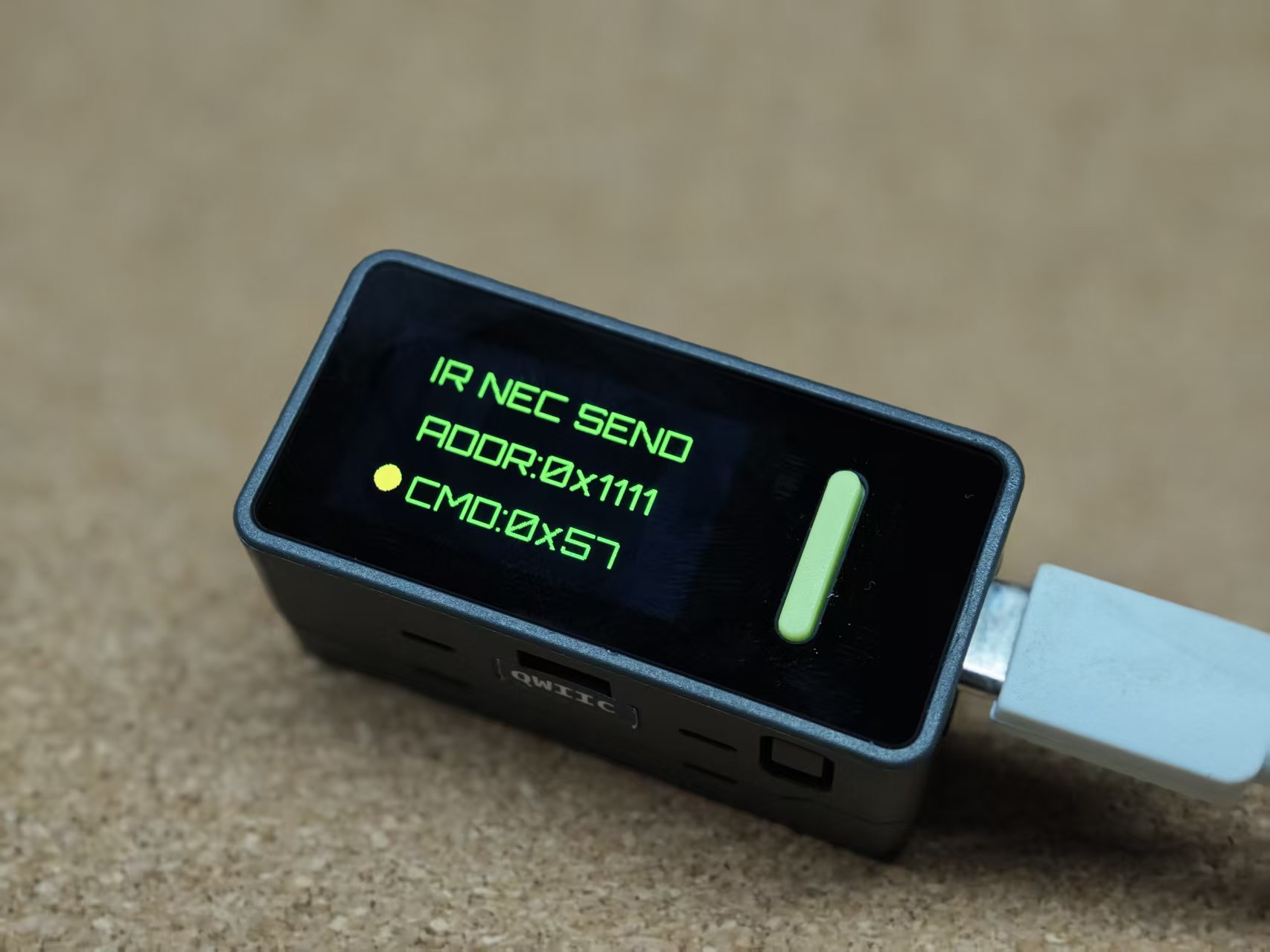

Arduino Nesso N1 IR driver example program. This example uses the Arduino-IRremote - Lib to implement NEC encoding.
Example Program
Compilation Requirements
- M5Stack board manager version >= 3.2.5
- Board option = ArduinoNessoN1
- M5GFX library version >= 0.2.17
- M5Unified library version >= 0.2.11
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
#define DISABLE_CODE_FOR_RECEIVER // Disables restarting receiver after each
// send. Saves 450 bytes of program memory and
// 269 bytes of RAM if receiving functions are
// not used.
#define SEND_PWM_BY_TIMER
#define IR_TX_PIN 9
#include "M5Unified.h"
#include <IRremote.hpp> // include the library
// IRremote: https://github.com/Arduino-IRremote/Arduino-IRremote
uint8_t sCommand = 0x34;
uint8_t sRepeats = 0;
void setup() {
auto cfg = M5.config();
M5.begin(cfg);
M5.Display.setRotation(1);
M5.Display.setTextColor(GREEN);
M5.Display.setTextDatum(middle_center);
M5.Display.setTextFont(&fonts::Orbitron_Light_24);
M5.Display.setTextSize(1);
IrSender.begin(DISABLE_LED_FEEDBACK); // Start with IR_SEND_PIN as send pin
IrSender.setSendPin(IR_TX_PIN);
}
void loop() {
Serial.println();
Serial.print(F("Send now: address=0x1111, command=0x"));
Serial.print(sCommand, HEX);
Serial.print(F(", repeats="));
Serial.print(sRepeats);
Serial.println();
M5.Display.clear();
M5.Display.drawString("IR NEC SEND", M5.Display.width() / 2,
M5.Display.height() / 2 - 40);
M5.Display.drawString("ADDR:0x1111", M5.Display.width() / 2,
M5.Display.height() / 2);
M5.Display.drawString("CMD:0x" + String(sCommand, HEX),
M5.Display.width() / 2,
M5.Display.height() / 2 + 40);
Serial.println(F("Send standard NEC with 16-bit address"));
M5.Display.fillCircle(32, 105, 8, GREEN);
IrSender.sendNEC(0x1111, sCommand, sRepeats);
// IrSender.sendOnkyo(0x1111, 0x2223, sRepeats);
/*
* Increment send values
*/
sCommand += 1;
delay(500);
M5.Display.fillCircle(32, 105, 8, YELLOW);
delay(500);
}
