Unit CamS3-5MP microSD Card

Example program for capturing photos with Unit CamS3-5MP and saving them to a microSD card.

Example Program

Compilation Requirements

Compilation Version Requirements
There are two versions of the built-in firmware for the Unit CamS3-5MP. Before use, please refer to Unit CamS3-5MP Quick Start to read the version information, and configure the corresponding compilation environment according to the actual version you are using.

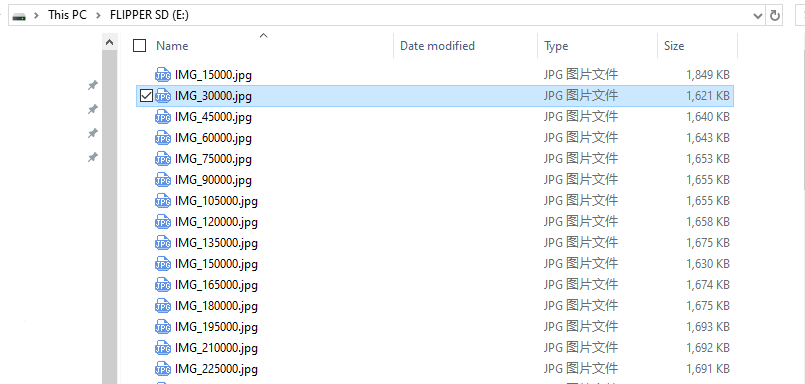

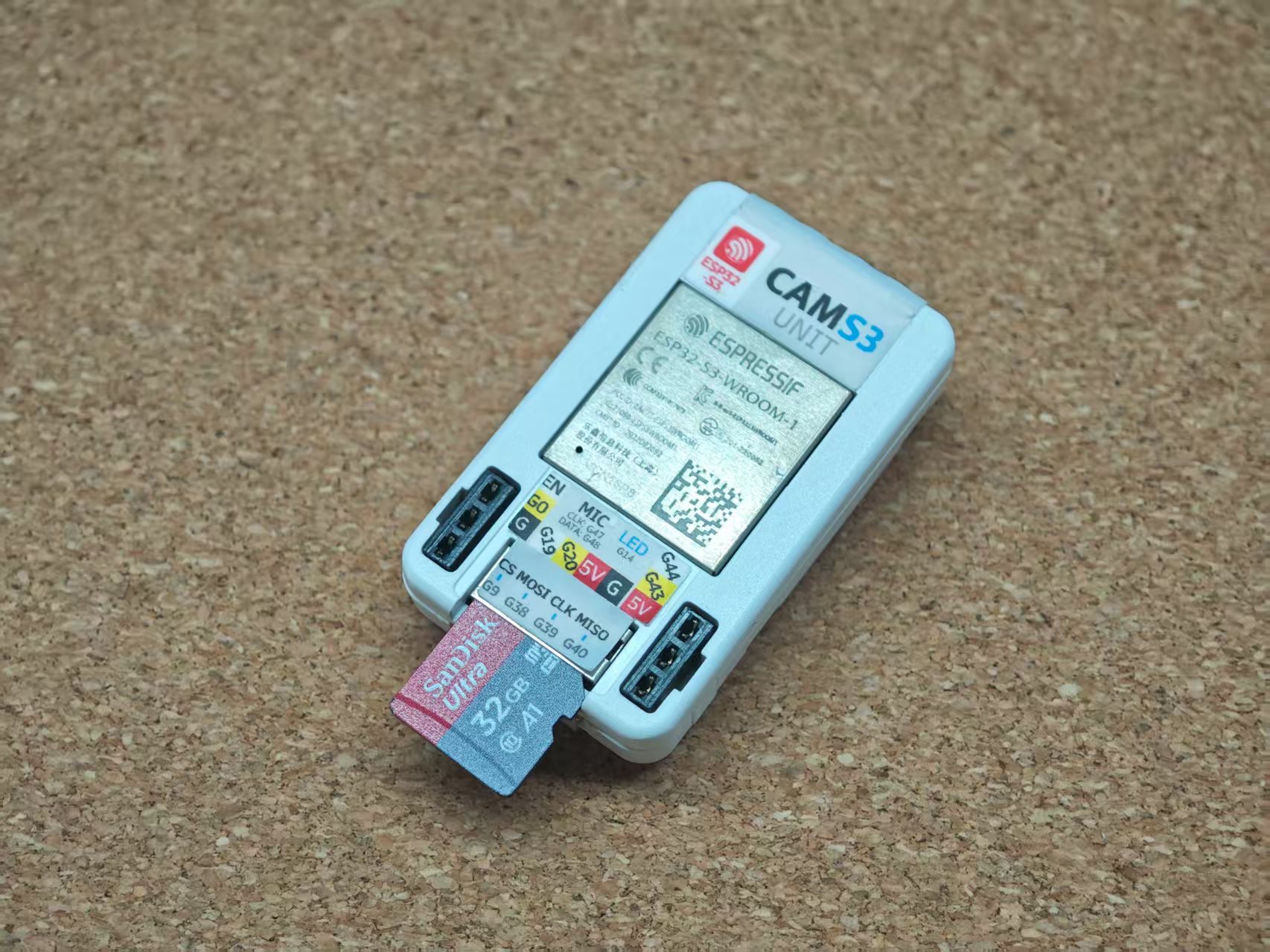

Please insert the microSD card before powering on the device. After startup, the device will take photos at regular intervals and save them to the microSD card. The captured photos will be named using the runtime since power-on (IMG_{millis}.jpg). Upon reboot, files with the same name will be overwritten.

cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111
#include <WiFi.h>
#include "esp_camera.h"
#include "FS.h"
#include "SD.h"
#include "SPI.h"

#define SD_SPI_CS_PIN    9
#define SD_SPI_MOSI_PIN 38
#define SD_SPI_SCK_PIN  39
#define SD_SPI_MISO_PIN 40

#define CAPTURE_INTERVAL 15000

#define PWDN_GPIO_NUM  -1
#define RESET_GPIO_NUM 21
#define XCLK_GPIO_NUM  11
#define SIOD_GPIO_NUM  17
#define SIOC_GPIO_NUM  41

#define Y9_GPIO_NUM    13
#define Y8_GPIO_NUM    4
#define Y7_GPIO_NUM    10
#define Y6_GPIO_NUM    5
#define Y5_GPIO_NUM    7
#define Y4_GPIO_NUM    16
#define Y3_GPIO_NUM    15
#define Y2_GPIO_NUM    6
#define VSYNC_GPIO_NUM 42
#define HREF_GPIO_NUM  18
#define PCLK_GPIO_NUM  12
#define LED_GPIO_NUM   14

unsigned long lastCaptureTime = 0;

void setup() {
  Serial.begin(115200);
  Serial.println("Camera + SD Card Capture Demo");

  SPI.begin(SD_SPI_SCK_PIN, SD_SPI_MISO_PIN, SD_SPI_MOSI_PIN, SD_SPI_CS_PIN);
  if (!SD.begin(SD_SPI_CS_PIN, SPI, 40000000)) {
    Serial.println("SD Card Mount Failed");
    return;
  }

  uint8_t cardType = SD.cardType();
  if (cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }
  Serial.println("SD Card initialized.");

  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer   = LEDC_TIMER_0;
  config.pin_d0       = Y2_GPIO_NUM;
  config.pin_d1       = Y3_GPIO_NUM;
  config.pin_d2       = Y4_GPIO_NUM;
  config.pin_d3       = Y5_GPIO_NUM;
  config.pin_d4       = Y6_GPIO_NUM;
  config.pin_d5       = Y7_GPIO_NUM;
  config.pin_d6       = Y8_GPIO_NUM;
  config.pin_d7       = Y9_GPIO_NUM;
  config.pin_xclk     = XCLK_GPIO_NUM;
  config.pin_pclk     = PCLK_GPIO_NUM;
  config.pin_vsync    = VSYNC_GPIO_NUM;
  config.pin_href     = HREF_GPIO_NUM;
  config.pin_sccb_sda = SIOD_GPIO_NUM;
  config.pin_sccb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn     = PWDN_GPIO_NUM;
  config.pin_reset    = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;
  config.frame_size   = FRAMESIZE_5MP;
  config.fb_location  = CAMERA_FB_IN_PSRAM;
  config.jpeg_quality = 63;
  config.fb_count     = 1;
  config.grab_mode    = CAMERA_GRAB_WHEN_EMPTY;

  esp_err_t err = esp_camera_init(&config);
  if (err != ESP_OK) {
    Serial.printf("Camera init failed with error 0x%x\n", err);
    return;
  }

  Serial.println("Camera initialized.");
}

void loop() {
  unsigned long now = millis();
  if (now - lastCaptureTime >= CAPTURE_INTERVAL) {
    lastCaptureTime = now;

    camera_fb_t* fb = esp_camera_fb_get();
    if (!fb) {
      Serial.println("Camera capture failed");
      return;
    }

    String path = "/IMG_" + String(millis()) + ".jpg";
    File file = SD.open(path.c_str(), FILE_WRITE);
    if (!file) {
      Serial.println("Failed to open file for writing");
    } else {
      file.write(fb->buf, fb->len);
      file.close();

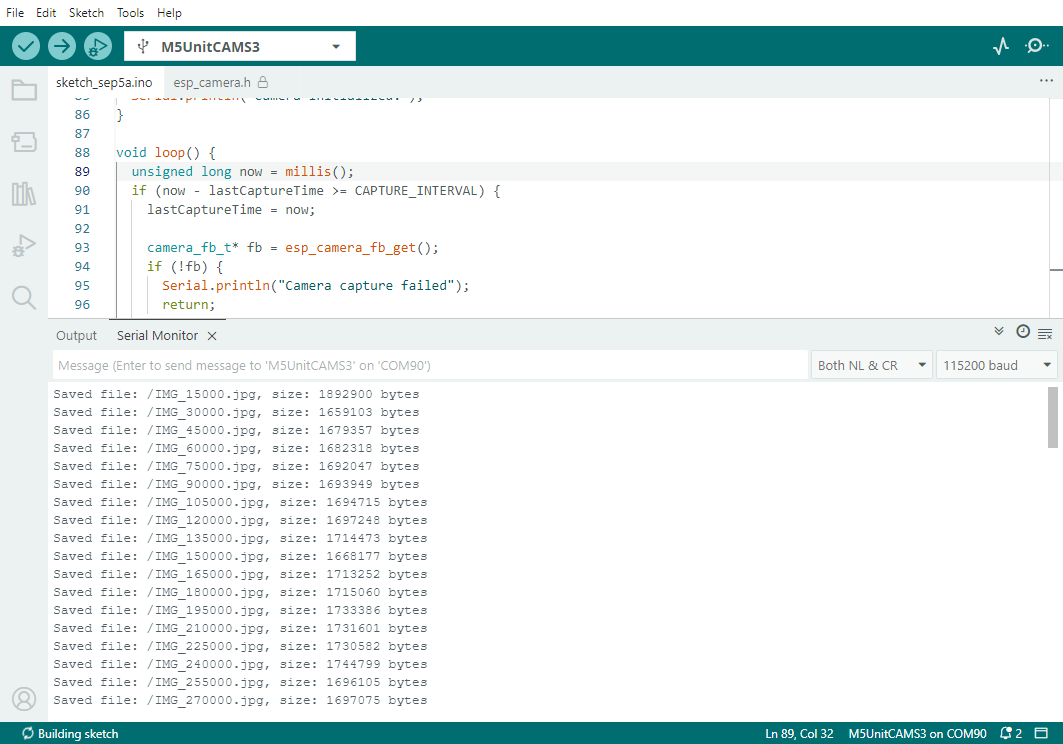

      Serial.printf("Saved file: %s, size: %d bytes\n", path.c_str(), fb->len);
    }

    esp_camera_fb_return(fb);
  }
}

API

The Unit CamS3-5MP microSD card functionality uses Arduino's built-in SD library. For more related APIs, please refer to the documents below:
