PaperColor RTC クロック
PaperColor RTC クロックに関する API とサンプルプログラムです。
サンプルプログラム
コンパイル要件
- M5Stack ボードマネージャバージョン >= 3.2.7
- 開発ボードオプション = M5PaperColor
- M5Unified ライブラリバージョン >= 0.2.15
- M5GFX ライブラリバージョン >= 0.2.21
- M5PM1 ライブラリバージョン >= 1.0.1

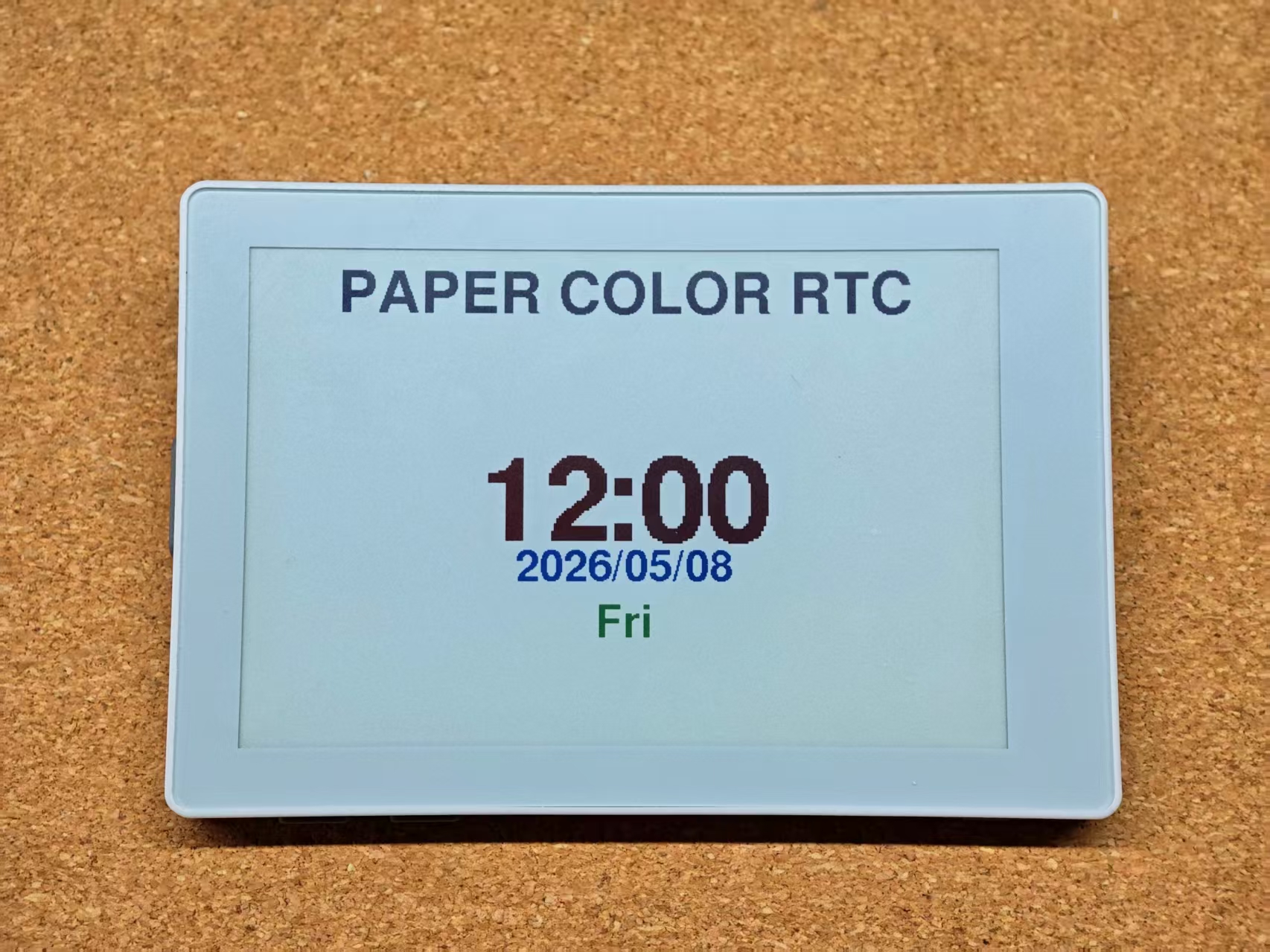

ローカル時刻の設定
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111
#include <Arduino.h>
#include <M5GFX.h>
#include <M5Unified.h>
#include <M5PM1.h>
M5Canvas canvas(&M5.Display);
M5PM1 pm1;
static constexpr const char* const wd[7] = {"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"};
static int last_drawn_minute = -1;
static bool pm1_ready = false;
static void drawScreen(const m5::rtc_datetime_t& dt)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
char date_buf[32];
char hm_buf[16];
snprintf(date_buf, sizeof(date_buf), "%04d/%02d/%02d", dt.date.year, dt.date.month, dt.date.date);
snprintf(hm_buf, sizeof(hm_buf), "%02d:%02d", dt.time.hours, dt.time.minutes);
canvas.fillSprite(WHITE);
canvas.setTextDatum(top_center);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextColor(BLACK);
canvas.drawString("PAPER COLOR RTC", w / 2, 18);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextSize(2);
canvas.setTextColor(RED);
canvas.drawString(hm_buf, w / 2, h / 2 - 36);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(BLUE);
canvas.drawString(date_buf, w / 2, h / 2 + 42);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(GREEN);
canvas.drawString(wd[dt.date.weekDay], w / 2, h / 2 + 86);
canvas.pushSprite(0, 0);
}
static void drawErrorScreen(const char* message)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(WHITE);
canvas.setTextDatum(middle_center);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextColor(RED);
canvas.drawString(message, w / 2, h / 2);
canvas.pushSprite(0, 0);
}
void setup(void)
{
auto cfg = M5.config();
cfg.clear_display = false;
M5.begin(cfg);
Serial.begin(115200);
M5.Display.setEpdMode(epd_mode_t::epd_fastest);
M5.Display.setRotation(1);
canvas.createSprite(M5.Display.width(), M5.Display.height());
m5pm1_err_t err = pm1.begin(&M5.In_I2C, M5PM1_DEFAULT_ADDR, M5PM1_I2C_FREQ_100K);
pm1_ready = (err == M5PM1_OK);
if (pm1_ready) {
pm1.setLdoEnable(true);
}
if (!M5.Rtc.isEnabled()) {
Serial.println("RTC not found.");
drawErrorScreen("RTC not found.");
for (;;) {
vTaskDelay(pdMS_TO_TICKS(1000));
}
}
Serial.println("RTC found.");
M5.Rtc.setDateTime({{2026, 5, 8}, {12, 0, 0}});
Serial.println("RTC demo time set to 2026/05/08 12:00:00");
auto dt = M5.Rtc.getDateTime();
drawScreen(dt);
last_drawn_minute = dt.time.minutes;
}
void loop(void)
{
auto dt = M5.Rtc.getDateTime();
if (dt.time.minutes != last_drawn_minute) {
last_drawn_minute = dt.time.minutes;
Serial.printf("RTC: %04d/%02d/%02d (%s) %02d:%02d:%02d\r\n", dt.date.year, dt.date.month, dt.date.date,
wd[dt.date.weekDay], dt.time.hours, dt.time.minutes, dt.time.seconds);
drawScreen(dt);
}
delay(100);
}

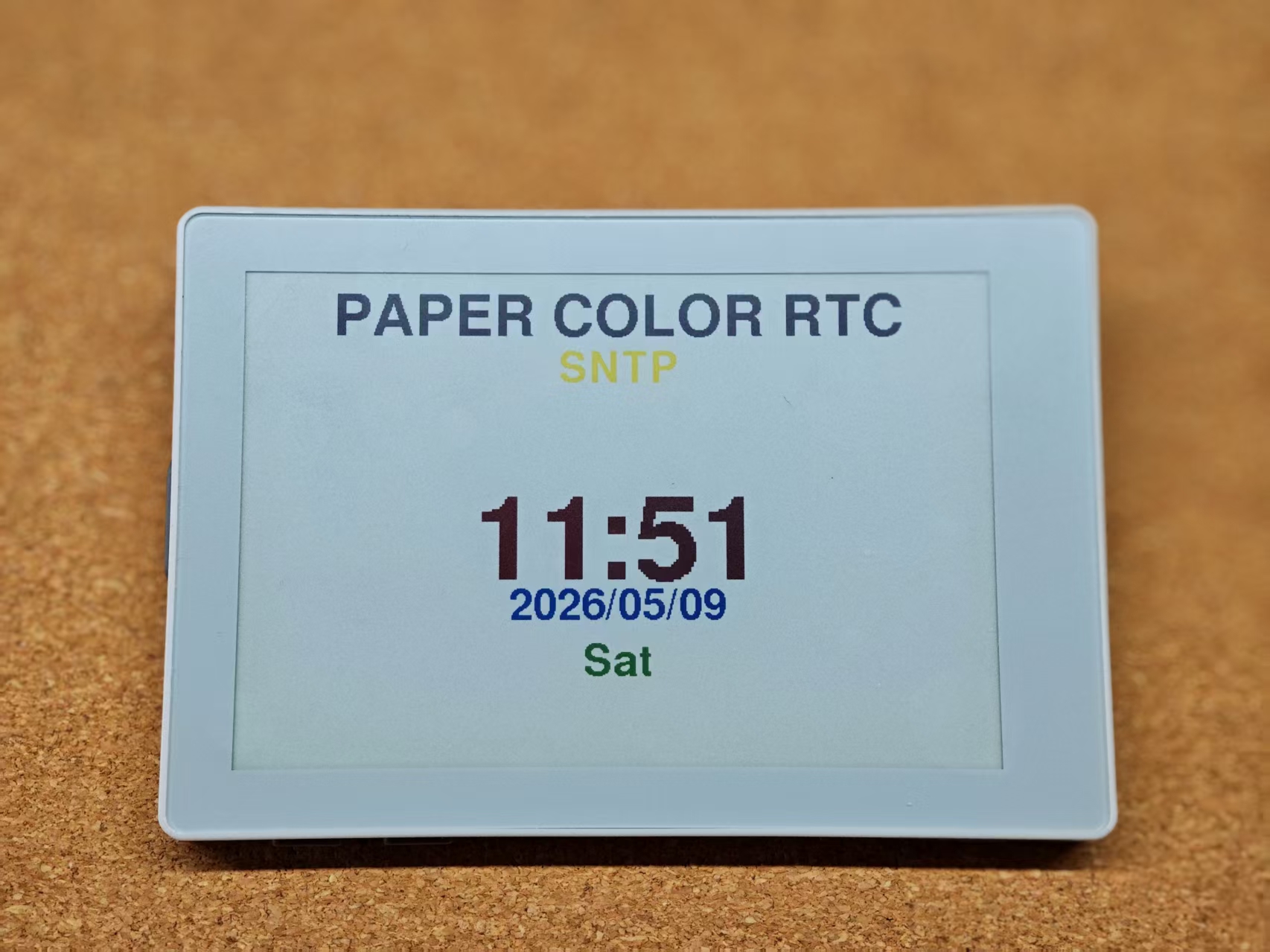

SNTP ネットワーク時刻同期
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217
#include <Arduino.h>
#include <M5GFX.h>
#include <M5Unified.h>
#include <M5PM1.h>
#include <WiFi.h>
#include <esp_sntp.h>
#include <sntp.h>
#define NTP_TIMEZONE "UTC-8"
#define NTP_SERVER1 "0.pool.ntp.org"
#define NTP_SERVER2 "1.pool.ntp.org"
#define NTP_SERVER3 "2.pool.ntp.org"
static constexpr uint32_t WIFI_CONNECT_TIMEOUT_MS = 20000;
static constexpr uint32_t SNTP_SYNC_TIMEOUT_MS = 30000;
M5Canvas canvas(&M5.Display);
M5PM1 pm1;
const char* ssid = "ssid";
const char* password = "password";
static constexpr const char* const wd[7] = {"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"};
static int last_drawn_minute = -1;
static bool pm1_ready = false;
static void drawScreen(const m5::rtc_datetime_t& dt)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
char date_buf[32];
char hm_buf[16];
snprintf(date_buf, sizeof(date_buf), "%04d/%02d/%02d", dt.date.year, dt.date.month, dt.date.date);
snprintf(hm_buf, sizeof(hm_buf), "%02d:%02d", dt.time.hours, dt.time.minutes);
canvas.fillSprite(WHITE);
canvas.setTextDatum(top_center);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextColor(BLACK);
canvas.drawString("PAPER COLOR RTC", w / 2, 18);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(YELLOW);
canvas.drawString("SNTP", w / 2, 66);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextSize(2);
canvas.setTextColor(RED);
canvas.drawString(hm_buf, w / 2, h / 2 - 22);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(BLUE);
canvas.drawString(date_buf, w / 2, h / 2 + 56);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(GREEN);
canvas.drawString(wd[dt.date.weekDay], w / 2, h / 2 + 100);
canvas.pushSprite(0, 0);
}

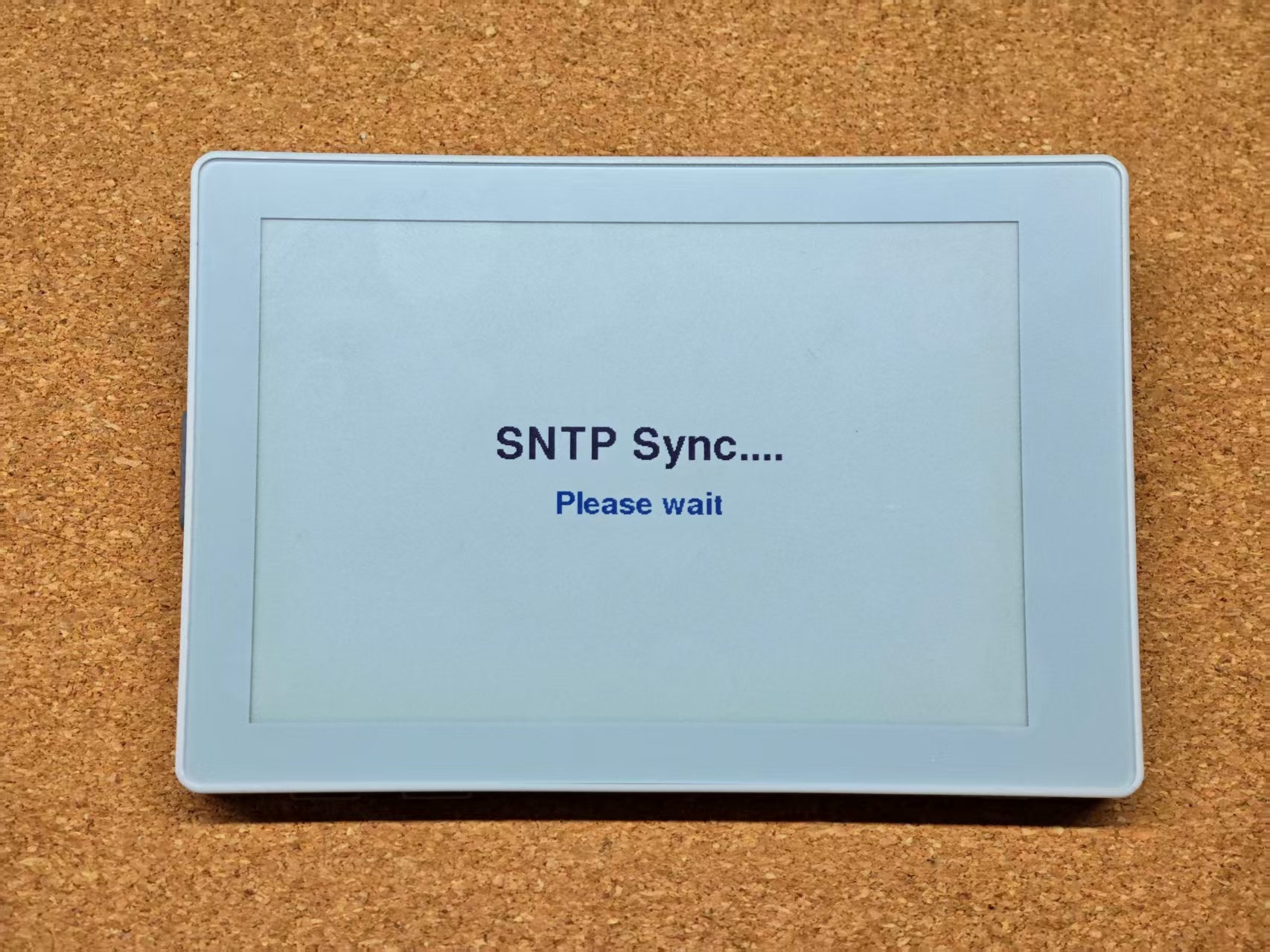

static void drawSyncScreen()
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(WHITE);
canvas.setTextDatum(middle_center);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.setTextColor(BLACK);
canvas.drawString("SNTP Sync....", w / 2, h / 2 - 18);
canvas.setFont(&fonts::FreeSansBold12pt7b);
canvas.setTextColor(BLUE);
canvas.drawString("Please wait", w / 2, h / 2 + 28);
canvas.pushSprite(0, 0);
}
static void drawErrorScreen(const char* message)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(WHITE);
canvas.setTextDatum(middle_center);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextColor(RED);
canvas.drawString(message, w / 2, h / 2);
canvas.pushSprite(0, 0);
}
static bool connectWiFi()
{
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
const uint32_t start_ms = millis();
while (WiFi.status() != WL_CONNECTED) {
if (millis() - start_ms >= WIFI_CONNECT_TIMEOUT_MS) {
return false;
}
delay(250);
}
Serial.printf("WiFi connected, IP: %s\r\n", WiFi.localIP().toString().c_str());
return true;
}
static bool syncRtcFromSntp()
{
Serial.println("SNTP sync start...");
configTzTime(NTP_TIMEZONE, NTP_SERVER1, NTP_SERVER2, NTP_SERVER3);
const uint32_t start_ms = millis();
while (sntp_get_sync_status() != SNTP_SYNC_STATUS_COMPLETED) {
if (millis() - start_ms >= SNTP_SYNC_TIMEOUT_MS) {
return false;
}
delay(500);
}
time_t now = time(nullptr) + 1;
while (now > time(nullptr)) {
delay(10);
}
auto local_tm = localtime(&now);
if (local_tm == nullptr) {
return false;
}
M5.Rtc.setDateTime(local_tm);
Serial.printf("RTC synced from SNTP: %04d/%02d/%02d %02d:%02d:%02d (%s)\r\n",
local_tm->tm_year + 1900,
local_tm->tm_mon + 1,
local_tm->tm_mday,
local_tm->tm_hour,
local_tm->tm_min,
local_tm->tm_sec,
NTP_TIMEZONE);
return true;
}
void setup(void)
{
auto cfg = M5.config();
cfg.clear_display = false;
M5.begin(cfg);
Serial.begin(115200);
M5.Display.setEpdMode(epd_mode_t::epd_fastest);
M5.Display.setRotation(1);
canvas.createSprite(M5.Display.width(), M5.Display.height());
m5pm1_err_t err = pm1.begin(&M5.In_I2C, M5PM1_DEFAULT_ADDR, M5PM1_I2C_FREQ_100K);
pm1_ready = (err == M5PM1_OK);
if (pm1_ready) {
pm1.setLdoEnable(true);
}
drawSyncScreen();
if (!M5.Rtc.isEnabled()) {
Serial.println("RTC not found.");
drawErrorScreen("RTC not found.");
for (;;) {
vTaskDelay(pdMS_TO_TICKS(1000));
}
}
Serial.println("RTC found.");
if (!connectWiFi()) {
Serial.println("WiFi connect failed.");
drawErrorScreen("WiFi failed");
for (;;) {
vTaskDelay(pdMS_TO_TICKS(1000));
}
}
if (!syncRtcFromSntp()) {
Serial.println("SNTP sync failed.");
drawErrorScreen("SNTP failed");
for (;;) {
vTaskDelay(pdMS_TO_TICKS(1000));
}
}
auto dt = M5.Rtc.getDateTime();
Serial.printf("SNTP sync done. RTC: %04d/%02d/%02d (%s) %02d:%02d:%02d\r\n", dt.date.year, dt.date.month,
dt.date.date, wd[dt.date.weekDay], dt.time.hours, dt.time.minutes, dt.time.seconds);
drawScreen(dt);
last_drawn_minute = dt.time.minutes;
}
void loop(void)
{
auto dt = M5.Rtc.getDateTime();
if (dt.time.minutes != last_drawn_minute) {
last_drawn_minute = dt.time.minutes;
Serial.printf("RTC: %04d/%02d/%02d (%s) %02d:%02d:%02d\r\n", dt.date.year, dt.date.month, dt.date.date,
wd[dt.date.weekDay], dt.time.hours, dt.time.minutes, dt.time.seconds);
drawScreen(dt);
}
delay(100);
}
API
RTC クロック部分は M5Unified ライブラリの RTC_Class を使用しています。詳細な API については以下のドキュメントを参照してください：
