Unit ID Arduino Tutorial

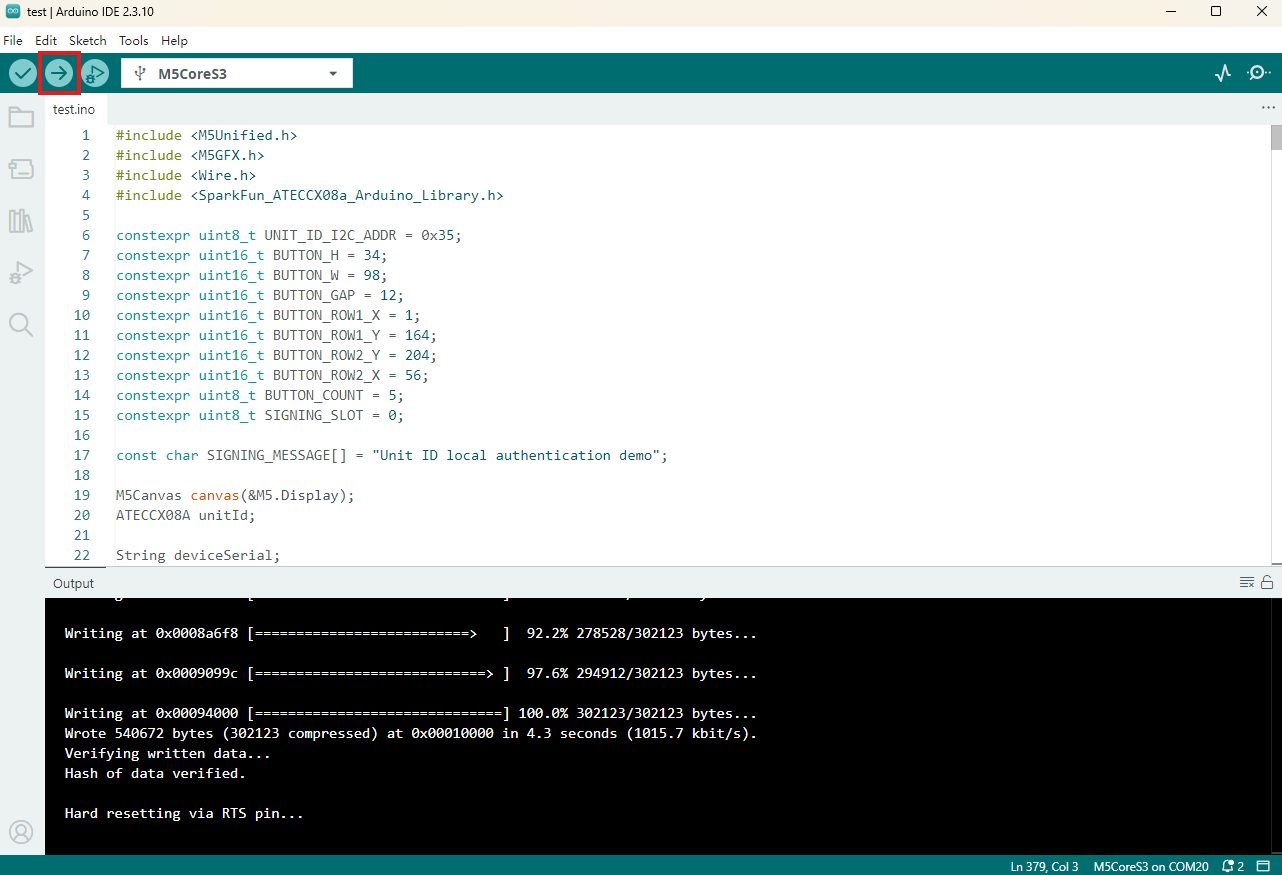

#include <M5Unified.h>
#include <M5GFX.h>
#include <Wire.h>
#include <SparkFun_ATECCX08a_Arduino_Library.h>

constexpr uint8_t UNIT_ID_I2C_ADDR = 0x35;
constexpr uint16_t BUTTON_H = 34;
constexpr uint16_t BUTTON_W = 98;
constexpr uint16_t BUTTON_GAP = 12;
constexpr uint16_t BUTTON_ROW1_X = 1;
constexpr uint16_t BUTTON_ROW1_Y = 164;
constexpr uint16_t BUTTON_ROW2_Y = 204;
constexpr uint16_t BUTTON_ROW2_X = 56;
constexpr uint8_t BUTTON_COUNT = 5;
constexpr uint8_t SIGNING_SLOT = 0;

const char SIGNING_MESSAGE[] = "Unit ID local authentication demo";

M5Canvas canvas(&M5.Display);
ATECCX08A unitId;

String deviceSerial;
String resultTitle = "READY";
String resultLine1 = "Touch a function below";
String resultLine2 = "ATECC608B local control";
String resultData;

bool unitReady = false;
bool configLocked = false;
bool dataLocked = false;
bool slot0Locked = false;
bool publicKeyReady = false;
bool signatureReady = false;

uint8_t publicKey[64] = {};
uint8_t signedDigest[32] = {};
uint8_t signature[64] = {};

String toHex(const uint8_t *data, size_t length)
{
  // Convert binary data to uppercase hexadecimal text.
  String result;
  result.reserve(length * 2);
  for (size_t i = 0; i < length; ++i)
  {
    if (data[i] < 0x10) result += '0';
    result += String(data[i], HEX);
  }
  result.toUpperCase();
  return result;
}

void drawHexLines(const String &value, int y)
{
  // 32 hex characters fit in the 320-pixel display only when the same
  // FreeMonoBold9pt7b font is rendered at a smaller fixed scale.
  canvas.setTextSize(0.8f);
  for (size_t offset = 0; offset < value.length(); offset += 32)
  {
    canvas.setCursor(8, y + static_cast<int>(offset / 32) * 14);
    canvas.print(value.substring(offset, offset + 32));
  }
  canvas.setTextSize(1.0f);
}

bool digestMessage(uint8_t digest[32])
{
  return unitId.sha256(reinterpret_cast<uint8_t *>(const_cast<char *>(SIGNING_MESSAGE)),
                       sizeof(SIGNING_MESSAGE) - 1, digest);
}

void drawButton(uint8_t index, const char *label, uint16_t color)
{
  const bool secondRow = index >= 3;
  const uint8_t rowIndex = secondRow ? index - 3 : index;
  const int x = secondRow ? BUTTON_ROW2_X + rowIndex * (BUTTON_W + BUTTON_GAP)
                          : BUTTON_ROW1_X + rowIndex * (BUTTON_W + BUTTON_GAP);
  const int y = secondRow ? BUTTON_ROW2_Y : BUTTON_ROW1_Y;
  canvas.fillRoundRect(x, y, BUTTON_W, BUTTON_H, 7, color);
  canvas.setTextColor(TFT_BLACK, color);
  canvas.drawCenterString(label, x + BUTTON_W / 2, y + 9);
}

void drawScreen()
{
  // Render the current authentication result and touch controls.
  canvas.fillSprite(TFT_BLACK);
  canvas.setFont(&fonts::FreeMonoBold9pt7b);
  canvas.setTextSize(1);

  canvas.fillRoundRect(90, 1, 140, 22, 6, 0x1082);
  canvas.setTextColor(TFT_CYAN, 0x1082);
  canvas.drawCenterString("Unit ID Test", canvas.width() / 2, 5);
  canvas.setTextColor(TFT_DARKGREY, TFT_BLACK);
  canvas.drawFastHLine(8, 25, 74, TFT_DARKGREY);
  canvas.drawFastHLine(238, 25, 74, TFT_DARKGREY);

  canvas.fillRoundRect(4, 30, canvas.width() - 8, 126, 8, 0x1082);
  canvas.setTextColor(TFT_WHITE, 0x1082);
  canvas.drawString(resultTitle, 10, 39);

  const bool compactSuccess = resultTitle.endsWith("OK") ||
                              resultTitle == "LOCAL VERIFIED";
  canvas.setTextColor(compactSuccess ? TFT_WHITE : TFT_LIGHTGRAY, 0x1082);
  canvas.drawString(resultLine1, 10, 60);
  if (!compactSuccess)
  {
    canvas.drawString(resultLine2, 10, 80);
  }

  if (resultData.length() > 0)
  {
    canvas.setTextColor(TFT_GREEN, 0x1082);
    drawHexLines(resultData, compactSuccess ? 86 : 100);
  }

  drawButton(0, "INFO", TFT_DARKGREY);
  drawButton(1, "RANDOM", TFT_ORANGE);
  drawButton(2, "SHA256", TFT_YELLOW);
  drawButton(3, "SIGN", TFT_GREEN);
  drawButton(4, "VERIFY", TFT_BLUE);

  canvas.pushSprite(0, 0);
}

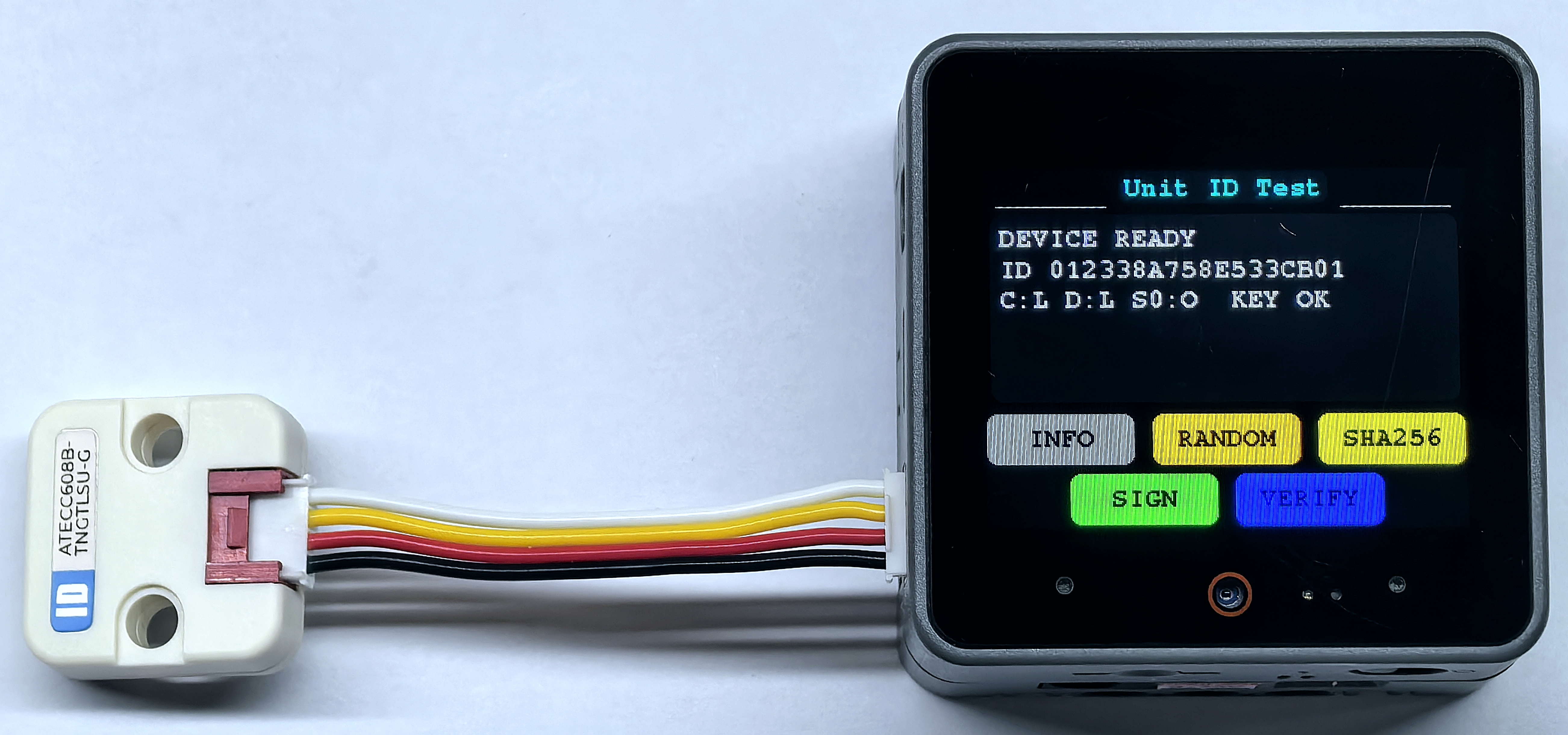

void showDeviceInfo()
{
  // Read the device ID, lock states and public key status.
  resultTitle = unitReady ? "DEVICE READY" : "UNIT NOT FOUND";
  resultData = "";

  if (!unitReady)
  {
    resultLine1 = "Check PORT.A and Unit ID power";
    resultLine2 = "I2C address: 0x35";
    drawScreen();
    return;
  }

  if (!unitId.readConfigZone(false))
  {
    resultTitle = "CONFIG READ FAILED";
    resultLine1 = "Unit ID responded, config did not";
    resultLine2 = "Check ATECC608B state";
    drawScreen();
    return;
  }

  deviceSerial = toHex(unitId.serialNumber, 9);
  configLocked = unitId.configLockStatus;
  dataLocked = unitId.dataOTPLockStatus;
  slot0Locked = unitId.slot0LockStatus;
  publicKeyReady = unitId.generatePublicKey(SIGNING_SLOT, false);
  if (publicKeyReady)
  {
    memcpy(publicKey, unitId.publicKey64Bytes, sizeof(publicKey));
  }

  resultLine1 = String("ID ") + deviceSerial;
  resultLine2 = String("C:") + (configLocked ? "L" : "O") +
                " D:" + (dataLocked ? "L" : "O") +
                " S0:" + (slot0Locked ? "L" : "O") +
                (publicKeyReady ? "  KEY OK" : "  KEY N/A");
  drawScreen();

  Serial.println();
  Serial.println("ATECC608B local Unit ID information");
  Serial.println(String("DEVICE_ID=") + deviceSerial);
  Serial.println(String("CONFIG=") + (configLocked ? "LOCKED" : "OPEN"));
  Serial.println(String("DATA_OTP=") + (dataLocked ? "LOCKED" : "OPEN"));
  Serial.println(String("SLOT0=") + (slot0Locked ? "LOCKED" : "OPEN"));
  Serial.println(String("PUBLIC_KEY=") +
                 (publicKeyReady ? toHex(publicKey, sizeof(publicKey)) : "UNAVAILABLE"));
}

void runRandom()
{
  // Generate 32 bytes using the hardware random number generator.
  uint8_t randomData[32] = {};
  resultTitle = "HARDWARE RANDOM";
  resultLine1 = "ATECC608B hardware RNG";
  resultLine2 = "Generating 32 bytes...";
  resultData = "";
  drawScreen();

  if (!unitReady || !unitId.updateRandom32Bytes(false))
  {
    resultTitle = "RANDOM FAILED";
    resultLine1 = "Check Unit ID connection";
    resultLine2 = "";
  }
  else
  {
    memcpy(randomData, unitId.random32Bytes, sizeof(randomData));
    resultTitle = "RANDOM OK";
    resultLine2 = "32 bytes generated";
    resultData = toHex(randomData, sizeof(randomData));
    Serial.println(String("RANDOM=") + resultData);
  }
  drawScreen();
}

void runSha256()
{
  // Calculate a local SHA-256 digest for the test message.
  uint8_t digest[32] = {};
  resultTitle = "SHA-256";
  resultLine1 = "Local test message";
  resultLine2 = "ATECC608B local digest";
  resultData = "";
  drawScreen();

  if (!unitReady || !digestMessage(digest))
  {
    resultTitle = "SHA256 FAILED";
    resultLine1 = "Check Unit ID connection";
    resultLine2 = "";
  }
  else
  {
    resultTitle = "SHA256 OK";
    resultData = toHex(digest, sizeof(digest));
    Serial.println(String("SHA256=") + resultData);
  }
  drawScreen();
}

void runSignature()
{
  // Create an ECDSA signature in signing slot 0.
  resultTitle = "ECDSA SIGNATURE";
  resultLine1 = "Signing with Slot 0...";
  resultLine2 = "Private key stays in Unit ID";
  resultData = "";
  drawScreen();

  signatureReady = false;
  if (!unitReady || !digestMessage(signedDigest) ||
      !unitId.createSignature(signedDigest, SIGNING_SLOT))
  {
    resultTitle = "SIGNATURE FAILED";
    resultLine1 = "Slot 0 signing unavailable";
    resultLine2 = "Check Unit ID configuration";
  }
  else
  {
    memcpy(signature, unitId.signature, sizeof(signature));
    signatureReady = true;
    resultTitle = "SIGNATURE OK";
    resultLine1 = "ECDSA signature created";
    resultLine2 = "Private key never leaves Unit ID";
    resultData = toHex(signature, sizeof(signature));
    Serial.println(String("SIGNATURE=") + resultData);
  }
  drawScreen();
}

void runLocalVerification()
{
  // Verify the last signature locally with the public key.
  resultTitle = "LOCAL VERIFY";
  resultLine1 = "Verifying last signature...";
  resultLine2 = "No network or server used";
  resultData = "";
  drawScreen();

  if (!unitReady || !signatureReady)
  {
    resultTitle = "VERIFY UNAVAILABLE";
    resultLine1 = "Touch SIGN first";
    resultLine2 = "";
    drawScreen();
    return;
  }

  if (!publicKeyReady)
  {
    publicKeyReady = unitId.generatePublicKey(SIGNING_SLOT, false);
    if (publicKeyReady)
    {
      memcpy(publicKey, unitId.publicKey64Bytes, sizeof(publicKey));
    }
  }

  const bool verified = publicKeyReady &&
                        unitId.verifySignature(signedDigest, signature, publicKey);
  resultTitle = verified ? "LOCAL VERIFIED" : "LOCAL REJECTED";
  resultLine1 = verified ? "Signature is valid" : "Signature check failed";
  resultLine2 = "ATECC608B verified on CoreS3";
  Serial.println(verified ? "LOCAL VERIFY=OK" : "LOCAL VERIFY=FAILED");
  drawScreen();
}

void setup()
{
  // Initialize CoreS3 and its display.
  Serial.begin(115200);

  auto cfg = M5.config();
  cfg.output_power = true;
  cfg.external_imu = false;
  cfg.external_rtc = false;
  M5.begin(cfg);
  M5.Display.setRotation(1);

  canvas.createSprite(M5.Display.width(), M5.Display.height());
  canvas.setFont(&fonts::FreeMonoBold9pt7b);
  canvas.setTextSize(1);

  // Resolve the board-specific PORT.A I2C pins.
  const int sda = M5.getPin(m5::pin_name_t::port_a_sda);
  const int scl = M5.getPin(m5::pin_name_t::port_a_scl);
  if (sda < 0 || scl < 0)
  {
    resultTitle = "PORT.A ERROR";
    resultLine1 = "CoreS3 I2C pins unavailable";
    resultLine2 = "";
    drawScreen();
    return;
  }

  // verifySignature() sends 128 bytes of signature+public-key data plus
  // the ATECC command overhead, so the ESP32 Wire buffer must exceed 128.
  // Reserve enough I2C buffer space for signature verification.
  Wire.setBufferSize(256);
  Wire.begin(sda, scl, 100000U);
  unitReady = unitId.begin(UNIT_ID_I2C_ADDR, Wire, Serial);
  if (unitReady)
  {
    Serial.println("ATECC608B wake-up successful");
  }
  else
  {
    Serial.println("ATECC608B not found; check PORT.A wiring and power");
  }

  showDeviceInfo();
}

void loop()
{
  // Map each completed touch to one of the five actions.
  M5.update();
  const auto touch = M5.Touch.getDetail();
  if (!touch.wasClicked())
  {
    delay(10);
    return;
  }

  int button = -1;
  if (touch.y >= BUTTON_ROW1_Y && touch.y < BUTTON_ROW1_Y + BUTTON_H)
  {
    if (touch.x >= BUTTON_ROW1_X &&
        touch.x < BUTTON_ROW1_X + 3 * BUTTON_W + 2 * BUTTON_GAP)
    {
      button = (touch.x - BUTTON_ROW1_X) / (BUTTON_W + BUTTON_GAP);
    }
  }
  else if (touch.y >= BUTTON_ROW2_Y && touch.y < BUTTON_ROW2_Y + BUTTON_H)
  {
    if (touch.x >= BUTTON_ROW2_X && touch.x < BUTTON_ROW2_X + 2 * BUTTON_W + BUTTON_GAP)
    {
      button = 3 + (touch.x - BUTTON_ROW2_X) / (BUTTON_W + BUTTON_GAP);
    }
  }

  if (button < 0 || button >= BUTTON_COUNT) return;

  switch (button)
  {
    case 0: showDeviceInfo(); break;
    case 1: runRandom(); break;
    case 2: runSha256(); break;
    case 3: runSignature(); break;
    case 4: runLocalVerification(); break;
    default: break;
  }
}
