Module13.2 2Relay Arduino Tutorial

1. Preparation

Environment setup: Refer to the Arduino IDE Getting Started Guide to complete the IDE installation, then install the board manager package and driver required by the development board you are using.
Libraries used:
Hardware used:
- CoreS3
- Module13.2 2Relay

2. Notes

High-voltage contacts

The relay contacts of Module13.2 2Relay support up to AC 250V@5A. Disconnect the power before wiring, disconnecting wires, or replacing a load. Do not operate exposed contacts while they are energized. During actual use, confirm the safe operating range according to the load type, wiring method, and relay specifications.

Pin compatibility

Since the pin configuration differs between hosts, refer to the Pin Compatibility Table in the product documentation before use, and modify the example program according to the actual connection.

3. Example Programs

3.1 Relay Control

cpp
#include <M5Unified.h>
#include <M5GFX.h>
#include <Wire.h>
#include "MODULE_2RELAY.h"

M5Canvas canvas(&M5.Display);
MODULE_2RELAY RELAY;

constexpr uint8_t RELAY_I2C_ADDRESS = MODULE_2RELAY_ADDR;
constexpr uint8_t RELAY_SDA = 12;
constexpr uint8_t RELAY_SCL = 11;

uint8_t stepChannel = 0;

constexpr int16_t TOUCH_BUTTON_Y = 176;
constexpr int16_t TOUCH_BUTTON_HEIGHT = 58;
constexpr int16_t TOUCH_BUTTON_WIDTH = 100;
constexpr int16_t TOUCH_BUTTON_GAP = 6;

int16_t getButtonX(uint8_t index)
{
    return TOUCH_BUTTON_GAP + index * (TOUCH_BUTTON_WIDTH + TOUCH_BUTTON_GAP);
}

int8_t getTouchedButton(int16_t x, int16_t y)
{
    if (y < TOUCH_BUTTON_Y || y >= TOUCH_BUTTON_Y + TOUCH_BUTTON_HEIGHT) {
        return -1;
    }

    for (uint8_t index = 0; index < 3; ++index) {
        const int16_t buttonX = getButtonX(index);
        if (x >= buttonX && x < buttonX + TOUCH_BUTTON_WIDTH) {
            return index;
        }
    }
    return -1;
}

void drawTouchButton(uint8_t index, const char *label)
{
    const int16_t x = getButtonX(index);
    canvas.fillRoundRect(x, TOUCH_BUTTON_Y, TOUCH_BUTTON_WIDTH,
                         TOUCH_BUTTON_HEIGHT, 5, TFT_DARKGREY);
    canvas.drawRoundRect(x, TOUCH_BUTTON_Y, TOUCH_BUTTON_WIDTH,
                         TOUCH_BUTTON_HEIGHT, 5, TFT_ORANGE);
    canvas.drawString(label, x + TOUCH_BUTTON_WIDTH / 2,
                      TOUCH_BUTTON_Y + TOUCH_BUTTON_HEIGHT / 2);
}

void drawStatus(const char *action)
{
    canvas.fillSprite(TFT_BLACK);
    canvas.setTextDatum(MC_DATUM);
    canvas.setTextColor(TFT_WHITE);
    canvas.drawString("Module13.2 2Relay", 160, 12);
    canvas.drawString(action, 160, 32);

    for (uint8_t channel = 0; channel < 2; ++channel) {
        const int16_t y = 50 + 42 * channel;
        const bool state = RELAY.getRelayState(channel);

        if (state) {
            canvas.fillRect(12, y, 136, 32, TFT_GREEN);
        } else {
            canvas.drawRect(12, y, 136, 32, TFT_LIGHTGREY);
        }
        canvas.drawString("CH" + String(channel + 1) +
                              (state ? ": ON" : ": OFF"),
                          80, y + 16);
    }

    canvas.drawString("FW: " + String(RELAY.getVersion()),
                      160, 138);
    drawTouchButton(0, "REVERSE");
    drawTouchButton(1, "STEP");
    drawTouchButton(2, "ALL");
    canvas.pushSprite(0, 0);
}

void drawInitError()
{
    canvas.fillSprite(TFT_BLACK);
    canvas.setTextDatum(MC_DATUM);
    canvas.setTextColor(TFT_RED);
    canvas.drawString("Module13.2 2Relay ERROR", 160, 108);
    canvas.setTextColor(TFT_WHITE);
    canvas.drawString("Check address / wiring", 160, 136);
    canvas.pushSprite(0, 0);
}

void setup()
{
    M5.begin();
    Serial.begin(115200);

    canvas.setColorDepth(8);
    canvas.setFont(&fonts::FreeMonoBold9pt7b);
    canvas.setTextSize(1);
    canvas.createSprite(M5.Display.width(), M5.Display.height());

    // while(!RELAY.begin(&Wire1, RELAY_SDA, RELAY_SCL, RELAY_I2C_ADDRESS)){
    while(!RELAY.begin(&M5.In_I2C, RELAY_I2C_ADDRESS)){
        Serial.println("Module13.2 2Relay INIT ERROR");
        drawInitError();
    }
    Serial.println("Module13.2 2Relay INIT SUCCESS");
    drawStatus("Ready");
}

void loop()
{
    M5.update();
    const auto touch = M5.Touch.getDetail();

    if (touch.wasClicked()) {
        switch (getTouchedButton(touch.x, touch.y)) {
        case 0:
            drawStatus(RELAY.reverseRelay() ? "Reverse" : "Reverse Error");
            break;

        case 1: {
            const bool currentState = RELAY.getRelayState(stepChannel);
            if (RELAY.setRelay(stepChannel, !currentState)) {
                stepChannel = (stepChannel + 1) % 2;
                drawStatus("Step");
            } else {
                drawStatus("Step Error");
            }
            break;
        }

        case 2: {
            const bool channel0 = RELAY.getRelayState(0);
            const bool channel1 = RELAY.getRelayState(1);
            const bool allOn = channel0 && channel1;
            const bool success = RELAY.setAllRelay(!allOn);
            drawStatus(success ? (allOn ? "All OFF" : "All ON")
                               : "All Error");
            break;
        }

        default:
            break;
        }
    }

    delay(20);
}

3.2 Configure the I2C Address

This example uses the CoreS3 touchscreen and setDeviceAddr() to switch the Module13.2 2Relay I2C address between 0x26 and 0x66. At startup, the program checks 0x26 and 0x66 in sequence: when 0x26 is detected, the button target address is 0x66; when 0x66 is detected, the button target address is 0x26. If neither address is detected, an error message is shown on the screen. The code supports both Wire1 and M5.In_I2C initialization methods. As in Section 3.1, select one by commenting out or uncommenting the corresponding begin() call. Tap the SET ADDRESS area on the screen to switch the address.

cpp
#include <M5Unified.h>
#include <M5GFX.h>
#include <Wire.h>
#include "MODULE_2RELAY.h"

MODULE_2RELAY RELAY;

constexpr uint8_t RELAY_ADDRESS_26 = 0x26;
constexpr uint8_t RELAY_ADDRESS_66 = 0x66;
constexpr uint8_t RELAY_SDA = 12;
constexpr uint8_t RELAY_SCL = 11;

constexpr int16_t ADDRESS_BUTTON_X = 60;
constexpr int16_t ADDRESS_BUTTON_Y = 110;
constexpr int16_t ADDRESS_BUTTON_WIDTH = 200;
constexpr int16_t ADDRESS_BUTTON_HEIGHT = 60;

bool moduleReady = false;
uint8_t currentRelayAddress = 0;
uint8_t newRelayAddress = 0;

void drawAddressScreen(const char *result = nullptr)
{
    M5.Display.fillScreen(TFT_BLACK);
    M5.Display.setFont(&fonts::FreeMonoBold9pt7b);
    M5.Display.setTextSize(1);
    M5.Display.setTextDatum(MC_DATUM);
    M5.Display.setTextColor(TFT_WHITE);
    M5.Display.drawString("Module13.2 2Relay", 160, 32);
    const String currentAddress = moduleReady ? String(currentRelayAddress, HEX)
                                              : String("--");
    const String newAddress = moduleReady ? String(newRelayAddress, HEX)
                                          : String("--");
    M5.Display.drawString("Current: 0x" + currentAddress +
                              " -> New: 0x" + newAddress,
                          160, 75);
    M5.Display.drawRoundRect(ADDRESS_BUTTON_X, ADDRESS_BUTTON_Y,
                             ADDRESS_BUTTON_WIDTH, ADDRESS_BUTTON_HEIGHT,
                             6, TFT_ORANGE);
    M5.Display.drawString("SET ADDRESS", 160, 140);

    if (result != nullptr) {
        M5.Display.drawString(result, 160, 205);
    }
}

void setup()
{
    M5.begin();
    Serial.begin(115200);

    M5.Display.setFont(&fonts::FreeMonoBold9pt7b);
    // moduleReady = RELAY.begin(&Wire1, RELAY_SDA, RELAY_SCL, RELAY_ADDRESS_26);
    moduleReady = RELAY.begin(&M5.In_I2C, RELAY_ADDRESS_26);
    if (moduleReady) {
        currentRelayAddress = RELAY_ADDRESS_26;
        newRelayAddress = RELAY_ADDRESS_66;
    } else {
        // moduleReady = RELAY.begin(&Wire1, RELAY_SDA, RELAY_SCL, RELAY_ADDRESS_66);
        moduleReady = RELAY.begin(&M5.In_I2C, RELAY_ADDRESS_66);
        if (moduleReady) {
            currentRelayAddress = RELAY_ADDRESS_66;
            newRelayAddress = RELAY_ADDRESS_26;
        }
    }
    if (moduleReady) {
        Serial.printf("Module13.2 2Relay found at 0x%02X\n",
                      currentRelayAddress);
        drawAddressScreen();
    } else {
        Serial.println("Module13.2 2Relay INIT ERROR");
        drawAddressScreen("Module13.2 2Relay ERROR");
    }
}

void loop()
{
    M5.update();
    const auto touch = M5.Touch.getDetail();

    if (touch.wasClicked() && touch.x >= ADDRESS_BUTTON_X &&
        touch.x < ADDRESS_BUTTON_X + ADDRESS_BUTTON_WIDTH &&
        touch.y >= ADDRESS_BUTTON_Y &&
        touch.y < ADDRESS_BUTTON_Y + ADDRESS_BUTTON_HEIGHT) {
        if (!moduleReady) {
            drawAddressScreen("Module not found");
        } else if (RELAY.setDeviceAddr(newRelayAddress)) {
            currentRelayAddress = newRelayAddress;
            newRelayAddress = (currentRelayAddress == RELAY_ADDRESS_26)
                                  ? RELAY_ADDRESS_66
                                  : RELAY_ADDRESS_26;
            Serial.printf("I2C address updated to 0x%02X\n",
                          currentRelayAddress);
            drawAddressScreen("Success!");
        } else {
            Serial.println("I2C address update failed");
            drawAddressScreen("Failed!");
        }
    }

    delay(20);
}

4. Compile and Upload

1. Enter download mode: Press and hold the CoreS3 reset button (for approximately 2 seconds) until the internal green LED lights up, then release it. After it is released, the green LED turns off, indicating that the device has entered download mode and is ready for flashing.

Note

Different devices may require different procedures to enter download mode before uploading a program. For details, refer to the device program download tutorial list at the bottom of the Arduino IDE Getting Started Guide.

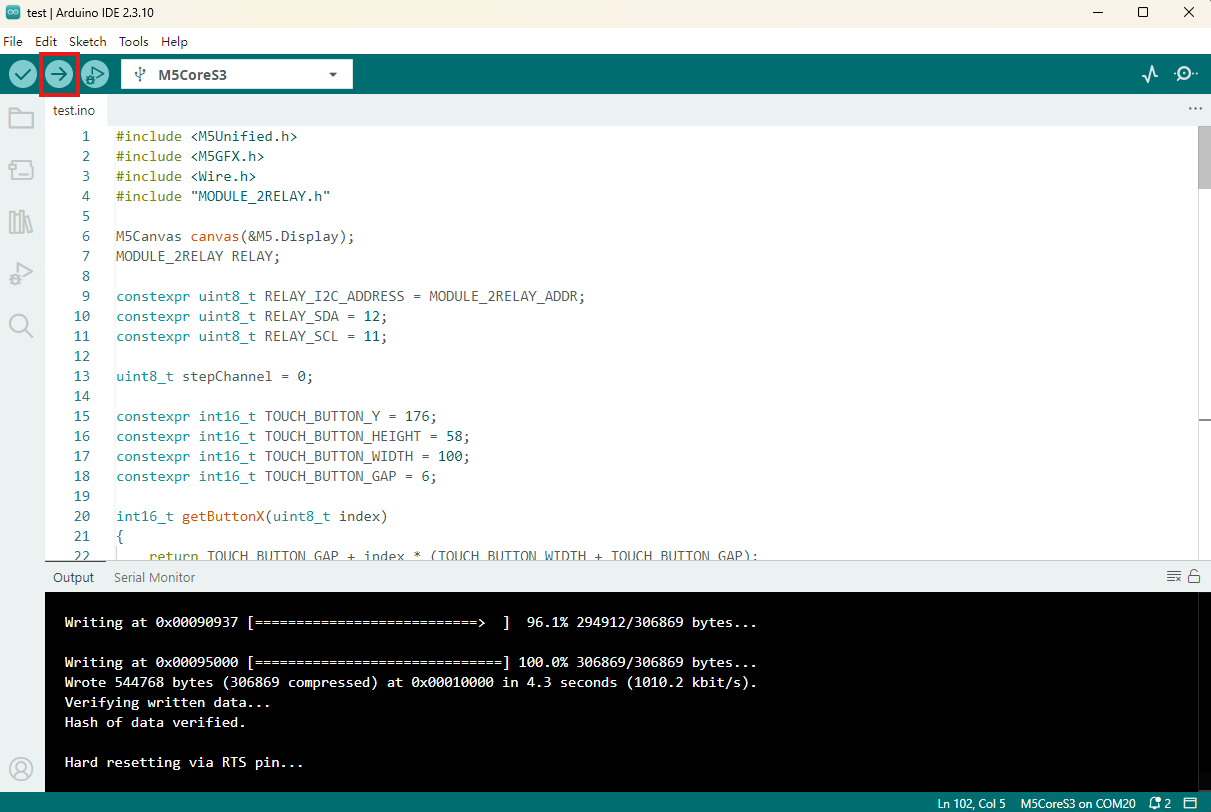

1. Select the device port, click the compile and upload button in the upper-left corner of Arduino IDE, and wait for compilation and uploading to finish.

5. Relay Control

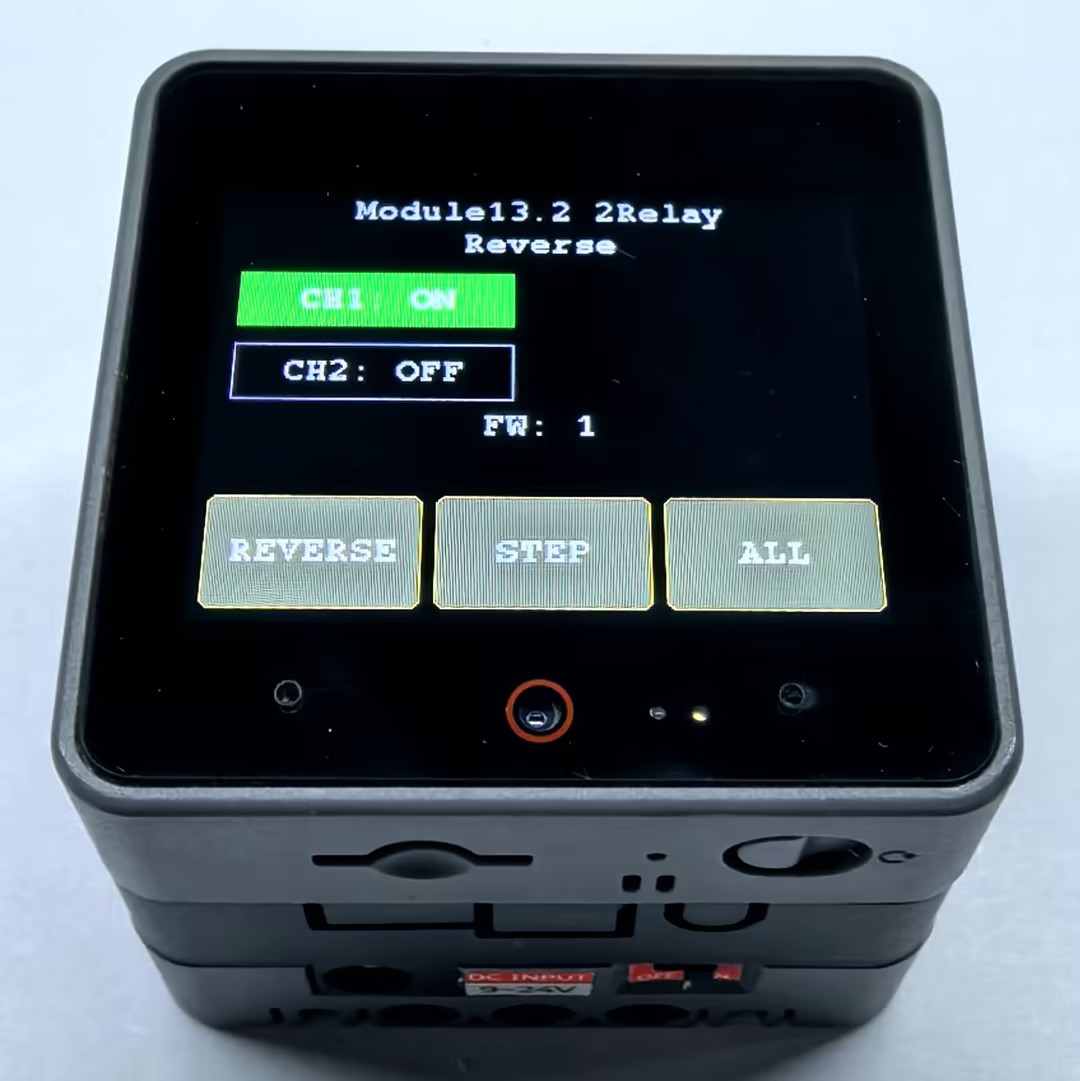

After uploading is complete, restart the CoreS3 to run the program. Tap REVERSE to reverse the states of both relays, STEP to switch the states of the two relays in sequence, or ALL to turn both relays on or off simultaneously.
