PaperMono RTC Real-Time Clock
APIs and example programs for the PaperMono RTC.
Example Programs
Build Requirements
- M5Stack Board Manager version >= 3.3.9
- Board option =
M5PaperMono - M5Unified library version >= 0.2.20
- M5GFX library version >= 0.2.27

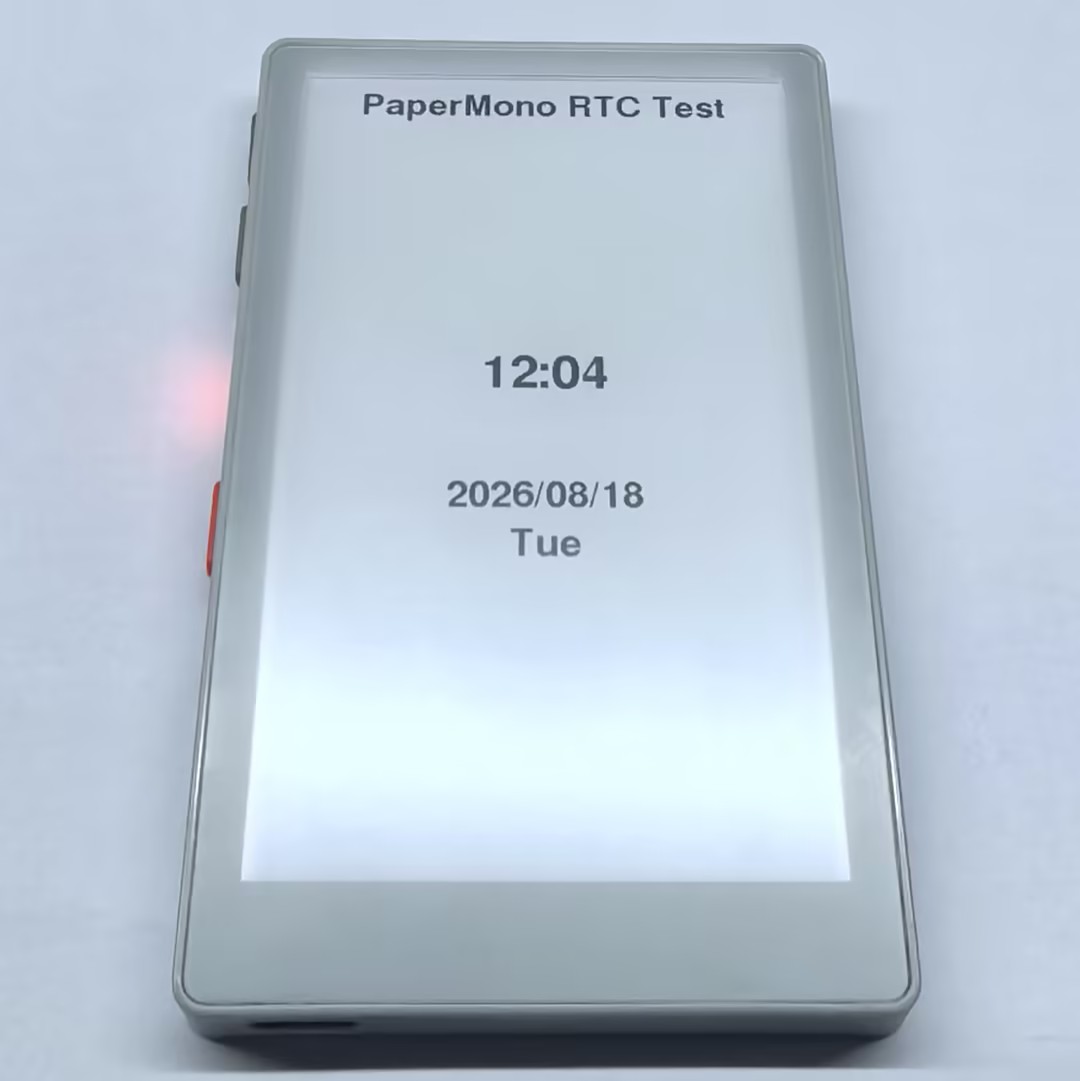

Setting the RTC Time Manually
cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83
#include <M5Unified.h>
M5Canvas canvas(&M5.Display);
static constexpr const char* const wd[7] = {"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"};
static int last_drawn_minute = -1;
void drawScreen(const m5::rtc_datetime_t& dt)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
char dateText[32];
char timeText[16];
snprintf(dateText, sizeof(dateText), "%04d/%02d/%02d", dt.date.year, dt.date.month, dt.date.date);
snprintf(timeText, sizeof(timeText), "%02d:%02d", dt.time.hours, dt.time.minutes);
canvas.fillSprite(TFT_WHITE);
canvas.setTextColor(TFT_BLACK);
canvas.setTextDatum(top_center);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString("PaperMono RTC Test", w / 2, 24);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextSize(1);
canvas.drawString(timeText, w / 2, h / 2 - 80);
canvas.setTextSize(1);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString(dateText, w / 2, h / 2 + 48);
canvas.drawString(wd[dt.date.weekDay], w / 2, h / 2 + 94);
canvas.pushSprite(0, 0);
}
void drawErrorScreen(const char* message)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(TFT_WHITE);
canvas.setTextDatum(middle_center);
canvas.setTextColor(TFT_BLACK);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString("PaperMono RTC Test", w / 2, h / 2 - 48);
canvas.drawString(message, w / 2, h / 2 + 36);
canvas.pushSprite(0, 0);
}
void setup()
{
auto cfg = M5.config();
cfg.clear_display = false;
M5.begin(cfg);
M5.Display.setRotation(0);
M5.Display.setEpdMode(epd_mode_t::epd_text);
canvas.createSprite(M5.Display.width(), M5.Display.height());
if (!M5.Rtc.isEnabled()) {
drawErrorScreen("RTC not found");
while (true) {
delay(1000);
}
}
M5.Rtc.setDateTime({{2026, 8, 18}, {12, 0, 0}});
const auto dt = M5.Rtc.getDateTime();
drawScreen(dt);
last_drawn_minute = dt.time.minutes;
}
void loop()
{
M5.update();
const auto dt = M5.Rtc.getDateTime();
if (dt.time.minutes != last_drawn_minute) {
last_drawn_minute = dt.time.minutes;
drawScreen(dt);
}
delay(100);
}

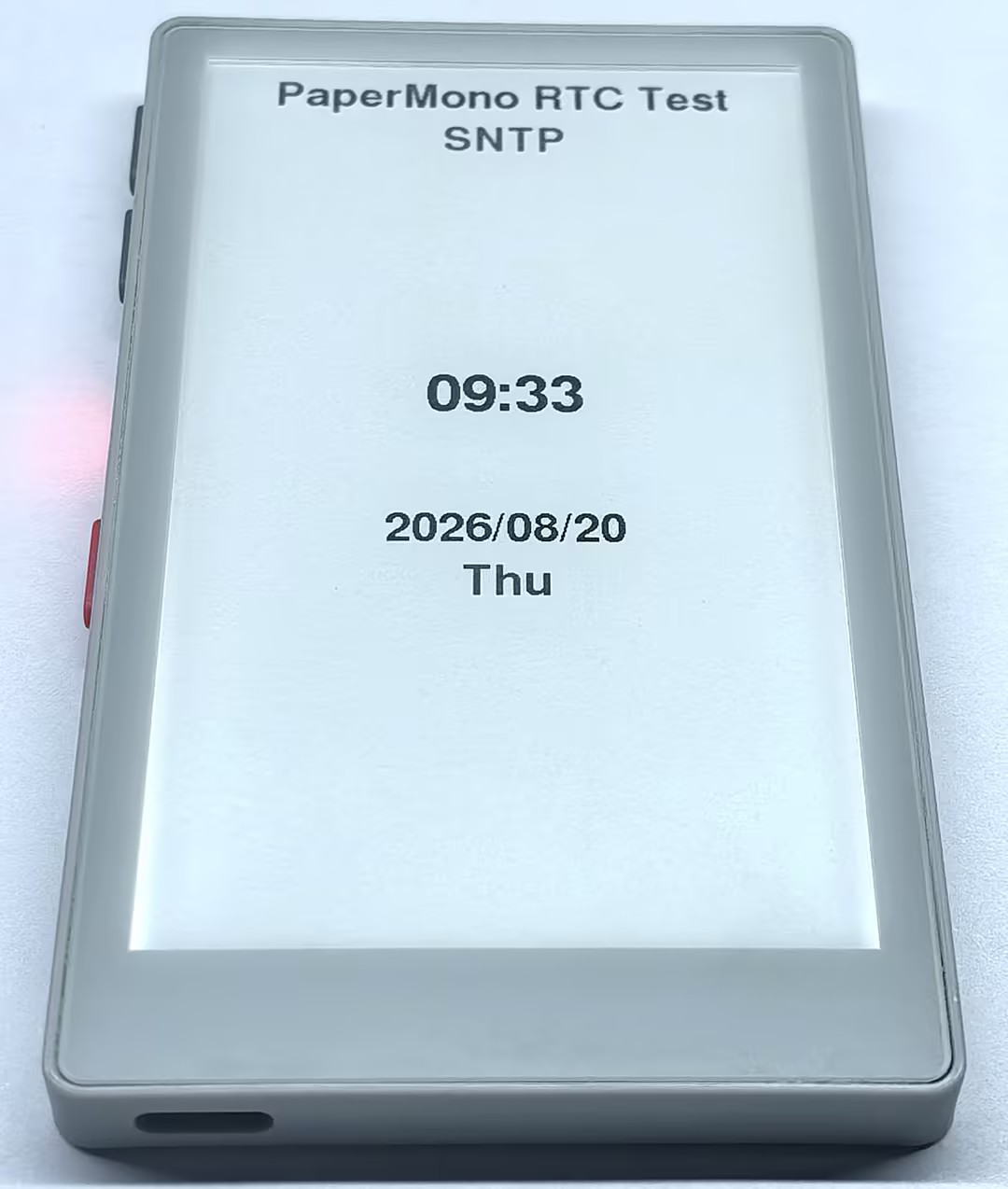

SNTP Network Time
Note
Replace
ssid and password with your actual Wi-Fi network name and password before use.cpp
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185
#include <Arduino.h>
#include <M5GFX.h>
#include <M5Unified.h>
#include <WiFi.h>
#include <esp_sntp.h>
#include <sntp.h>
#define NTP_TIMEZONE "UTC-8"
#define NTP_SERVER1 "0.pool.ntp.org"
#define NTP_SERVER2 "1.pool.ntp.org"
#define NTP_SERVER3 "2.pool.ntp.org"
static constexpr uint32_t WIFI_CONNECT_TIMEOUT_MS = 20000;
static constexpr uint32_t SNTP_SYNC_TIMEOUT_MS = 30000;
M5Canvas canvas(&M5.Display);
const char* ssid = "ssid";
const char* password = "password";
static constexpr const char* const wd[7] = {"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"};
static int last_drawn_minute = -1;
void drawScreen(const m5::rtc_datetime_t& dt)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
char dateText[32];
char timeText[16];
snprintf(dateText, sizeof(dateText), "%04d/%02d/%02d", dt.date.year, dt.date.month, dt.date.date);
snprintf(timeText, sizeof(timeText), "%02d:%02d", dt.time.hours, dt.time.minutes);
canvas.fillSprite(TFT_WHITE);
canvas.setTextColor(TFT_BLACK);
canvas.setTextDatum(top_center);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString("PaperMono RTC Test", w / 2, 24);
canvas.drawString("SNTP", w / 2, 70);
canvas.setFont(&fonts::FreeSansBold24pt7b);
canvas.setTextSize(1);
canvas.drawString(timeText, w / 2, h / 2 - 80);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString(dateText, w / 2, h / 2 + 48);
canvas.drawString(wd[dt.date.weekDay], w / 2, h / 2 + 94);
canvas.pushSprite(0, 0);
}

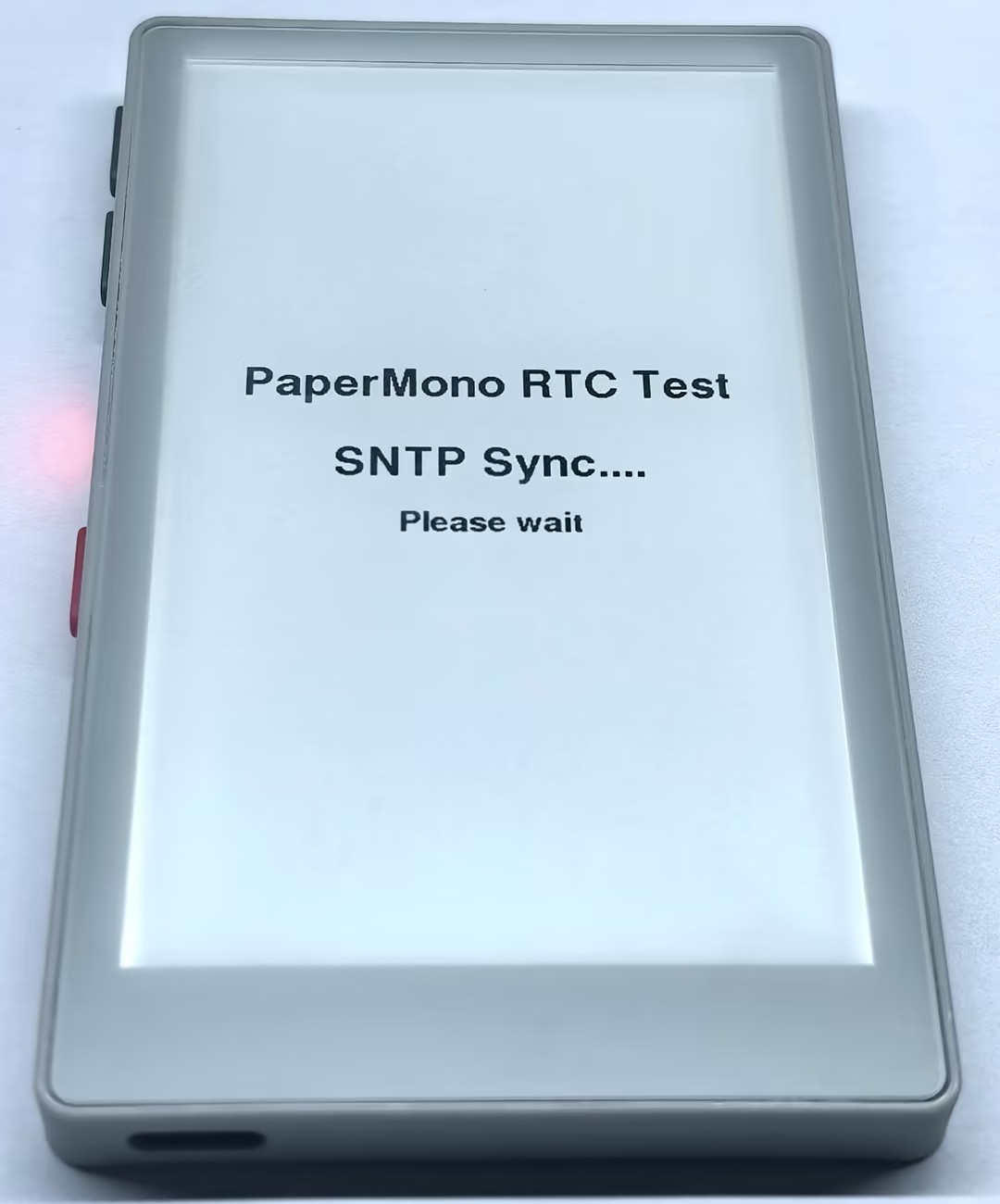

void drawSyncScreen()
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(TFT_WHITE);
canvas.setTextDatum(middle_center);
canvas.setTextColor(TFT_BLACK);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString("PaperMono RTC Test", w / 2, h / 2 - 72);
canvas.drawString("SNTP Sync....", w / 2, h / 2);
canvas.setFont(&fonts::FreeSansBold12pt7b);
canvas.drawString("Please wait", w / 2, h / 2 + 52);
canvas.pushSprite(0, 0);
}
void drawErrorScreen(const char* message)
{
const int w = M5.Display.width();
const int h = M5.Display.height();
canvas.fillSprite(TFT_WHITE);
canvas.setTextDatum(middle_center);
canvas.setTextColor(TFT_BLACK);
canvas.setFont(&fonts::FreeSansBold18pt7b);
canvas.drawString("PaperMono RTC Test", w / 2, h / 2 - 48);
canvas.drawString(message, w / 2, h / 2 + 36);
canvas.pushSprite(0, 0);
}
bool connectWiFi()
{
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
const uint32_t start_ms = millis();
while (WiFi.status() != WL_CONNECTED) {
if (millis() - start_ms >= WIFI_CONNECT_TIMEOUT_MS) {
return false;
}
delay(250);
}
Serial.printf("WiFi connected, IP: %s\r\n", WiFi.localIP().toString().c_str());
return true;
}
bool syncRtcFromSntp()
{
Serial.println("SNTP sync start...");
configTzTime(NTP_TIMEZONE, NTP_SERVER1, NTP_SERVER2, NTP_SERVER3);
const uint32_t start_ms = millis();
while (sntp_get_sync_status() != SNTP_SYNC_STATUS_COMPLETED) {
if (millis() - start_ms >= SNTP_SYNC_TIMEOUT_MS) {
return false;
}
delay(500);
}
time_t now = time(nullptr) + 1;
while (now > time(nullptr)) {
delay(10);
}
auto local_tm = localtime(&now);
if (local_tm == nullptr) {
return false;
}
M5.Rtc.setDateTime(local_tm);
Serial.printf("RTC synced from SNTP: %04d/%02d/%02d %02d:%02d:%02d (%s)\r\n",
local_tm->tm_year + 1900,
local_tm->tm_mon + 1,
local_tm->tm_mday,
local_tm->tm_hour,
local_tm->tm_min,
local_tm->tm_sec,
NTP_TIMEZONE);
return true;
}
void setup()
{
auto cfg = M5.config();
cfg.clear_display = false;
M5.begin(cfg);
Serial.begin(115200);
M5.Display.setRotation(0);
M5.Display.setEpdMode(epd_mode_t::epd_text);
canvas.createSprite(M5.Display.width(), M5.Display.height());
drawSyncScreen();
if (!M5.Rtc.isEnabled()) {
Serial.println("RTC not found.");
drawErrorScreen("RTC not found");
while (true) {
delay(1000);
}
}
if (!connectWiFi()) {
Serial.println("WiFi connect failed.");
drawErrorScreen("WiFi failed");
while (true) {
delay(1000);
}
}
if (!syncRtcFromSntp()) {
Serial.println("SNTP sync failed.");
drawErrorScreen("SNTP failed");
while (true) {
delay(1000);
}
}
const auto dt = M5.Rtc.getDateTime();
drawScreen(dt);
last_drawn_minute = dt.time.minutes;
}
void loop()
{
M5.update();
const auto dt = M5.Rtc.getDateTime();
if (dt.time.minutes != last_drawn_minute) {
last_drawn_minute = dt.time.minutes;
drawScreen(dt);
}
delay(100);
}
API
The PaperMono RTC features use Rtc_Class from the M5Unified library. For more information, refer to the following documentation:
